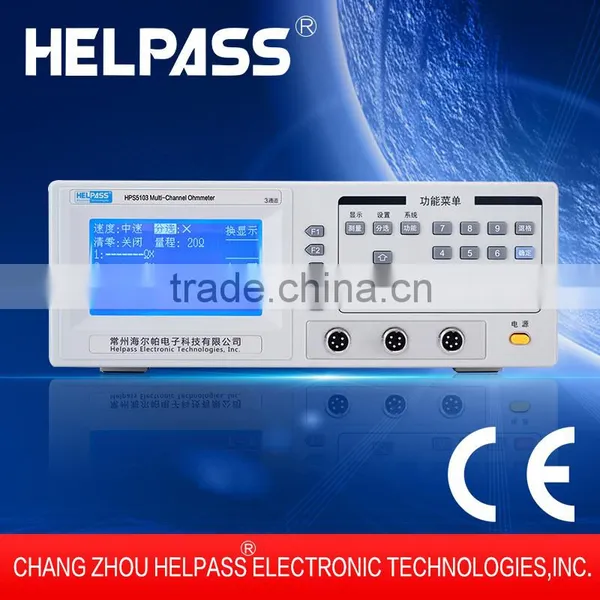

New product multi-channel micro ohm meter display 3 channels
♦ Maximum resistance precision: 0.05%
♦ Set upper and lower limits for each channel independently
♦ The fastest speed can reach 30times/second
♦ 10 ranges at most, manual and automatic mode
♦ File number display and file count function
♦ Optional operation interface in English and Chinese
♦ Switch contact resistance
♦ Enameled resistance,Small diameter coil resistance
♦ Contact resistance
♦ Relay line package and contact resistance
♦ Transformer, inductor, motor, deflection coil winding resistance
♦ Weld contact resistance
♦ Conductor resistance
Model |
HPS5103 |
|
Feature | ||
Displayer |
HD LCD display |
|
Measurement Function | ||
Accuracy |
0.05% |
|
Test Current |
<1A |
|
|
Measurement Speed(time/sec) |
Slow:2 Medium:10 Fast:30 |
|
Trigger delay |
0 -9999mS |
|
Correction |
Short correction |
|
Measurement Terminal |
Four-wire system(2 detection terminals,2 drive terminals),five terminals |
|
Temperature Compensation |
Compensation range:0-80°C,Accuracy:0.2°C(option) |
|
Display Method |
Direct reading,ABS,%,Sorting Results |
|
Sorting and interfaces | ||
Signal Output |
BIN1~BN13,HI,IN,LO |
|
Beep |
OFF,IN,HI,LO(Adjustable Volume) |
|
General Specification | ||
Working Environment |
0°C -40°C ,≤90%RH |
|
Power Supply |
198V -242V(AC),47.5Hz -63Hz |
|
Power Consumption |
≤30 VA |
|
♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ Communication Cable
Technical Service:
♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.
♦ We provide free technical training and offer free equipment maintenance technology.
♦ We can design special test programs and test fixture according to the customer.
