High Accuracy dc Resistance Tester Industrial Thermal Resistance Tester With RS232/ Handler Interface

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai Hangzhou Ningbo etc
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	HELPASS
Model Number	HPS2530	Display Type	Digital Only
Measuring Range	1μΩ -2MΩ	Testing Voltage	220V
Accuracy Class	0.05%	Operating Temperature	0°C -40°C
Dimensions	335 x120x 320mm

Product Description

High accuracy dc resistance tester industrial thermal resistance tester with RS232/ Handler interface

Feature

♦ Dedicated dual way contrast measurement mode

♦ Strong stability and accurate readings

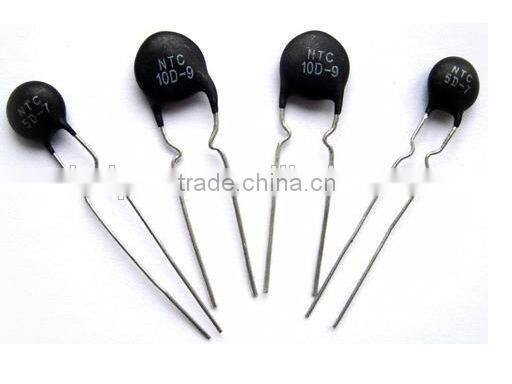

♦ Having a variety of measurement methods for different types of NTC PTC thermistor

♦ For quick measurement calculation value B

♦ Temperature compensation and error correction

♦ Optional operation interface in English and Chinese

Application

♦ PTC Thermistor (Position temperature coefficient thermistor)

♦ NTC Thermistor (Negative temperature coefficient thermistor)

♦ Detection needs temperature compensation resistor element

Specification

Model	HPS2530
Measurement Function
Accuracy		0.05%
Measurement Range		1µΩ -2MΩ
Signal Source Range		1µA -1A
Measurement Models		Normal Mode,Baseline Mode,Dual Mode and Compare Mode
Range Mode		9 Range Auto, Manual
Measurement Speed(time/sec)		Slow:4 Medium:15 Fast:30 Accurate measurement: 2
Trigger Delay		0 -9999mS
Correction		Short Correction
Sorting and interfaces
Signal Output	BIN1~BN13,HI,IN,LO
File Count Range	0-999999(Independent counts each file)
Beep	OFF,IN,HI,LO(Adjustable volume)
Interface	RS-232C/HANDLER/USB Device/ U disk interface(option)/GPIB(option)
General Specification
WorkingEnvironment	0°C -40°C ,≤90%RH
Power Consumption	≤30 VA

Accessories

♦ AC power cord

♦ User's manual

♦ Testing report

♦ Warranty card and certificate

♦ HPS25002 Gold-plated five-terminal Kelvin clip test line

♦ Communication cable

♦ USB to RS232 universal serial line (1.8 meters)

♦ Software CD (PC Data Acquisition Software)

Technical Service:

♦ We have professional engineers who design the test methods and test fixture for the product,debugged test equipment parameter to reach the optimal performance.

♦ We provide free technical training and offer free equipment maintenance technology.

♦ We can design special test programs and test fixture according to the customer.
