Home > Products > Component Parameter measuring Tester Series > HPS2817B Precision LCR Meter LED display ESR Meter

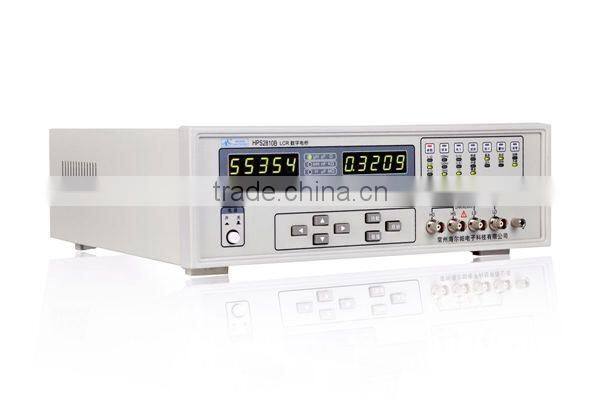

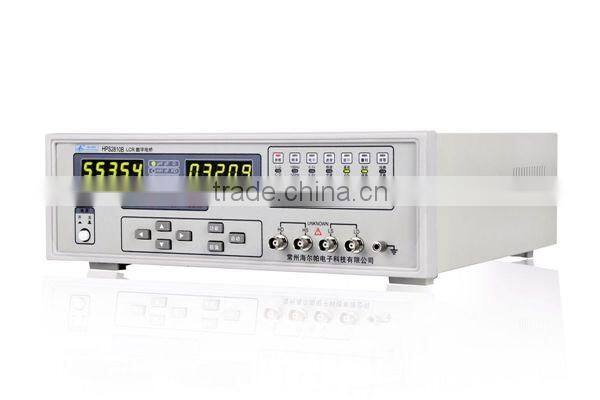

HPS2817B Precision LCR Meter LED display ESR Meter
- 1000 Set / Sets per Month
- Shanghai Hangzhou Ningbo etc
- T/T Credit Card PayPal
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | HELPASS | Model Number: | HPS2817B |
Product Description
HPS2817B Precision LCR Meter LED display ESR Meter
HPS2817B LCR digital bridge is a high frequency bridge, with an advantage of high precision, a wide range of test frequency. HPS2817B LCR Meter is a combination of powerful features and simple operation, not only to meet the quality assurance of the production line, but also to meet the requirements of the purchase inspection and component assessment.
♦ Direct reading,ABS,%
♦ Easy operation
♦ Sorting alarm and qualified, unqualified indicator light
♦ 2 selectable source impedance, easy to be compatible with other LCR meters
♦ Testing level monitor function
♦ Setting parameters protection function
♦ Key locked function
♦ Good stability of reading
♦ Measure the semiconductor element impedance such as capacitors, resistors, inductors, transformers and chip component, network elements.
♦ Measure the inductance and the loss angle of ferrite, magnetic core, amorphous and other magnetic materials.
♦ Measure the impedance of printed circuit boards, relays, switches, cables and battery.
Model | HPS2817B | ||
Features | |||
Displayer | HD LED digital display | ||
Display Digits | 5Digits | ||
Measurement function | |||
Measurement Parameters | L-Q, C-D, R-Q, Z-D,Z-Q | ||
Accuracy | 0.1% | ||
Measurement Speed(time/sec) | Fast: 15,Medium: 8,Slow: 5 | ||
Equivalent Circuit | Series, Parallel | ||
Correction | Open / short circuit Zero clearing | ||
Display Method | Direct reading,ABS,%,Sorting Results | ||
Test signal | |||
Test Frequency | 100Hz,120Hz,1kHz, 10kHz,20kHz,100kHz | ||
Test Level | 0.1 Vrms, 0.3 Vrms,1 Vrms | ||
Output Impedance | 30Ω,100Ω | ||
Measurement Display Range | |||
Z, R | 0.1mΩ -99.999MΩ | ||
C | 0.001pF -99999µF | ||
L | 0.0001µH -9999.9H | ||
Q | 0.0001 -99999 | ||
D | 0.0001 -9.9999 | ||
Δ% | -999.999% -999.999% | ||
Sorting and interfaces | |||
Beep | OFF,IN,HI,LO | ||
Interface | RS-232C interface/HANDLER/USB Device/GPIB(option) | ||
General Specification | |||
Working Environment | 0°C -40°C ,≤90%RH | ||
Power Supply | 198V -242V(AC),47.5Hz -63Hz | ||
Power Consumption | ≤30 VA |
♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ Communication Cable
♦ HPS28001 Four-terminal Kelvin clip test line
Technical Service:
♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.
♦ We provide free technical training and offer free equipment maintenance technology.
♦ We can design special test programs and test fixture according to the customer.
We will arrange to ship your order with 3-15 working days after payment confirmed
1.Fedex/DHL/UPS:Reach most countries takes about 3-5 days
2.EMS:Reach most countries takes about 6-8 days
