Best Price High Accuracy HPS2816B Digital Lcr Meter Test Frequency 50HZ-200kHZ

Name: Best Price High Accuracy HPS2816B Digital Lcr Meter Test Frequency 50HZ-200kHZ
Brand: HELPASS
SKU: 130399377
Availability: InStock

Best Price High Accuracy HPS2816B Digital Lcr Meter Test Frequency 50HZ-200kHZ thumbnail-1

Best Price High Accuracy HPS2816B Digital Lcr Meter Test Frequency 50HZ-200kHZ photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

HELPASS

Model Number:

HPS2816B

Contact Supplier Request Quote Chat Now

Changzhou Helpass Electronic Technologies Inc.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Hangzhou Ningbo etc

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name HELPASS

Model Number HPS2816B

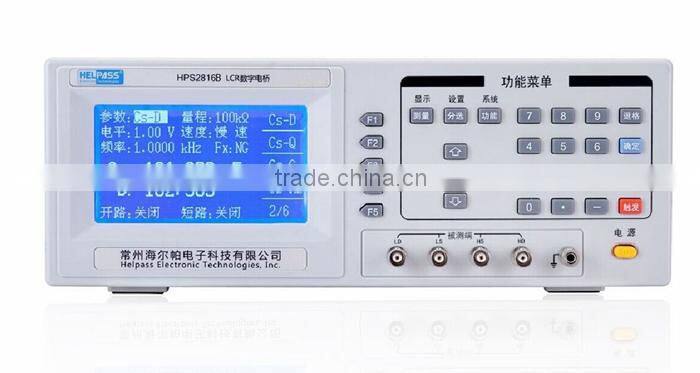

Best price high accuracy HPS2816B digital lcr meter test frequency 50HZ-200kHZ

HPS2816B precision LCR Meter is a new component parameter test instrument launched by Helpass. This product incorporates Helpass mature years of experience in the test field and it is the latest technology in the field of measurement. Powerful test capabilities and superior measurement make HPS2816A achieve the international advanced level; it will give customers extra value at a lower price.

Feature

♦ 240×128 dot-matrix graphic LCD display

♦ Easy operation

♦ Test level monitor function

♦ Accurate load calibration

♦ Key locked function

♦ Automatic LCZ function

Application

♦ Capacitors, resistors, inductors, transformers and chip component, network elements

♦ Ferrite, magnetic core, amorphous and other magnetic materials

♦ Printed circuit boards, relays, switches, cables and battery

Specification

Model	HPS2816B
Features
Displayer	Large LCD
Display Digits	6 digits
Measurement Function
Measurement Parameters	Z, Cs, Cp, Rs (ESR), Rp, Ls, Lp,θ(Deg), θ(Rad), X, G,Y, B,D (tanδ) , Q
Basic Accuracy	0.1%
Measurement Speed(time/sec)	Slow:2 Medium:10 Fast:30
Equivalent Circuit	Series , Parallel
Measurement Terminals	Four-wire system(2 detection terminals, 2 drive terminals),five terminals
Test signal
Test Frequency	50Hz -200kHz,37 test frequency
Test Level	0.01 Vrms -2.0 Vrms (10mV Step)
Output Impedance	30Ω,100Ω
Display Range
Z, Rs (ESR), Rp, X	0.00001Ω -99.9999MΩ
Y, G, B	0.00001µS -999.999 S
Cs, Cp	0.00001pF -999.999mF
Ls, Lp	0.00001µH -99.9999kH
θ(Deg)	-179.999° -179.999°
θ(Rad)	-3.14159 -3.14159
D (tanδ)	0.00001 -9.99999
Q	0.00001 -99999.9
Δ%	-999.999% -999.999%
Sorting and interfaces
Beep	OFF,IN,HI,LO(Adjustable Volume)
Interface	RS-232C interface/HANDLER/USB Device/GPIB(option)
General Specification
Working Environment	0°C -40°C ,≤90%RH
Power Supply	198V -242V(AC),47.5Hz -63Hz
Power Consumption	≤30 VA

Accessories

♦ AC power cord

♦ User's manual

♦ Testing report

♦ Warranty card and certificate

♦ Communication Cable

♦ Software CD (PC Data Acquisition Software)

♦ K-type thermocouple

♦ M3 slotted screwdriver

Technical Service:

♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.

♦ We provide free technical training and offer free equipment maintenance technology.

♦ We can design special test programs and test fixture according to the customer.

Delivery

We will arrange to ship your order with 3-15 working days after payment confirmed

1.Fedex/DHL/UPS:Reach most countries takes about 3-5 days

2.EMS:Reach most countries takes about 6-8 days
