SMD LED Module Injection LED Module SMD 5050 LED Module Light Source

Name: SMD LED Module Injection LED Module SMD 5050 LED Module Light Source
Brand: Ipixel
SKU: 130386403
Availability: InStock

US$ 0.2 - 2 MOQ: 1 Piece

Key Specifications

Model Number:

SJ-6820-50

Chip Material:

Other, Epistar

Emitting Color:

Other, White Bule Red Yellow Green

Shenzhen Centuryled Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Yantian

Delivery Detail:

Delivery time depends on order quantity.

Model Number SJ-6820-50

Chip Material Other, Epistar

Emitting Color Other, White Bule Red Yellow Green

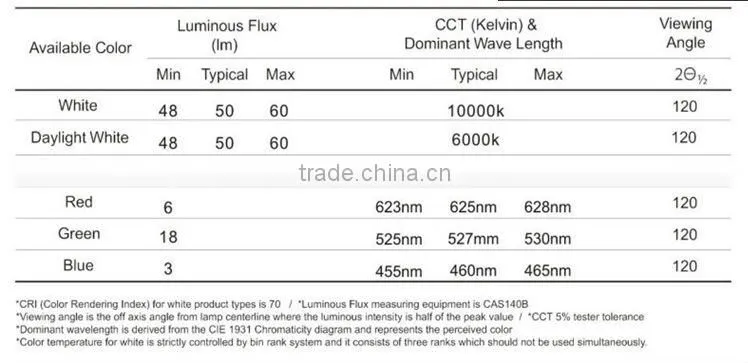

Luminous Intensity 50

Luminous Flux(lm) 50

Optical Attenuation(%) 0.3

Power Other, 0.72W

Power Dissipation 0.3%

Color Rendering Index(Ra) 50

Color Temperature +6500 white

Operating Temperature(℃) -40, 60

Storage Temperature(℃) -50, 80

Place of Origin Guangdong, China

Brand Name Ipixel

Certification CE

Specifications

1.DC12V 0.72W
2.3pcs SMD 5050 epistar
3.18 AWG 8cm space apart
4.5050 LED channel module

SMD LED Module LED Module SMD 5050 LED Module Light Source

Features

1.Replace traditional decorative light bar

2.18 AWG wire at 8cm space apart

3.Environmental friendly – fully recyclable, no mercury or other hazardous materials
4.Durable with lifespan over 50,000 hours

5.IP66, Water-proof protection

6.Easy installation (two options: screw fixed, or 3M double side adhesive tape)

Specifications

Products Name	smd5050 injection led module
Model NO.	SJ-6820-50
Power Consumption	0.72W
Work Voltage	DC12V
Beam Angle	≥140
LED Quantity	3pcs SMD5050 Epistar
Color	White,Red,Green,Yellow,Blue and etc

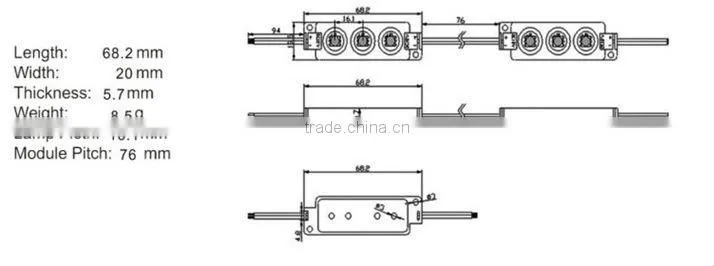

Dimension	*68mm(L)19mm(W)7mm(H)*
Waterproof Grade	IP66
Work Temperature	-40-60°C
Life-span	50,000hrs
Certificate	CE&RoHS
Warranty	2years
