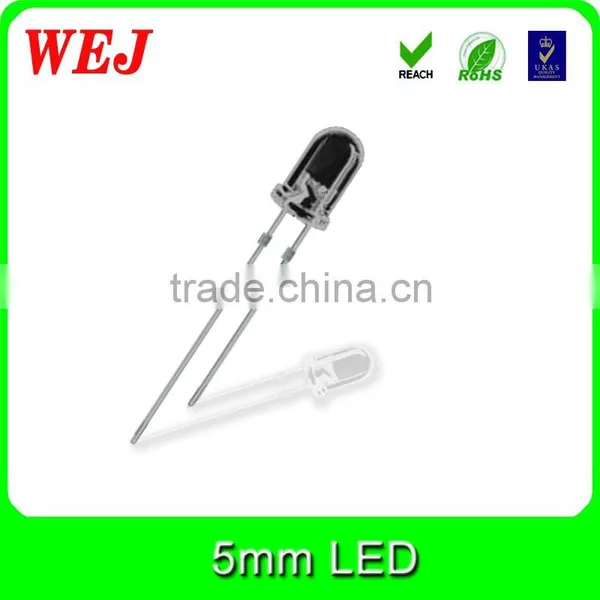

5mm 0.1W 7000-8500K 5MM WHITE Through hole led
why you choose us?
A we have over 10 years experience on leds.
B we have professional and expert engineer team.
C we can offer free samples to you.
D we have good capacity.
E we offer factory price to you.
Parameter |
Symbol |
Value |
Unit |
|
Power dissipation
|
Pd |
120 |
mW |
|
Forward Current (DC)
|
IF |
30 |
mA |
|
Peak Forward Current(1)
|
Ifp |
100 |
mA |
|
Reverse Voltage
|
VR |
5.0 |
V |
|
Electro-Static-Discharge
|
ESD |
1000 |
V |
|
Operating Temperature
|
Topr |
-25to+85 |
℃ |
|
Storage Temperature
|
Tstg |
-40to+100 |
℃ |
|
Lead Solder Temperature(2)
|
Tsol |
260 |
℃ |
Parameter |
Symbol
|
Condition
|
Value |
Unit |
||
Min. |
Typ. |
Max. |
||||
|
Forward voltage
|
Vf |
If=20mA |
3.0 |
3.2 |
3.4 |
v |
|
Luminous intensity
|
Iv |
If=20mA |
3000 |
5000 |
8000 |
mcd |
Peak Wavelength |
X |
If=20mA |
--- |
0.30 |
--- |
nm |
Dominant Wavelength |
Y |
If=20mA |
--- |
0.30 |
--- |
nm |
Color Temperature |
TC |
If=20mA |
7000-8500 |
K |
||
|
pectral Line half-width
|
Δλ |
If=20mA |
--- |
25 |
--- |
nm |

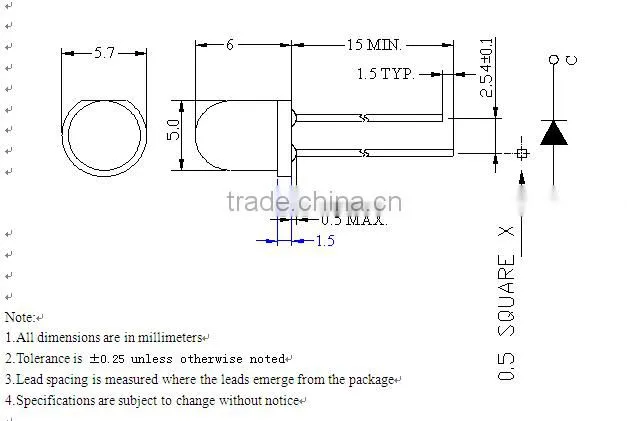

dimension
Test items and result
Test Item |
Standard Test Method |
Test Conditions |
Note |
Number of Damaged |
Resitance to Soldering Heat (wave Soldering) |
JEITA ED-4701 300 301 |
Tsld=260℃, 10sec. (Pre treatment 30℃,70%,168hrs) |
2 times |
0/50 |
|
Solderability (wave Soldering) |
JEITA ED-4701 300 303 |
Tsld=215±5℃, 3sec. (Leader Solder) |
1time over 95% |
0/50 |
Thermal Shock |
JEITA ED-4701 300 307 |
-40℃~100℃ 5min. 5min. |
100cycles |
0/50 |
Temperature Cycle |
JEITA ED-4701 100 105 |
-40℃~25℃~100℃~25℃ 30min. 5min. 30min. 5min. |
100cycles |
0/50 |
Moisture Resistance Cycle |
JEITA ED-4701 200 203 |
25℃~65℃~-10℃ 90%RH 24hrs./1cycle |
10 cycles |
0/50 |
High Temperature Storage |
JEITA ED-4701 200 201 |
Ta=100℃ |
1000 hrs |
0/50 |
|
High Temperature High Humidity Storage |
JEITA ED-4701 100 103 |
Ta=60℃, 90%RH |
1000 hrs |
0/50 |
Low Temperature Storage |
JEITA ED-4701 200 202 |
Ta=-40℃ |
1000 hrs |
0/50 |
Steady State Operating Life |
|
Ta=25℃, IF=20MA |
1000 hrs |
0/50 |
Steady State Operating Life of High Temperature |
|
Ta=85℃, IF=20mA |
1000 hrs |
0/50 |
Steady State Operating Life of High Humidity Heat |
|
60℃, 90%RH, IF=15mA |
500 hrs |
0/50 |
Steady State Operating Life of Low Temperature |
|
Ta=-30℃, IF=20MA |
1000 hrs |
0/50 |
Drop |
|
H=75cm |
3 cycles |
0/50 |
packaging
1,500pcs/bag; anti-static electricity
2,0.25kgs/K
shipping
we can find superior forwarder for you if you need.
we will delivery in 5-10 days after payment.
you can choose:

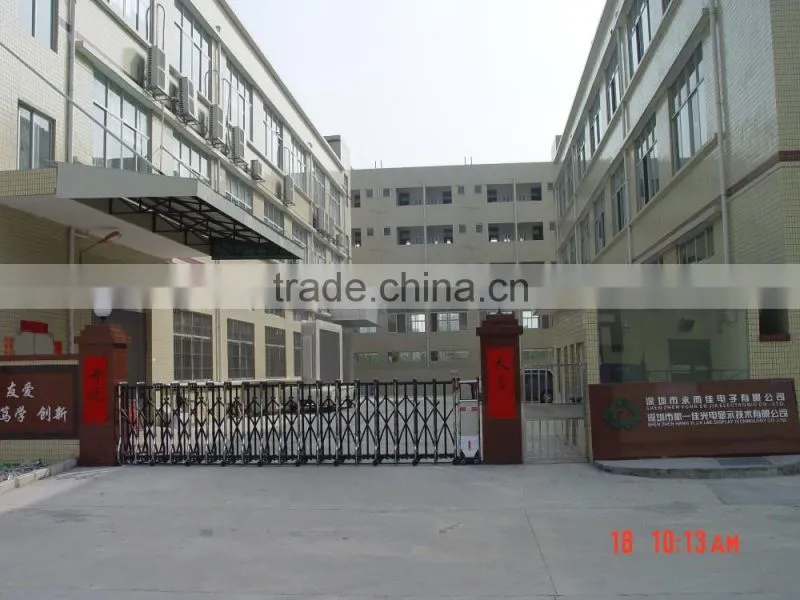

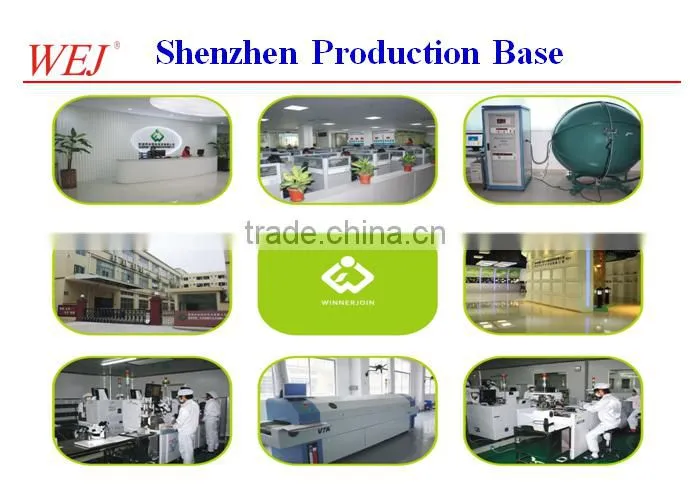

About us
