Help CenterHydraulic Swing Beam Shear Machine QC12Y-20x3200
Related Products
-
3-WE67K-500-6000(DA56) Electro-hydraulic Synchronous CNC Bending Machine Three-machine InteractionUS$ 100 - 100,000MOQ: 1 Set -
WE67K-500/8000(DA52) CNC Sheet Metal Bending MachineUS$ 93,000 - 110,000MOQ: 1 Set
-
YZW32-500T Four-Column Type Hydraulic PressUS$ 30,000 - 60,000MOQ: 1 Set
-
W11STNC-45*2500 Upper Roller Universal Rolling MachineUS$ 50,000 - 90,000MOQ: 1 Set
-
WE67K-100/3200(DA41) CNC Sheet Metal Bending MachineUS$ 25,000 - 35,000MOQ: 1 Set
Specifications
nvenient operation2.reliable performance
3.beautiful appearance
4.best price and good after-sale service.
Performance:
1.steel plate welded construction,hydraulic drive,nitrogen cylinder return;
2.convenient operation,reliable performance and beautiful appearance;
3.blade gap adjustment has the instruction board to display.the adjustment is convenient and quick;
4.it has the lighting device and can adjust the travel volume of the up shaft to any extent;
ing aera has the fence type personal safety protection devices;
6.back gauge size and cutting times both have the digital display device.
| NO | ITEM | DATA | UNIT |
| 1 | max thickness of cutting plate | 20(Q235) | mm |
| 2 | max width of cutting plate | 3200 | mm |
| 3 | cutting strength | 450 | n/mm2 |
| 4 | cutting angle | 2°30' |
|
| 5 | length of blade | 2600 | mm |
| 6 | number of stroke | 7 | min-1 |
| 7 | the height of working table | 960 | mm |
| 8 | back gauge motor | 0.55 | kw |
| 9 | main motor | 30 | kw |
| 10 | gear pump | 63MCY14-1B |
Packing details: Wrapped by plastic films and fixed by steel wires in the Containers
Delivery time: 30 days
More types that we supply
Our company, founded in 1971, is a professional manufacturer of hydraulic press.This picture shows our office and workshop.It is located in 31# Haifang Road, Development Zone Haian, Nantong,Jiangsu, P.R.China

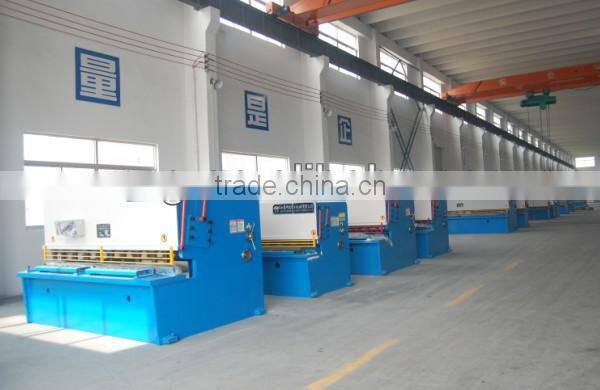

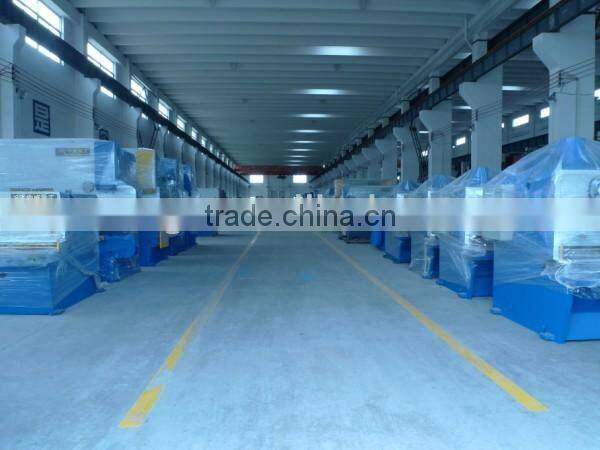

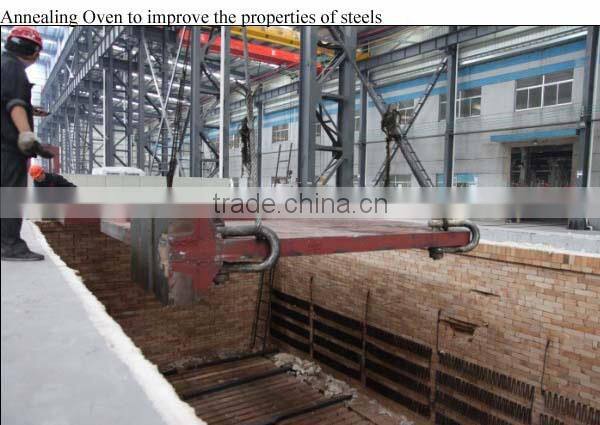

The following shows our production capacity:
The certification we achieved:
foreign customers' visitting:
