Specifications
nvenient operation2.reliable performance
3.beautiful appearance
4.best price and good after-sale service.
Performance:
1.steel plate welded construction,hydraulic drive,nitrogen cylinder return;
2.convenient operation,reliable performance and beautiful appearance;
3.blade gap adjustment has the instruction board to display.the adjustment is convenient and quick;
4.it has the lighting device and can adjust the travel volume of the up shaft to any extent;
ing aera has the fence type personal safety protection devices;
6.back gauge size and cutting times both have the digital display device.
| NO | ITEM | DATA | UNIT |
| 1 | max thickness of cutting plate | 10(Q235) | mm |
| 2 | max width of cutting plate | 3200 | mm |
| 3 | cutting strength | 450 | n/mm2 |
| 4 | cutting angle | 1°30′ |
|
| 5 | length of blade | 3300 | mm |
| 6 | number of stroke | 10 | min-1 |
| 7 | the height of working table | 800 | mm |
| 8 | back gauge motor | 0.55 | kw |
| 9 | main motor | 15 | kw |
| 10 | gear pump | 25MCY14-1B |
Packing details: Wrapped by plastic films and fixed by steel wires in the Containers
Delivery time: 30 days
More types that we supply
Our company, founded in 1971, is a professional manufacturer of hydraulic press.This picture shows our office and workshop.It is located in 31# Haifang Road, Development Zone Haian, Nantong,Jiangsu, P.R.China

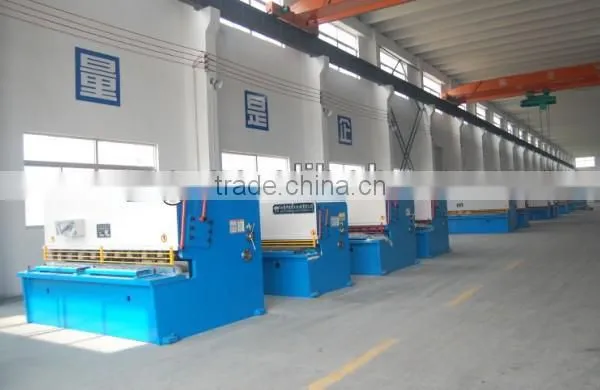

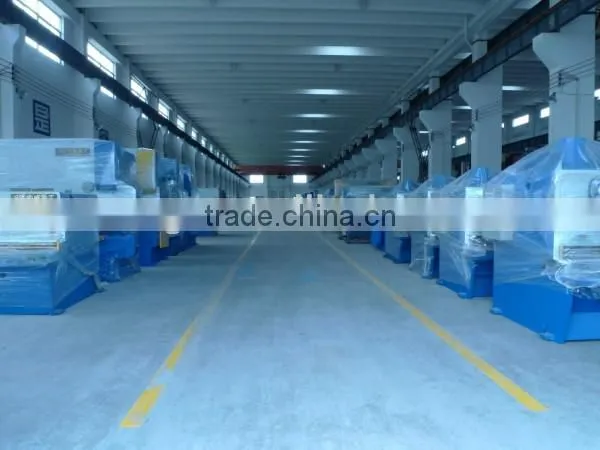

The following shows our production capacity:
The certification we achieved:
foreign customers' visitting:
