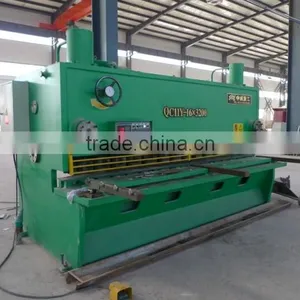

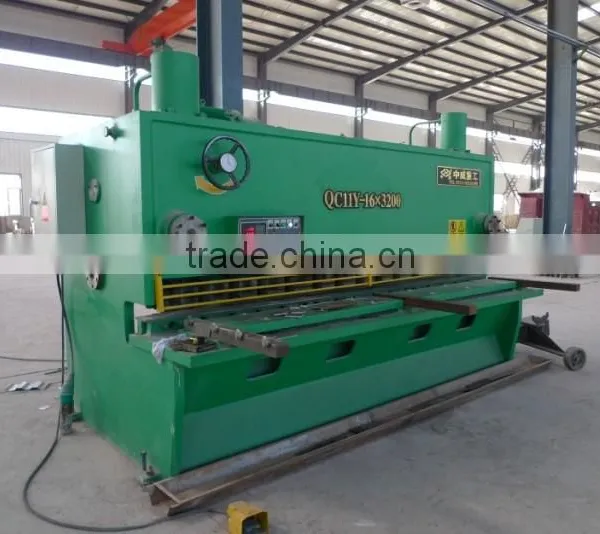

QC11Y-16*3200 Hydraulic Guillotine Shearing Machine

Name: QC11Y-16*3200 Hydraulic Guillotine Shearing Machine
Brand: Zhongwei
SKU: 130380049

US$ 100 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Zhongwei

Jiangsu Zhongwei Heavy Industry Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name Zhongwei

Model Number QC11Y-16*3200

Voltage 380V/50HZ/3PH

Rated Power 22KW

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Specifications

The machine is with good quality,best price and good after-sale service.

The frame and the blade's are both welded construction ,vibration to eliminate stress with good precision.

Adopting rolling guiding way with three point support,cutting precision could be maintained well good cutting quality.

Rectangular blade and the four blades edges can all be used.The life of the blade is lone.

The portable and prompt adjustment of the blades gap and value of gap are indicated by digital,convenient and fast.

The shearing angle can be adjusted,to reduce the distortion.

No	Name		Data	Unit	Remarks
1	Max thickness of cutting plate		16	mm
2	Max width of cutting plate		3200	mm
3	Strength of cutting plate		450	N/mm2
4	Cutting angle		0.5-2.5°
5	Number of stroke		8-15	min-1
6	The distance of two columns		3430	mm
7	Length of blade		3300	mm
8	The height of working table		900	mm
9	Main motor	Type	Y180L-4/B35
		Power	22	kW
		Speed	1460	r/min
10	Back gauge motor	Type	BWDO-43-0.37
		power	0.37	kW
		Speed	1440	r/min
11	pump	Type	NT4-G50F
		Speed	50	L / min
		Pressure	25	MPa
