12mm Pixel Point Programmable LED

Specifications

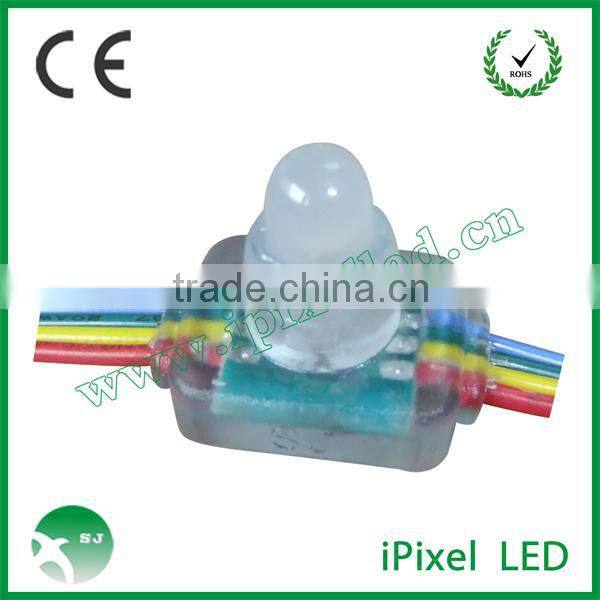

12mm pixel point programmable LED

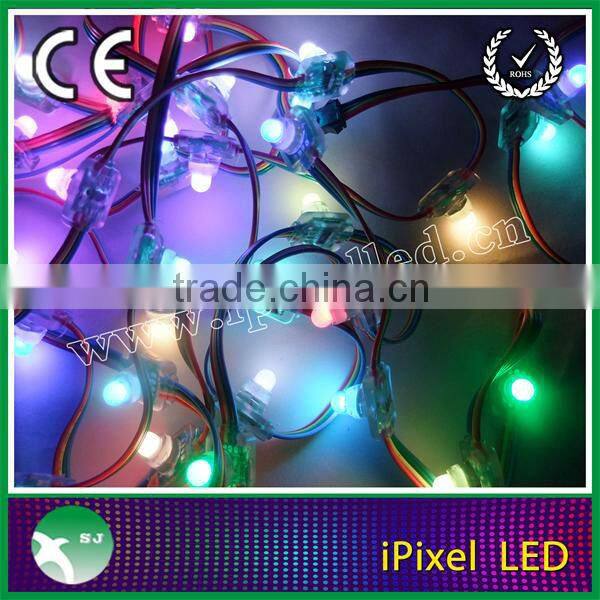

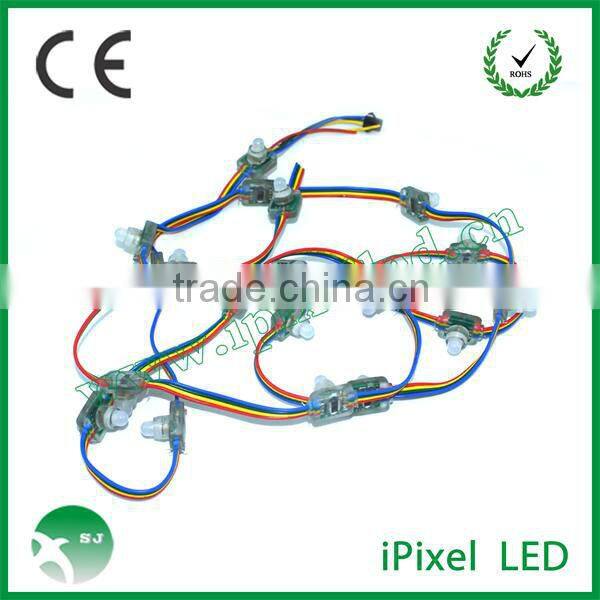

Let there be light(s)!This festive string of addressable RGB LEDs can add color to indoor or outdoor displays.Much like our addressable LED strips,this chain of lights is composed of 20 individually sealed 10mm RGB LEDs and drivers.The driver for this chain is our old friend,the WS-2801 constant current LED driver.The WS2801 is a common,well-supported driver and example code is available for various microcontrollers.The 2-wire control scheme allows you to control the entire chain over only two GPIOs and because data cascades across the drivers, you can chain as many of these together as you can power !

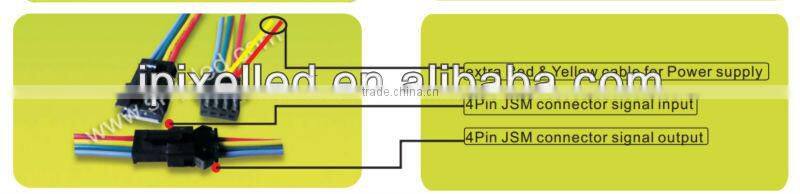

The chain is about 7 feet long with 3" of ribbon cable between each light.It's terminated on either side with a locking 3-pin connector, one male and one female,for ground,data and clock connections.The ground and power also broken out be bare wire leads on either end.The LEDs mount snugly into a 7/16" hole .

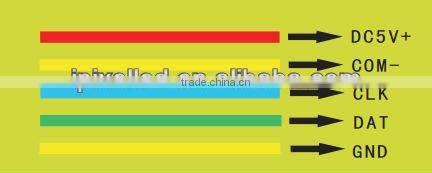

Note:there are no labels on the wires.You can look at the example code or hook it up as follows:red(5v),yellow(GND),green(DAT),blue(CLK).There is a black arrow on the underside of the LEDs which indicates the direction of the strand .

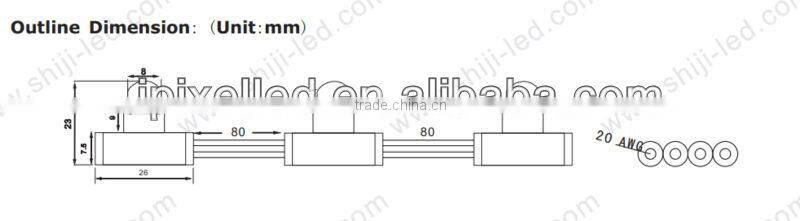

Dimensions:7" long,about 4" between centers

Features:

1.IP66

2.Rated voltage 5vdv

3.ws2801 ic

4.20 pieces per chain

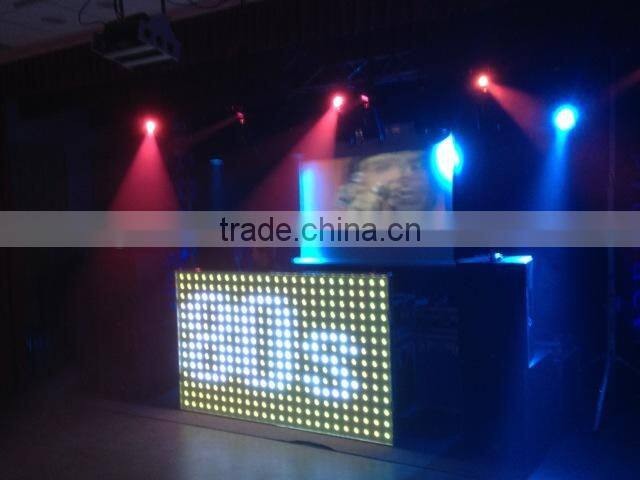

Applications

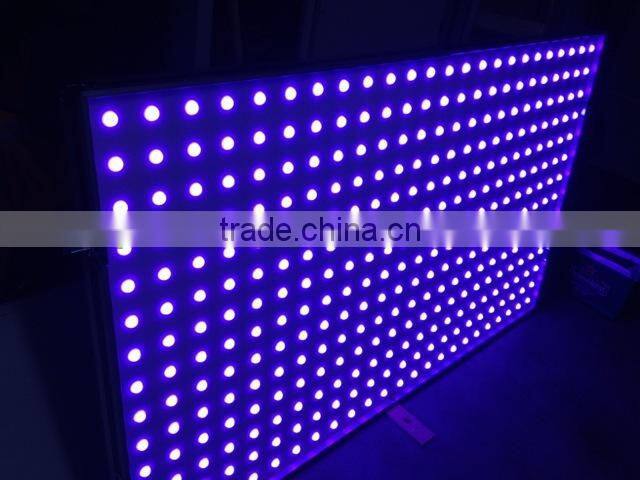

Meets the general lighting
environment such as:

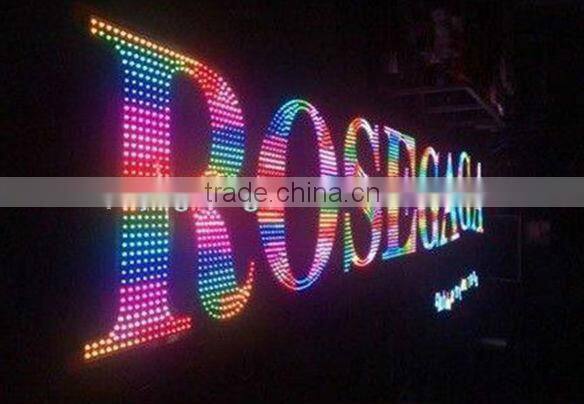

Outdoor advertising
christmas decoration
