Help CenterRound 30mm Rgb 3 Points Led Module Lighting
Related Products
-
12mm Pixel Point Programmable LEDUS$ 0.1 - 1MOQ: 1 Piece -
12mm Pixel Point Programmable LEDUS$ 0.1 - 1MOQ: 1 Piece
-
12mm Pixel Point Programmable LEDUS$ 0.1 - 1MOQ: 1 Piece
-
26mm Round RGB LED Pixel Module Light IC1903US$ 0.1 - 1.5MOQ: 20 Pieces
-
SMD 5050 RGB Full Color LED Pixel Module 26mmUS$ 0.1 - 1.5MOQ: 20 Pieces
Specifications
round 30mm rgb 3 points led module lightingdc12v 0.72w
3 pcs smd5050 rgb led
ws2801 ip66
ce,rohs , 2 years warranty
30mm RGB LED module lighting
Features
RGB LED Pixel module lights are digitally-controllable lights you can set to any color, or animate. Each round 'pixel cluster' contains 3 RGB LEDs and a controller chip soldered to a PCB. The pixel module light is then encased in a translucent white 'dot' to make it weatherproof. These are fairly large pixels but they are easy to mount, with two plastic flanges. They're typically used to make outdoor signs. Compared to our other LED dots, these are much bigger and much brighter, good for larger scale installations.
The LED pixel module light are connected by a 4-conductor cable. +12VDC, ground, data and clock. Data is shifted down from one pixel to the next so that you can easily cut the strand or attach more onto the end.
Each dot is digitally controlled, with an internal 8-bit PWM LED driver (24-bit color for 16 million different shades). The pixel module light must be clocked by a microcontroller, we have an example code linked below that works on an Arduino, it should be simple to adapt it to any other microcontroller.
The LED pixel module light use 3 x 5050 RGB LEDs, and the dot has full 180 degree color spread due to to the translucent nature. All of the LEDs are controlled at once so you cannot have one pixel with the three LEDs different colors. (Color control is per single dot 3-LED pixel only) The total max brightness of all LEDs is about 4000mcd. (Please note: mcd ratings of LEDs are notoriously inflated by most LED sellers, so be extra-skeptical when reviewing LED ratings!)
Sold by the strand, each strand has 20 pixels in series! Each strand has two JST SM 3-pin connectors so you can connect multiple strands in a row, as many as you wish, just watch for how much current they want. The two power wires are brought out separately to make wiring easier, a 2.1mm terminal block adapter is handy here to attach a DC power supply. We have a 12V/5A supply that should be able to drive 2 or more strands (depending on current use). The LEDs are constant-current driven so you'll have even colors through-out the strand as long as you have a stable 12V supply .

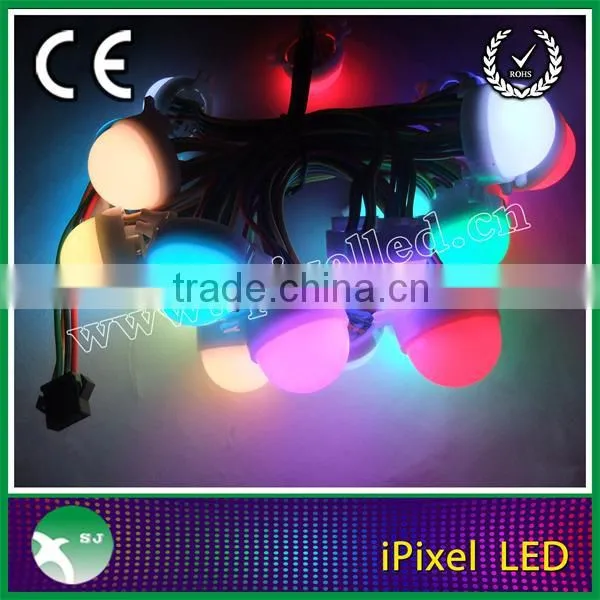

Pictures

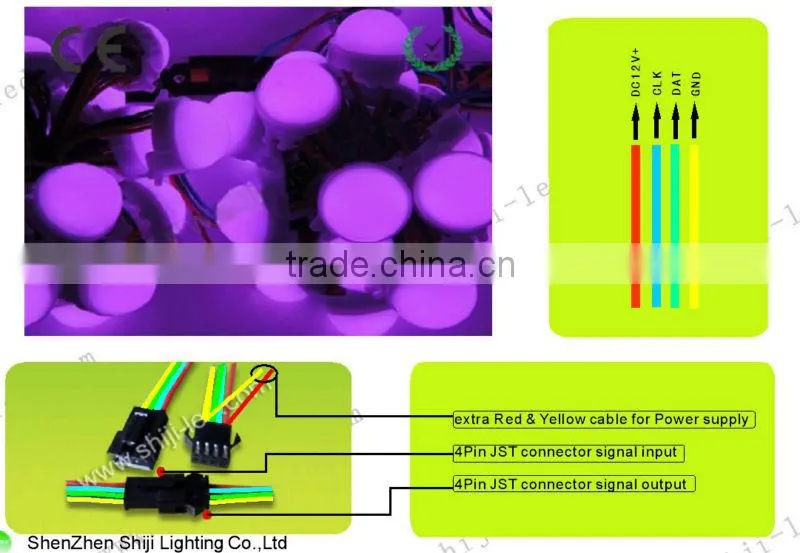

Signal cables define:
Thanks for attention
