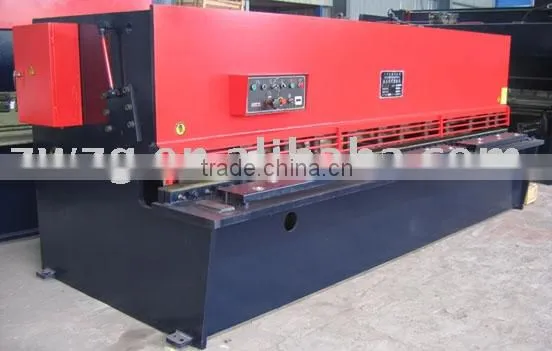

Hydraulic Swing Beam Shear QC12Y-8X4000

Specifications

Plate welded construction; Vibration to eliminate stress; With high strength and good rigidity

• Cutting machine
• Performance:
• The frame is entirely welded with steel plates, vibration to eliminate stress. With high strength and good rigidity.

   Hydraulic drive, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder.With easy operation, reliable performance and nice appearance.

   There is indicator for adjusting the blade clearance, easily operation.

   There are safety fences in the working area to ensure the personal safety

   There are numerical display for cutting number and the length of back gauge..
• Technical data (can be provided as customers request for special model)

• Name	Data	Unit
  Max. shearing thickness	8	mm
  Max. shearing width	4000	mm
  Shearing angel	1º30
  Stroke number	16	Min-1
  Back gauge range	20-800	mm
  Main motor power	22	kw
