12mm Square LED Pixel String RGB 5V 0.3W High Lumen Low Power Consumption

12mm Square LED Pixel String RGB 5V 0.3W High Lumen Low Power Consumption thumbnail-1
12mm Square LED Pixel String RGB 5V 0.3W High Lumen Low Power Consumption photo-1
US$ 0.1 - 1 MOQ: 1 Piece
Key Specifications
Get Latest Price
Model Number:
SJ-2618-ICRGB
Chip Material:
Other, Epistar
Emitting Color:
Other, Tri-Color(Red-Blue-Green), rgb
Contact Supplier Request Quote Chat Now
Shenzhen Centuryled Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number SJ-2618-ICRGB
Chip Material Other, Epistar
Emitting Color Other, Tri-Color(Red-Blue-Green), rgb
Optical Attenuation(%) 0.5
Power Other, 0.3W, 0.72W
Color Rendering Index(Ra) 85
Color Temperature 2800-3200/5500-6500K/7000-9500K
Operating Temperature(℃) -40, 60
Storage Temperature(℃) -30, 50
Place of Origin Guangdong, China
Brand Name SJ
Certification CE

Specifications

1)DC5V,0.3W
2)DMX512&Madrix compatible
3)RGB pixel Light
4)CE&RoHS
5) 4 Pin cable

12mm Square LED Pixel String RGB 5V 0.3W High Lumen Low Power Consumption



Features:



1)programable by software



2)DC5V,0.3W



3)IP66,waterproof protection



4)easy installation(punching 12mm hole on the mental panel)



5)50 pcs per set,8cm wire spacing



Specification:



Model NO.

SJ-2618-ICRGB

Power Consumption

0.3W

Work Voltage

DC5V

Beam Angle

≥120

LED Quantity

1pcs

Color

Full color(ICRGB)

Dimension

26*18*23mm

Waterproof Grade

IP66

Work Temperature

-40-60°C

Life-span

50,000H

Certificate

CE&RoHS

Warranty

2 years



Datasheet:



12mm Square LED Pixel String RGB 5V 0.3W High Lumen Low Power Consumption





Product Images:



12mm Square LED Pixel String RGB 5V 0.3W High Lumen Low Power Consumption

12mm Square LED Pixel String RGB 5V 0.3W High Lumen Low Power Consumption





Applications:



Meets the general lighting environment such as:



1)Outdoor advertising
2) Christmas decoration
3) Night club lighting

4) Amusement flashing sign



Our Project Video:



/watch?v=TDVuXTdM09E&feature=channel&list=UL



/watch?v=gyn39zbeaE4&feature=channel&list=UL





Signal wire define:





12mm Square LED Pixel String RGB 5V 0.3W High Lumen Low Power Consumption



Dimension Drawing(mm):





  12mm Square LED Pixel String RGB 5V 0.3W High Lumen Low Power Consumption



 Packaging:





12mm Square LED Pixel String RGB 5V 0.3W High Lumen Low Power Consumption





suitable controller:



you can choose following controllers to make any animation which you want



 SJ-T-1000S SD off-line controller



12mm Square LED Pixel String RGB 5V 0.3W High Lumen Low Power Consumption





SJ-DMX-U1 DMX controller



12mm Square LED Pixel String RGB 5V 0.3W High Lumen Low Power Consumption

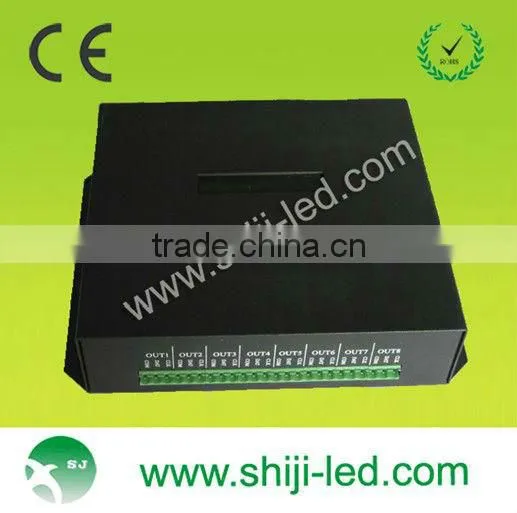

SJ-100K-B SD on-line controller



12mm Square LED Pixel String RGB 5V 0.3W High Lumen Low Power Consumption
