Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | ZHONGWEI |
Model Number: | W11S 100x4000 | Machine Type: | Roller-Bending Machine | Raw Material: | Sheet / Plate Rolling |
Material / Metal Processed: | Carbon Steel | Power: | Hydraulic | Automation: | Automatic |
Extra Services: | End Forming | Certification: | ISO 9001:2000 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
W11S roof roll forming machine1.PLC Control
2.With prebending
3.U,Cone rolling
4.Easy to oper

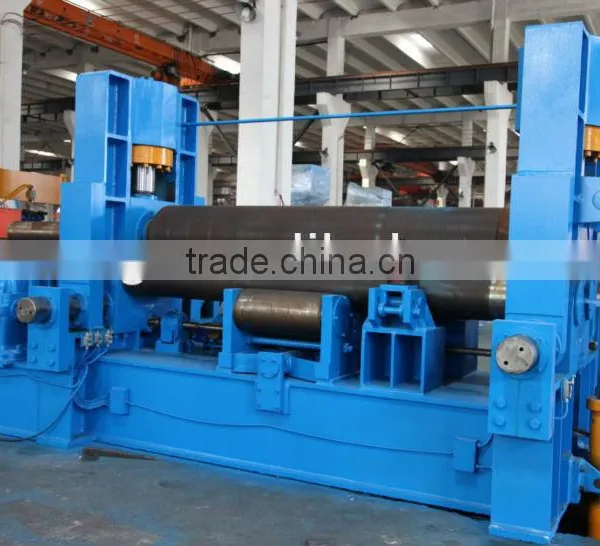

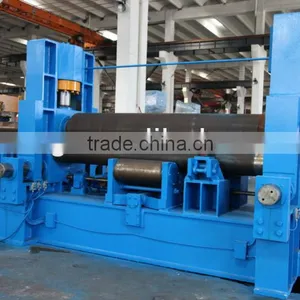

W11S roof roll forming machine
W11s series upper roller universal rolling machine can pre-bending and rolling to proceed the plate, with high rolling precision, no need to use any subsidiary equipment, less investment.
This machine is hydraulic three rollers machine, it used to roll the low carbon steel (such as Q235-B20g20R), and Low alloy steel to cycle shape in normal temperature.
The upper roller can be moved horizontal and level.
When cycle, to bring two lower rollers running through motor and reducer.
Because the standard height of lower roller is unchanged, it is convenience to feeding and operating.
Model | Max.rolling thickness | Max.pre-rolling thickness | PlateWidth | Diameter of upper roller | Main motor power |
(mm) | (mm) | (mm) | (mm) | (kw) | |
W11STNC-12x2000 | 12 | 10 | 2000 | 240 | 5.5 |
W11STNC-16x2000 | 16 | 12 | 2000 | 260 | 7.5 |
W11STNC-16x2500 | 16 | 12 | 2500 | 300 | 15 |
W11STNC-18x3000 | 18 | 14 | 3000 | 350 | 15 |
W11STNC-20x3000 | 20 | 16 | 3000 | 375 | 22 |
W11STNC-25x2500 | 25 | 20 | 2500 | 380 | 22 |
W11STNC-30x2500 | 30 | 25 | 2500 | 410 | 30 |
W11STNC-30x3000 | 30 | 25 | 3000 | 450 | 30 |
W11STNC-32x3000 | 32 | 28 | 3000 | 480 | 37 |
W11STNC-35x2500 | 35 | 30 | 2500 | 460 | 37 |
W11STNC-35x3000 | 35 | 30 | 3000 | 510 | 37 |
W11STNC-40x2500 | 40 | 35 | 2500 | 500 | 45 |
W11STNC-40x3000 | 40 | 35 | 3000 | 540 | 55 |
W11STNC-40x4000 | 40 | 32 | 4000 | 630 | 55 |
W11STNC-45x3000 | 45 | 40 | 3000 | 560 | 55 |
W11STNC-45x4000 | 45 | 40 | 4000 | 610 | 75 |
W11STNC-50x4000 | 50 | 45 | 4000 | 680 | 75 |
W11STNC-55x3000 | 55 | 45 | 3000 | 600 | 75 |
W11STNC-55x4000 | 55 | 50 | 4000 | 730 | 90 |
W11STNC-60x3000 | 60 | 50 | 3000 | 650 | 75 |
W11STNC-60x4000 | 60 | 55 | 4000 | 750 | 90 |
W11STNC-65x4000 | 65 | 60 | 4000 | 780 | 90 |
W11STNC-70x3000 | 70 | 60 | 3000 | 680 | 75 |
W11STNC-70x4000 | 70 | 65 | 4000 | 810 | 90 |
W11STNC-75x3000 | 75 | 65 | 3000 | 720 | 90 |
W11STNC-80x3000 | 80 | 70 | 3000 | 770 | 90 |
W11STNC-80x4000 | 80 | 75 | 4000 | 860 | 90 |
W11STNC-90x3000 | 90 | 80 | 3000 | 780 | 90 |
W11STNC-100x3000 | 100 | 90 | 3000 | 840 | 90 |
W11STNC-100x4000 | 100 | 85 | 4000 | 940 | 110 |
W11STNC-110x4000 | 110 | 95 | 4000 | 960 | 110 |
W11STNC-120x3000 | 120 | 100 | 3000 | 960 | 90 |
W11STNC-130x3000 | 130 | 110 | 3000 | 980 | 110 |
W11STNC-150x3000 | 150 | 120 | 3000 | 990 | 2x75 |
W11STNC-160x3000 | 160 | 130 | 4000 | 1260 | 2x90 |
W11S roof roll forming machine
W11S roof roll forming machine
