W11S 3 roller bender with prebending and competive price

Specifications

W11S 3 roller bender
1.PLC Control
2.With prebending
3.U,Cone rolling
4.Easy to opera

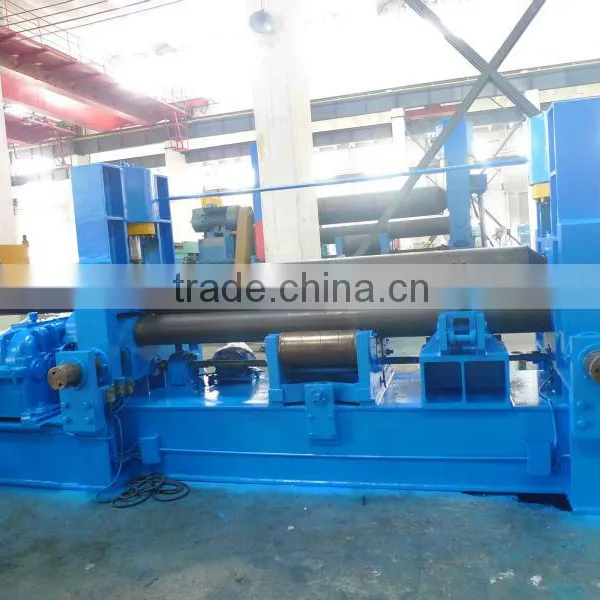

W11S 3 roller bender

W11s series upper roller universal rolling machine can pre-bending and rolling to proceed the plate, with high rolling precision, no need to use any subsidiary equipment, less investment.

This machine is hydraulic three rollers machine, it used to roll the low carbon steel (such as Q235-B20g20R), and Low alloy steel to cycle shape in normal temperature.

The upper roller can be moved horizontal and level.

When cycle, to bring two lower rollers running through motor and reducer.

Because the standard height of lower roller is unchanged, it is convenience to feeding and operating.

Model	Max.rolling  thickness	Max.pre-rolling  thickness	PlateWidth	Diameter of  upper roller	Main  motor power
	(mm)	(mm)	(mm)	(mm)	(kw)
W11STNC-12x2000	12	10	2000	240	5.5
W11STNC-16x2000	16	12	2000	260	7.5
W11STNC-16x2500	16	12	2500	300	15
W11STNC-18x3000	18	14	3000	350	15
W11STNC-20x3000	20	16	3000	375	22
W11STNC-25x2500	25	20	2500	380	22
W11STNC-30x2500	30	25	2500	410	30
W11STNC-30x3000	30	25	3000	450	30
W11STNC-32x3000	32	28	3000	480	37
W11STNC-35x2500	35	30	2500	460	37
W11STNC-35x3000	35	30	3000	510	37
W11STNC-40x2500	40	35	2500	500	45
W11STNC-40x3000	40	35	3000	540	55
W11STNC-40x4000	40	32	4000	630	55
W11STNC-45x3000	45	40	3000	560	55
W11STNC-45x4000	45	40	4000	610	75
W11STNC-50x4000	50	45	4000	680	75
W11STNC-55x3000	55	45	3000	600	75
W11STNC-55x4000	55	50	4000	730	90
W11STNC-60x3000	60	50	3000	650	75
W11STNC-60x4000	60	55	4000	750	90
W11STNC-65x4000	65	60	4000	780	90
W11STNC-70x3000	70	60	3000	680	75
W11STNC-70x4000	70	65	4000	810	90
W11STNC-75x3000	75	65	3000	720	90
W11STNC-80x3000	80	70	3000	770	90
W11STNC-80x4000	80	75	4000	860	90
W11STNC-90x3000	90	80	3000	780	90
W11STNC-100x3000	100	90	3000	840	90
W11STNC-100x4000	100	85	4000	940	110
W11STNC-110x4000	110	95	4000	960	110
W11STNC-120x3000	120	100	3000	960	90
W11STNC-130x3000	130	110	3000	980	110
W11STNC-150x3000	150	120	3000	990	2x75
W11STNC-160x3000	160	130	4000	1260	2x90
