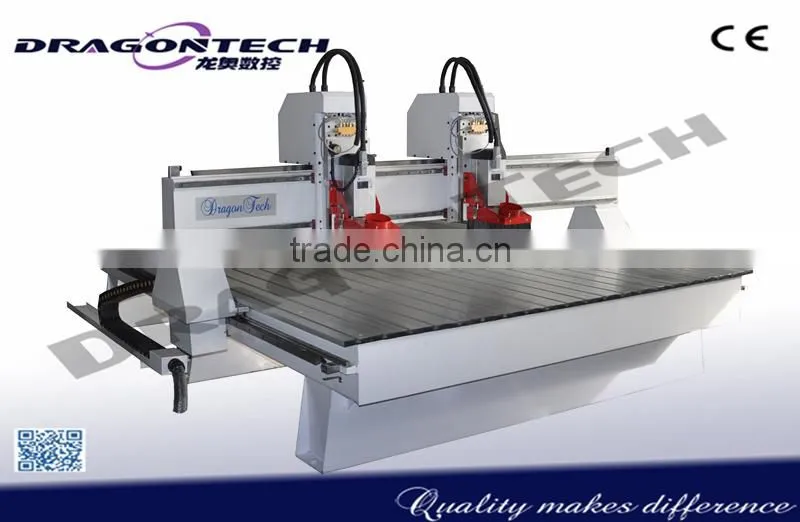

double head cnc router ,router cnc DT1925D,hot sale double heads cnc router DT1925D
Parameters:
No. |
Description |
DT1925D |
1 |
X,Y,Z working size |
1900*2500*200mm |
2 |
Working table |
PVC and T-slot aluminum table |
3 |
Gantry |
Steel gantry |
4 |
Lathe structure |
Welding steel tube frame(8mm) |
5 |
Transmission system |
Rack pinion for X/Y, Ball screw for Z; HIWIN linear rails for X/Y/Z |
6 |
Working mode |
Panasonic servo system |
7 |
Repositioning accuracy |
±0.03mm |
8 |
Max. travelling speed |
50m/min |
9 |
Max. working speed |
30m/min |
10 |
Spindle and collet |
3.5kw HQD spindle, ER25 |
11 |
Spindle speed |
0-24000RPM |
12 |
Working voltage |
AC380V/3ph |
13 |
Operating system |
DSP |
14 |
Command code |
G code(*uoo, *nc, *mmg, *plt) |

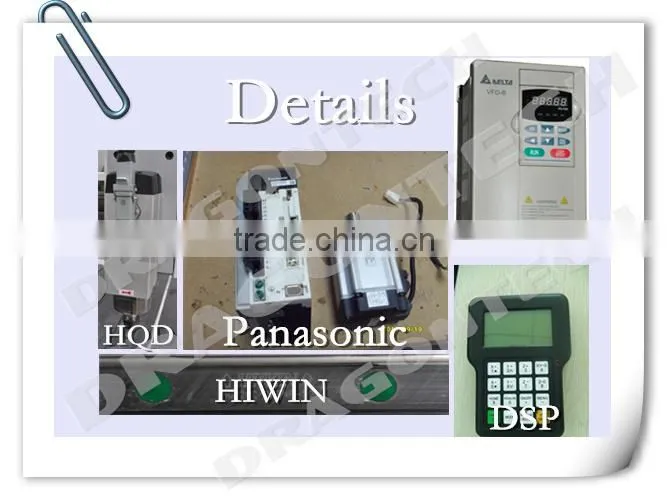

Options:
Driving systerm:Panasonic/Yaskawa/Delta servo systerm
Spindle: HSD,Colombo, Chinese GS/GDZ/HQD
Inverter: Delta inverter, Fuling inverter
Control system: DSP, Mach3, Ncstudio, Syntec
P.S.
All the pars of machine can do some changes to meet your requirements, such as the motor (step motor or servo motor), spindle (air cooled or water-cooled ),inverter(DELTA or FULING) and the table of the machine also can be customized and so on
Following are some samples made by this machine:
We have our own factory:
We pass CE Certification:
We have almost all kinds of machine: 3 axis, 4 axis and auto-feeding cnc routers. If you have your own demands, we also can make for you according to your request.
Contact information:
Skype:ivy.dragontech
Tel:86-183-0644-5018
QQ:1263208647
