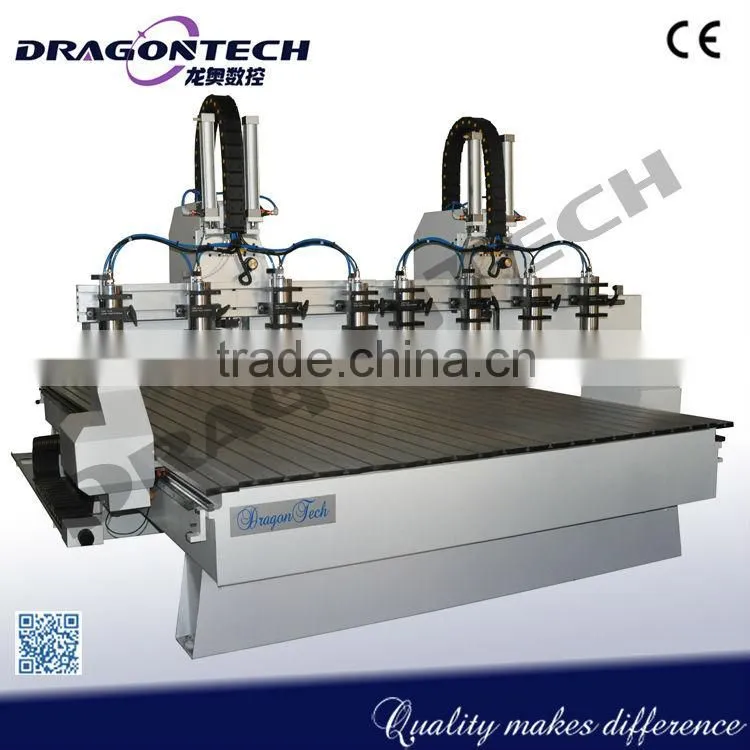

multi spindle woodworking cnc router2030 forsale DT2030H8
Applications:
Dragon Tech multi head CNC Router is suitable for hard woodworking, cutting and engraving on rosewood for furniture, indoor decoration, MDF, acrylic, plastic and so on.
The 2-8 spindles can produce items with time and cost efficiencies making production more economic.
Options:

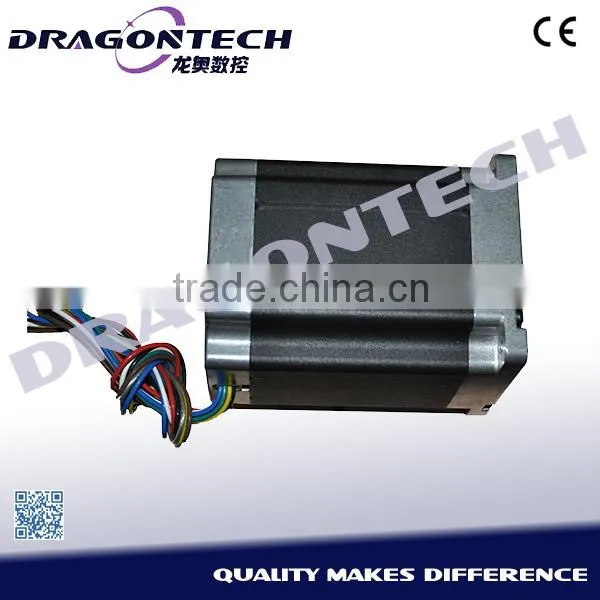

Driving system: stepper system, Panasonic/Yaskawa/Delta servo system
Spindle: HSD, Colombo, Chinese GS/GDZ/HQD spindle
Inverter: Delta inverter, Fuling inverter

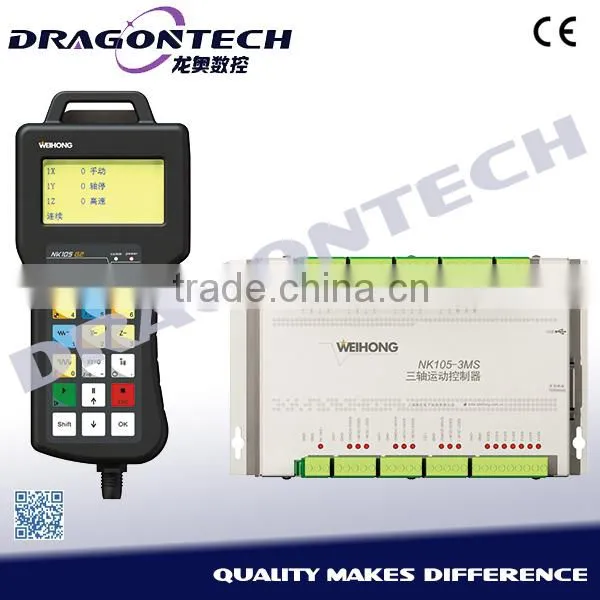

Control system: DSP, Mach 3, Ncstudio, Syntec
No. |
|
Description |
|
DT2030H8 |
1 |
|
X,Y,Z working size |
|
2000*3000*200mm |
2 |
|
Working table |
|
PVC and T-slot aluminium |
3 |
|
Gantry |
|
Steel gantry |
4 |
|
Lathe structure |
|
Welding steel tube frame |
5 |
|
Transmission system |
|
Rack pinion for X/Y, Ball screw for Z; HIWIN linear Rails for X/Y/Z; |
6 |
|
Driving system |
|
Panasonic servo system |
7 |
|
Repositioning accuracy |
|
±0.03mm |
8 |
|
Max. travelling speed |
|
50000mm/min |
9 |
|
Max. working speed |
|
25000mm/min |
10 |
|
Spindle and collet |
|
3.5kw Chinese HQD spindle,ER25 |
11 |
|
Spindle speed |
|
0-24000RPM |
12 |
|
Spindle quality |
|
8 pcs |
13 |
|
Working voltage |
|
380V/3ph |
14 |
|
Max. consume power |
|
36kw |
15 |
|
Operating system |
|
DSP |
16 |
|
Command code |
|
G code(*uoo, *nc, *mmg, *plt) |
P.S.
All the parts of machine can do some changes to meet your requirements ,such as the motor (step motor or servo motor ), spindle (air cooled or water-cooled ),inverter(DELTA or FULING) and the table of the machine also can be customized and so on .
