Specifications
LED RGB LED pixel WS2801 IC 20pcs a string1.dc12v,0.96w
2.ws2801ic
3.4 smd 5050 leds
LED RGB LED pixel WS2801 IC 20pcs a string
-installation: mounts with pre-attached 3M double sided tape or center mounting hole
-housing:metal
-maximum of 20pcs per strand
-can be cut to the length anywhere
-waterproof IP66
-,dimmable with a 12v DC dimmer, or with a SD card controller
-ws2801 IC
-CE,RoHS certificated
Spec.
P.N. |
Square RGB LED modules |
Model NO. |
SJ-3535-ICRGB |
Power Consumption |
0.96W |
Work Voltage |
DC12V |
Beam Angle |
≥140 |
LED Quantity |
4pcs SMD5050 Epistar |
Color |
Full color(ICRGB) |

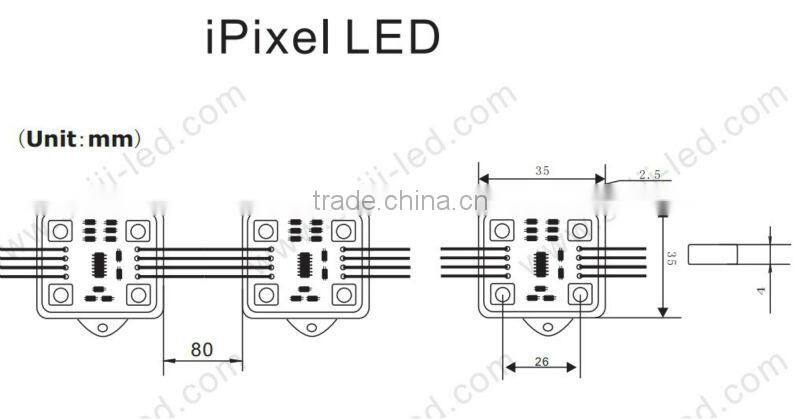

Dimension |
35*35*4mm |
IC model |
WS2801 |
Work Temperature |
-40-60°C |
Life-span |
50,000H |
Certificate |
CE&RoHS |
Warranty |
2 years |
| Part Model | Dimension | LED QTY | Color | Voltage | IC model | Beam | Power(W) |
| SJ-3535-ICRGB | 35*35mm | 4 | Full color | DC12V | WS2801 | 140 | 0.96W |

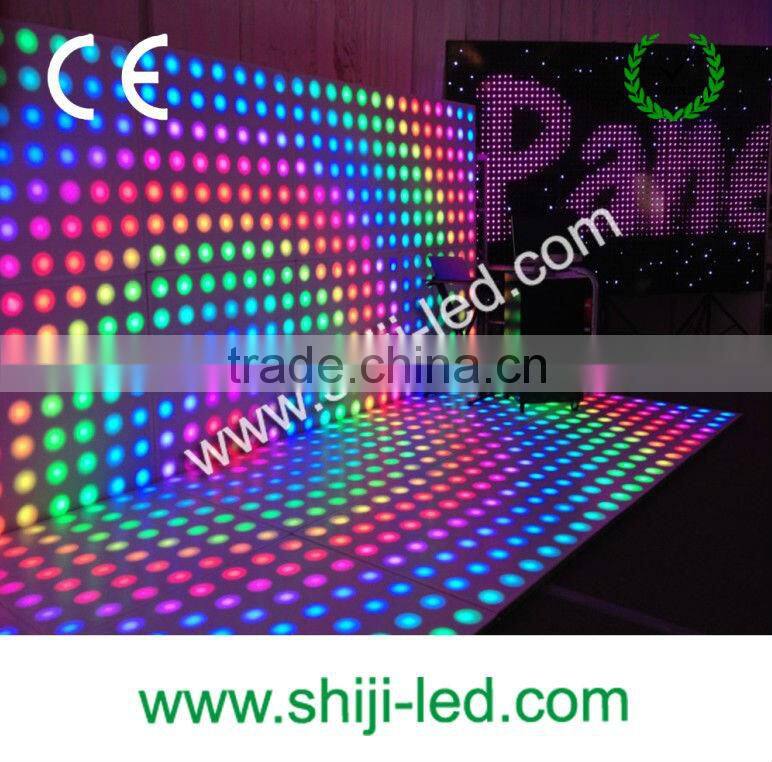

RGB Pixels are digitally-controllable lights you can set to any color, or animate. Each metal 'pixel square' contains 4 RGB LEDs and a controller chip soldered to a PCB. The pixel is then 'flooded' with epoxy to make it waterproof. These are fairly large pixels but they have a lot of nice mounting options, such as two metal flanges on the side and a 0.15"/so you can screw them directly onto a surface. They're typically used to make outdoor signs.
The pixels are connected by a 4-conductor cable. +12VDC, clock,data and ground, Data is shifted down from one pixel to the next so that you can easily cut the string or attach more onto the end.+12v:Red,GND:Yellow,DAT:Green,CLK:Blue. Color order :Red,Yellow,Green,Blue.
Each dot is digitally controlled, (24-bit color for 16 million different shades). The pixels must be clocked by a microcontroller, it easy to adapt it to any other microcontroller.
The pixels use 4 x 5050 RGB LEDs, with a 140 degree beam width. All of the LEDs are controlled at once so you cannot have one pixel with the four LEDs different colors. (Color control is per single square 4-LED pixel only) The total max brightness of all LEDs is about 6000mcd.
Sold by the strand, each strand has 20 pixels in series! Each strand has two JST SM 4-pin connectors so you can connect multiple strands in a row, as many as you wish, just watch for how much current they want. The two power wires are brought out separately to make wiring easier.
