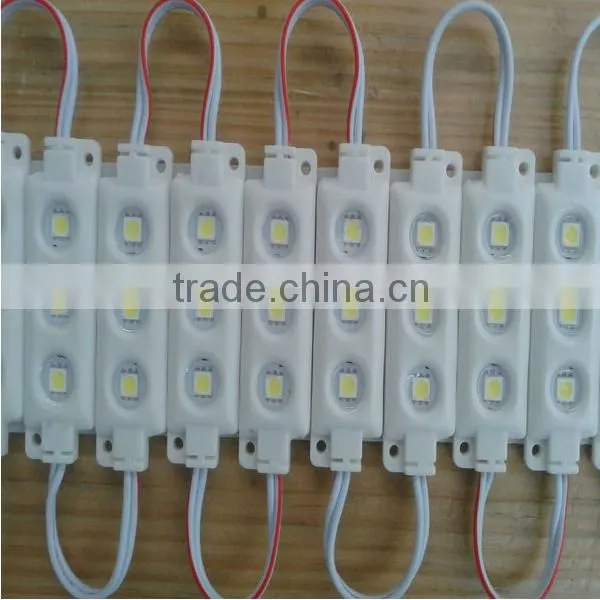

Highlight Injection LED Module 5050smd for Channel Letters
- shenzhen yantian
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Smd5050 Ws2801ic Multi Color Pixel Led Module for Decorations
-
Smd5050 Square 38mm Digital Rgb Led Injection Module With Ws2801ic
-
Smd5050 Rgb Pixel Led Module
-
High Brightness Rgb Color Smd5050 Led Pixel Module
-
3 Pcs SMD5050 Led Module Light WS2801 Arduino From China
-
3 Chips 5050 Leds SMD Module Ws2801 Arduino Compatible
Product Details
| Model Number | SJ-6820-ICRGB | Chip Material | InGaN | |
| Emitting Color | Other, changeable | Luminous Flux(lm) | 60 | |
| Power | Other, 0.72w | Color Rendering Index(Ra) | 75 | |
| Operating Temperature(℃) | -40, 60 | Storage Temperature(℃) | -25, 45 | |
| Place of Origin | Guangdong, China | Brand Name | I PIXEL LED | |
| Certification | CE |
Product Description

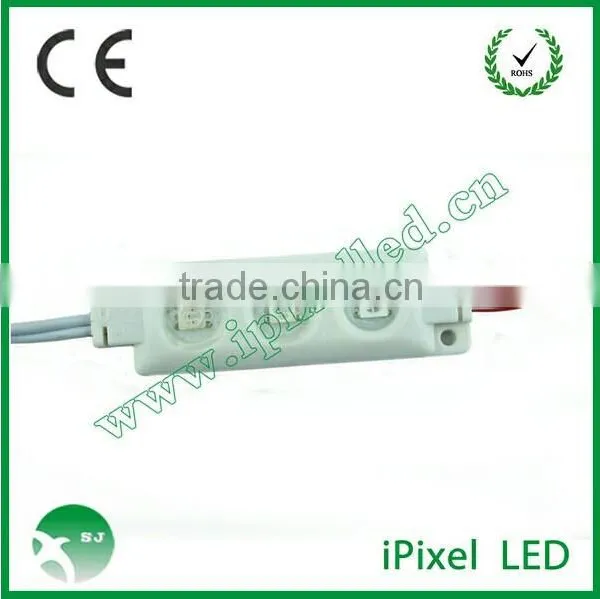

5050smd injection led module
Specifications:
1.DC12V.0.72W/pcs
2.WS2801 IC
3.3pcs SMD5050
4.Waterproof IP66

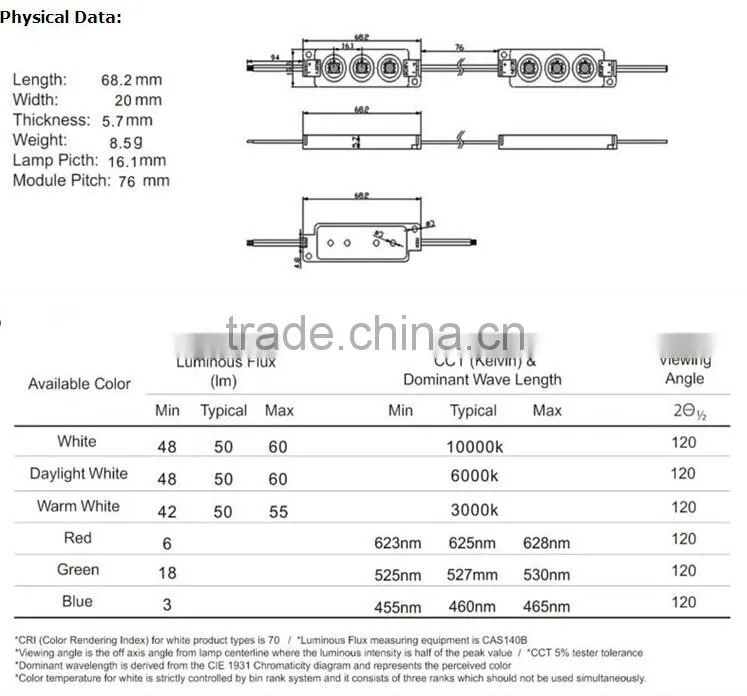

| Part Model Dimension LED QTY Color Voltage Lm Beam Power(W) | |||
| SJ-6820-50 68*19.3*6.5mm 3 White DC12V 56 120 0.72W | |||
| SJ-6820-50 68*19.3*6.5mm 3 Red DC12V 22 120 0.72W | |||
| SJ-6820-50 68*19.3*6.5mm 3 Green DC12V 42 120 0.72W | |||
| SJ-6820-50 68*19.3*6.5mm 3 Blue DC12V 15 120 0.72W | |||
SJ-6820-50 68*19.3*6.5mm 3 Yellow DC12V 15 120 0.72W |
DMX IC madrix control 3 leds pixel led module :
Features:
Its can be individually controlled, each containing 3LEDs.
The WS2801 even allows you to set the PWM Level for each color with an 8 Bit resolution.
Each module has its own WS2801 IC, 3LEDs and current limiting resistors
We also supply DMX IC type about this 3leds module
Wire distance:8cm or customized
Notes:
Please make LED drivers compatible with Led pixel module
To use LED pixel module to make sure the wire connection to the controller
Before use, first check the power supply used in compliance with of the power requirements
Each string ask for independent power supply, not to use of multi-volume series us
Applications:

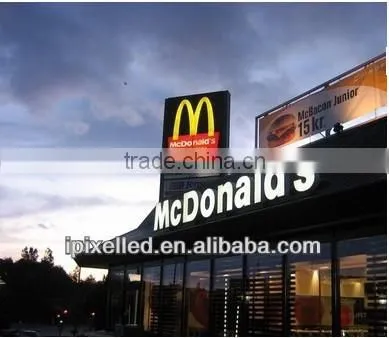

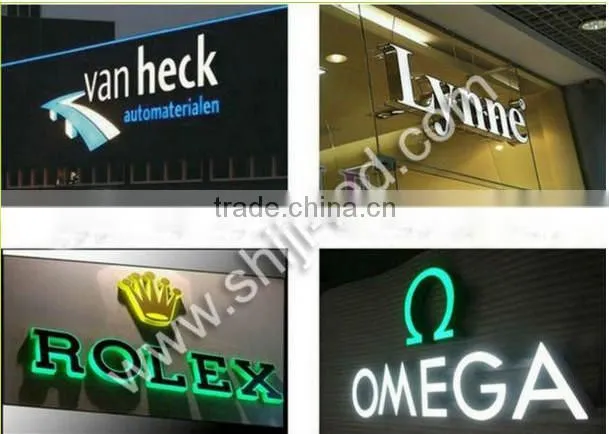

1. lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path and contour marking; etc.
2. They can be a good choice for advertising, Led screen, night clubs, coffee / wine bars, shopping malls, various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.
Details:
