4leds squqre full color led module
Specifications:
DC12V,0.96W
WS2801 IC SMD 5050 Epistar Taiwan
20 pcs per strand
Product features:
20 pcs modules per string
These pixels use WS2801 IC chip for full 24 bit color, constant-current drive
12VDC power, 80mA maximum per pixel (LED on full white)
Addressable with the chip inside each pixel
Brightness per pixel: 6000 mcd combined
installation: mounts with pre-attached 3M double sided tape or center mounting hole
-housing:metal
-maximum of 20pcs per strand
-can be cut to the length anywhere
-waterproof IP66
-,dimmable with a 12v DC dimmer, or with a SD card controller
-ws2801 IC
-CE,RoHS certificated
Specifications:
P.N. |
Square RGB LED modules |
Model NO. |
SJ-3535-ICRGB |
Power Consumption |
0.96W |
Work Voltage |
DC12V |
Beam Angle |
≥140 |
LED Quantity |
4pcs SMD5050 Epistar |
Color |
Full color(ICRGB) |
Dimension |
35*35*4mm |
IC model |
WS2801 |
Work Temperature |
-40-60°C |
Life-span |
50,000H |
Certificate |
CE&RoHS |
Warranty |
2 years |
Description:
1. RGB Pixel module are digitally-controllable lights you can set to any color, or animate. Each metal 'pixel square' contains 4 RGB LEDs and a controller chip soldered to a PCB. The pixel is then 'flooded' with epoxy to make it waterproof. These are fairly large pixels but they have a lot of nice mounting options, such as two metal flanges on the side so you can screw them directly onto a surface. They're typically used to make outdoor signs. Compared to our other LED dots, these are much bigger and much brighter, good for larger scale installations
2. The pixelrgb led module are connected by a 4-conductor cable. +12VDC, ground, data and clock. Data is shifted down from one pixel to the next so that you can easily cut the strand or attach more onto the end
3. Each dot is digitally controlled, with an internal ws2801 IC chip (24-bit color for 16 million different shades). Compatible with arduino,artnet,sd controller,dmx controller,any controller which could support ws2801 chip
4. Sold by the strand, each strand has 20 pixels in series. Each strand has two JST SM 4-pin connectors so you can connect multiple strands in a row, as many as you wish, just watch for how much current you want

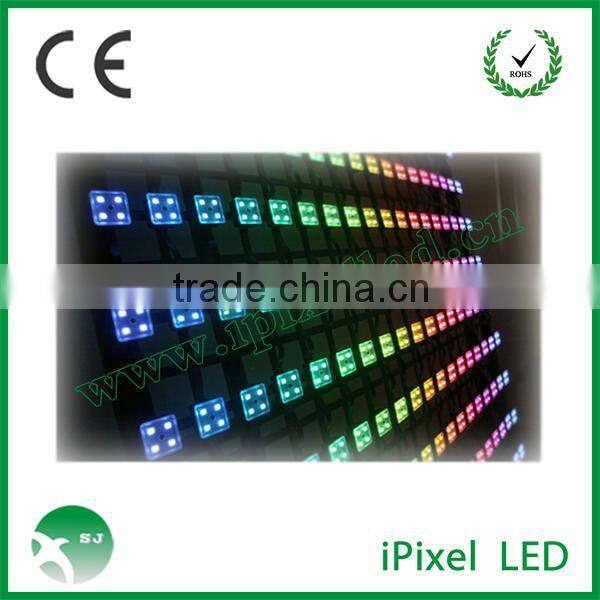

Detail Pictures :
