Specifications
1.WS2801 chip2.Waterproof silicon tube or glue
3.Full color
4.CE&RoHS
5.2 years warranty
smd 5050 Led pixel strip fully addressable for rgb led curtain
Features:
1. High brightness 5050 led, 32 PCS/m
2. Red, Yellow, Blue, Green, White, Warm White and RGB is available
3. Packing: 5m/reel in an anti-static package
4. Every 1-LED are cuttable for 5V strips
5. White, Black, PCB Board are available
6. Waterproof type: Silicone Tube or glue
7. Input voltage: DC5V
Specification:
Item Modle No. |
SJ-10032-ICRGB |
Dimension |
1000mm(L)*12mm(W)*4mm(H) |
Voltage |
DC5V |
Power |
7.6W |
Color |
Pixel RGB color |
LED quantity |
32 leds per meter |
LED type |
SMD5050 |
IC style |
WS2801 |
Connectors |
4-pin JST connector |
IP Rank |
IP65~IP68 or non-waterproof(as customers' requirement) |
Beaming Angel |
120 degree |
Lumen per 1m/32LEDs |
R29/G81/B27 |
Customization options |
Yes |
Certification |
CE and RoHS |
Lifespan |
more than 50,000 hours |
Warranty |
2 years |
Port of Shipment |
Shenzhen Yantian |
Detailed Discription:
1.This LED ribbon uses flexible PCB board as its base and adopts chip RGB as its luminous body
2.Available Color:Red,Yellow, Blue, Green, White. You can change colors with the optional controller
3.Available IC:WS2801,LPD6803,UCS1903
4.Controller:we usually select SD controller,you also could use DMX controller,DMX decoder,Arduino,Artnet
5.This product can achieve effects RGB seven colors gradual change,jumping change,etc.
6.Easy installation: Including 3M adhesive tape for convenient mounting

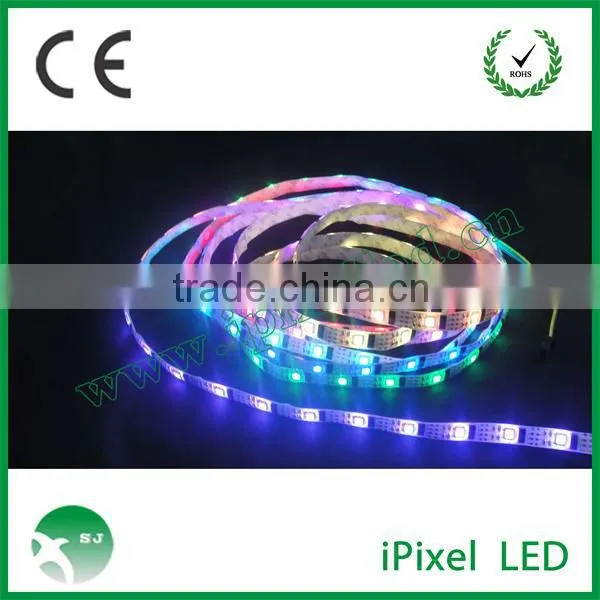

Product Images:
More Info about ws2801 pixel led strip:
Constructed on an extremely high quality white/black flexible PCB, these strips contain 32 WS2801 ICs and 32 high quality SMD5050 RGB LEDs per meter. These LED strips speak a SPI protocol, and can easily be driven by Arduino, PIC, and ARM microcontrollers. See the FastSPI library for Arduino for an easy way to get started.
32 SMD5050 RGB LEDs per meter, with 32 WS2801 ICs (each LED is individually addressable)
Waterproof, with a silicon jacket or glue around the strip .
5V operation, Each roll ask for independent power supply .
Strips can be cut every LED (1 IC, 1 LED per segment)
White and black PCB are both available
These strips take data in the standard red, green, blue order
All LED pricing is per meter, cut from standard 5 meter rolls. Orders in multiples of 5M will receive whole, uncut 5M roll
How to connect:
Notice: 1)led power supply depend on the total power from led strip
2)led controller depend on IC quantity on your led strip
Applications of Waterproof 5050 LED strip : (see below pictures)
1.Backlight or edge lighting for signage and channel letters
2.Coffee bar,wine bar,led curtain,video wall
3.Path and contour marking
4.Decorative lights for holiday, event, show, exhibition
5.Automobile and bicycle decoration
How we package this product:(5meter/m,1reel/anti-static bag,40reels/carton)
Shipment :
1.Goods will be delivered within 3-5 working days after the payment received
2.We ship item via Door to Door service express or air and sea.
Warranty Terms:
ShenZhen Shiji Lighting CO.,Ltd.
1)Our Warranty to You
v To be free from defects in material and workmanship under normal use and service
v Warranty period:24 months,effective from the date of shipment
v Warranty only for original perchaser for flex led strip
2)How to Get Our Warranty Service
To get warranty service from Shiji,you only need to:
v Provide us with purchase PI No. Part
v Provide us photoes for defective led
v When requested by Shiji,return the defective LED
3)Warranty Service
v Repair the defective LED product
v Replace the defective LED product
4)Exclusions from Our Warranty
v Any repair,replacement or alteration by a facility not approved in advance by Shiji.
