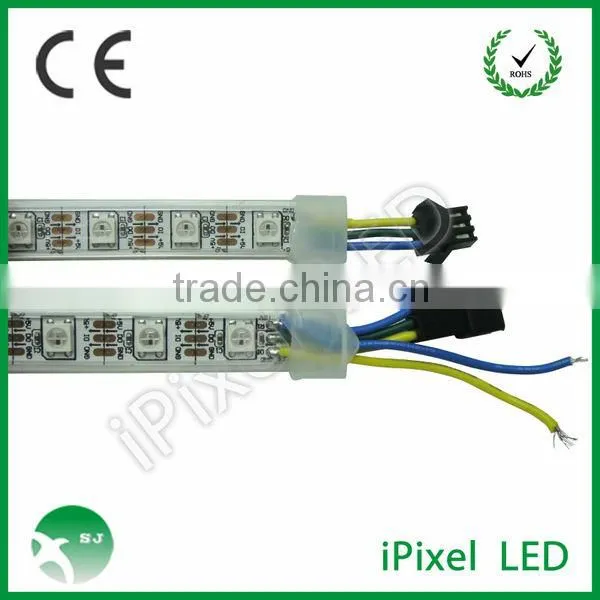

WS2811 LED pixel strip 60leds 1m 5V DC individually controllable

Specifications

1.60 leds per meter
2.DC5V
3.14.4W
4.smd 5050
5.Includes connector cables

WS2811  LED pixel strip 60leds 1m 5V DC individually controllable



Features:



1)60 leds per meter



2)1 integrated RGB LEDs per segment, individually controllable



3)5VDC power requirement



4)10mm wide self-adhesive Tape



5) over 50,000 hours life expectancy



Specification:



Input Voltage:	5VDC
Max Power Consumption:	14.4W per mtr
LED Quantity:	60 per mtr
LED Classification:	Pixel RGB SMD
IC Type	WS2811
Viewing Angle:	120°
Standard Reel Length:	5mtr
Custom Lengths Available:	Yes
Dimensions:	1000mm(L) x  10mm(W) x 7mm(H)
Operating Temperature:	-20 ~ +60°C
Storage Temperature:	-40~+80 °C
IP Rate:	non-waterproof,IP65,IP67,IP68
Material:	Super slim flexible PCB

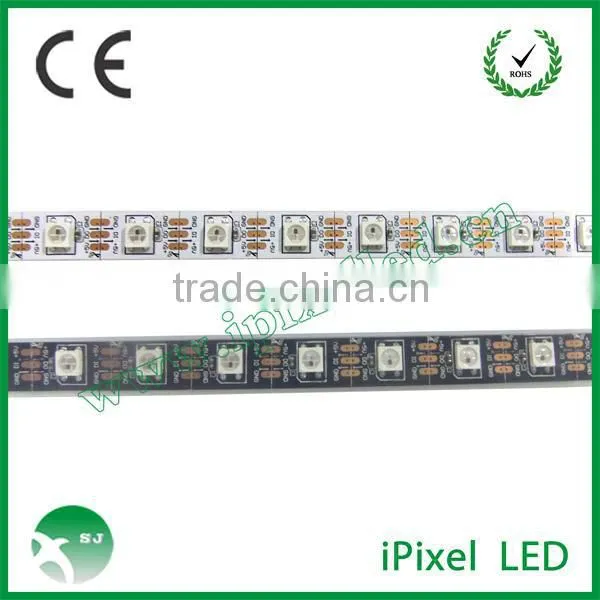

PCB Color:	Black and White both avaliable
Flexibility:	360°
Brand:	SJ or OEM



Description:



 1.The tape is extremely thin with a depth of just 3mm. It has a 3M self-adhesive backing so

is easily applied to most smooth surfaces by simply removing the backing paper



2.The LEDs used in the tape are 3 Chip SMD LEDs like the ones uses to backlight the screens

of the latest Mobile Phones and MP4 Players



3.The LEDs are encapsulated in resin for a splashproof seal



4.There are 60 RGB LEDs per meter, you can control each LED individually.This is the digitally

addressable type of LED strip. You can set the color of each LED's red,green and blue



 5.The tape can be cut or joined, connections and cutting points are at 1 LED



Detailed Images:

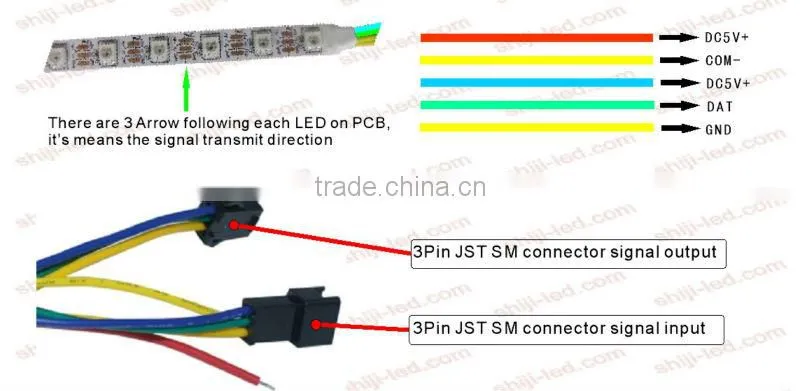

Signal Define and Connectors:









Waterproof Level available:



IP40--Non waterproof ,for interior use



IP65---Epoxy coating,easy cut,exterior use



IP67---Silicone tube,need reseal after cut,exterior use



IP68---can work underwater

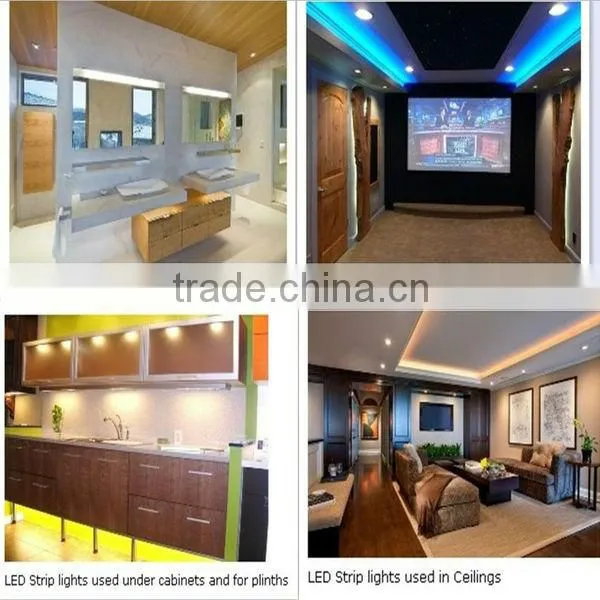

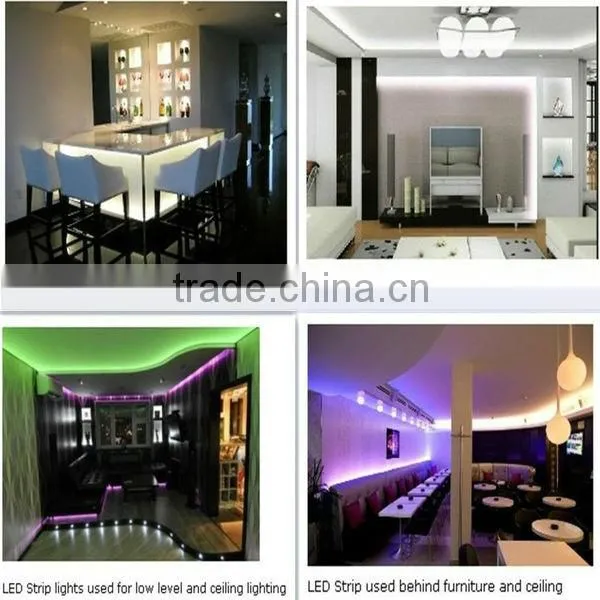

Check where led strips are used:



1.Edge lighting



2.Cabinet lighting



3.Cove lighting



4.Wall color wash lighting



5.Residential kitchens



6.Decorative lights for holiday, event, show, exhibition



7.Automobile and bicycle decoration







 How we package this product:
