Specifications
1.WS2801 chip2.Addressable
3.RGB LED
4.lower power consumption
5.2 years warranty
ws2801 led pixel strip smd5050 32 chips led per meter
Features:
1. High brightness 5050 led, 32 PCS/m
2. Red, Yellow, Blue, Green, White, Warm White and RGB is available
3. Packing: 5m/reel in an anti-static package
4. Every 1-LED are cuttable for 5V strips
5. White, Black, PCB Board are available
6. Waterproof type: Silicone Tube
7. Input voltage: DC5V
Specification:
Item Modle No. |
SJ-10032-ICRGB |
Dimension |
1000mm(L)*12mm(W)*4mm(H) |
Voltage |
DC5V |
Power |
7.6W |
Color |
Pixel RGB color |
LED quantity |
32 leds per meter |
LED type |
SMD5050 |
IC style |
WS2801 |
IP Rank |
IP65~IP68 or non-waterproof(as customers' requirement) |
Beaming Angel |
120 degree |
Lumen per 1m/32LEDs |
R29/G81/B27 |
Certification |
CE and RoHS |
Lifespan |
more than 50,000 hours |
Warranty |
2 years |
Port of Shipment |
Shenzhen Yantian |
Detailed Discription:
1.This LED ribbon uses flexible PCB board as its base and adopts chip RGB as its luminous body
2.Available Color:Red,Yellow, Blue, Green, White. You can change colors with the optional controller
3.Available IC:WS2801,LPD6803,UCS1903
4.Controller:we usually select SD controller,you also could use DMX controller,DMX decoder,Arduino,Artnet
5.This product can achieve effects RGB seven colors gradual change,jumping change,etc.
6.Easy installation: Including 3M adhesive tape for convenient mounting
Product Pictures:

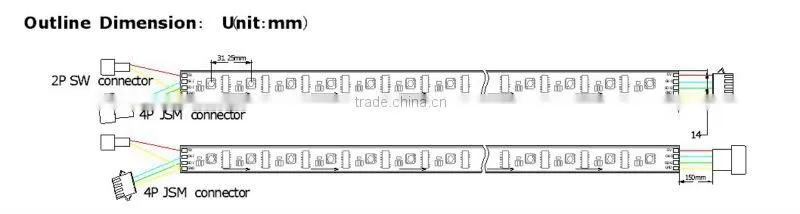

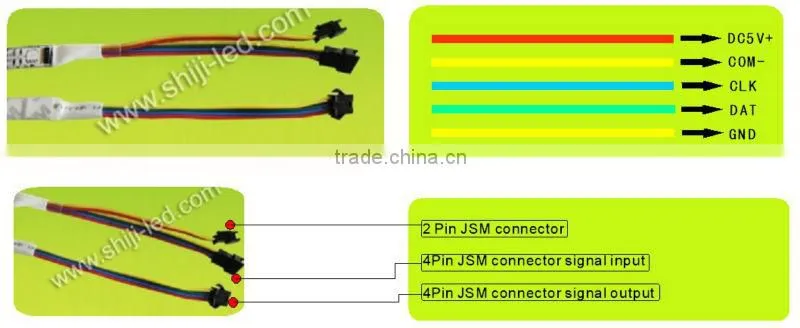

Connecters and Signal Define:

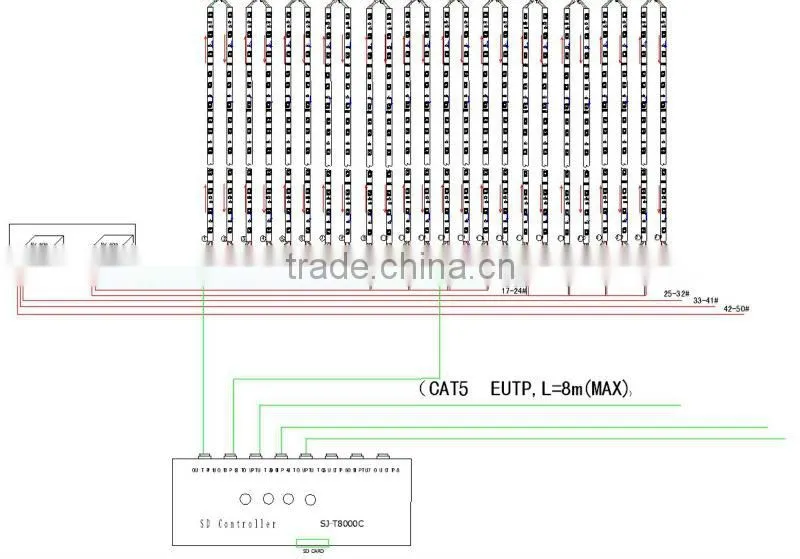

How to connect:
Notice: 1)led power supply depend on the total power from led strip
2)led controller depend on IC quantity on your led strip
Applications of Waterproof 5050 LED strip :
1.Backlight or edge lighting for signage and channel letters
2.DIY lights for home use
3.Path and contour marking
4.Decorative lights for holiday, event, show, exhibition

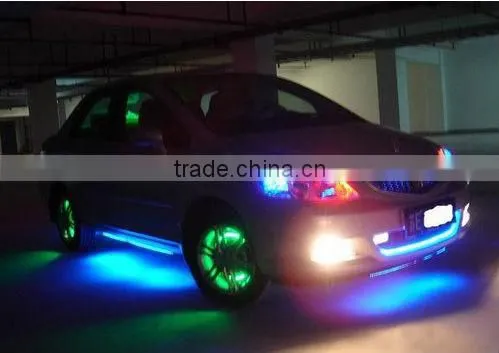

5.Automobile and bicycle decoration
Note of Waterproof 5050 LED strip :
1.Please make LED drivers compatible with waterproof 5050 LED strip light before use LED strips
2.To use waterproof 5050 LED strip light 5M in serial, longer than 5M in parallel
3.Before use,first check the power supply used in compliance with of the power requirements
4.Each roll ask for independent power supply

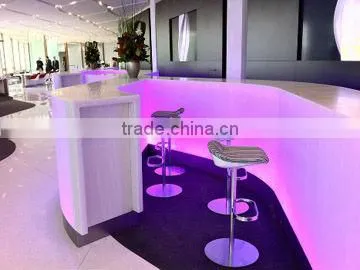

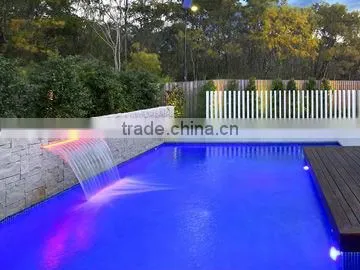

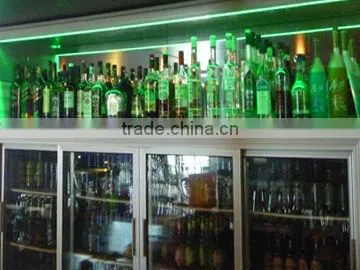

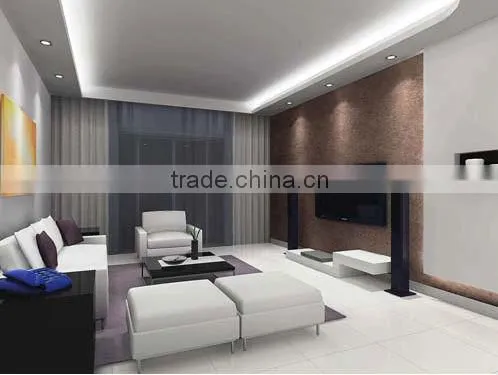

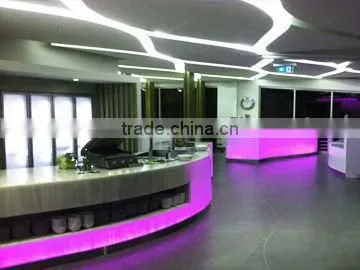

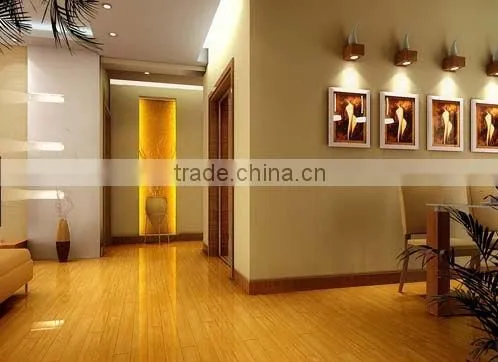

Project Case:

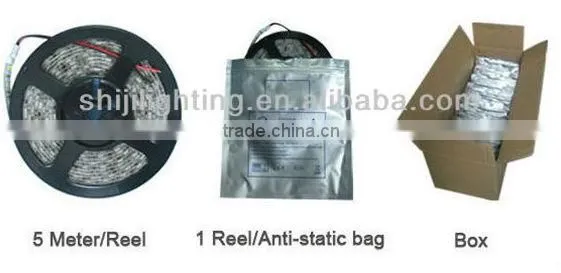

Packaging Pictures:
Service:
1.Reply your inquiry in 24 hours
2.Experienced staffs answer all your questions in fluent English
3.Customized design is available.OEM&ODM are welcome
4.Exclusive and unique solution can be provided to our customer by our well trained and professional technicians
5.Special discount and protection of sales area provided to our distributor
Shipment:
1.Goods will be delivered within 3-5 working days after the payment received
2.We ship item via Door to Door service express or air and sea.
Waranty:
1.All products we sell are in good quality and have been tested before they are shipped out.
