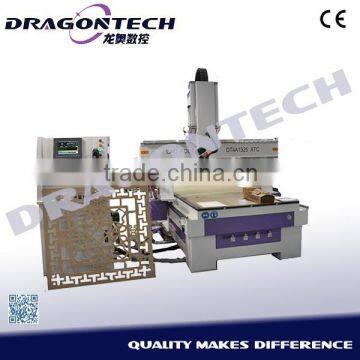

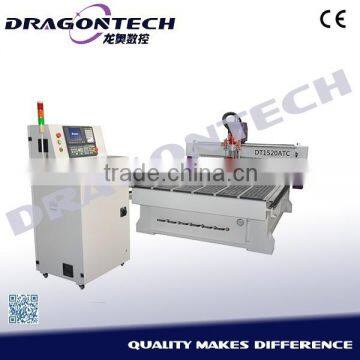

HOT SALE! CNC Router with ATC for woodworking, cnc router with atc 1325, atc cnc router DT1325ATC
Specifications:
1. The lathe structure is hard steel frame, reliable, high precision, durable.
2. Taiwan ball screw ensures the high precision of the machine.
3. The machine adopts Taiwian Hiwin linear rails with high quality wich promises the reliable of X,Y,Z.
4. HSD 9kw air cooling spindle, high precision, steady.
5. Syntec control system.
6. Japanese Panasonic servo, high speed and much more power.
7. Lubrication for X, Y, Z.
Options:
1. Spindle: Colombo spindle, chinese GS spindle
2. Gantry: aluminum gantry and steel gantry
3. Control system: Mach3 system, Ncstudio system
4. Motor:Yaskawa servo motor
5.Inverter: Yaskawa, Panasonic
6. Mist cooling system
7. Vacuum pump: Germany Becker pump, chinese copy Becker pump
| NO. | Description | Parameter |
| 1 | X, Y, Z working size | 1300x2500x200mm |
| 2 | Table size | 1470X3300mm |
| 3 | Lathe structure | Welding Steel Frame |
| 4 | X Y structure | Rack pinion, HIWIN linear Rails |
| 5 | Z structure | Ball screw, HIWIN linear Rails |
| 6 | Max. speed | 60000mm/min |
| 7 | Max. working speed | 30000mm/min |
| 8 | Spindle | 9Kw Italian HSD ATC Spindle |
| 9 | Tools | 6pcs HSD tools |
| 10 | Spindle speed | 0-24000RPM |
| 11 | Working mode | Panasonic Servo System (option: Yaskawa) |
| 12 | Working table | T-slot vacuum table (option: vacuum table) |
| 13 | Working voltage | AC380V/3Phase |
| 14 | Operating system | Syntec/ Mach3/ Ncstudio/ |
| 15 | Collet | ER32 |
| 16 | Software | Type3 |
| 17 | Packing size | 3200x1900x1900mm |
| 18 | Gross weight | 1400kgs |
