Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Router > ATC Cnc Router DT1325ATC
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Woodworking CNC ROUTER, Chinese CNC ROUTER, CNC ROUTER 1325, ATC CNC ROUTER From China DT1325ATCUS$ 13,000 - 26,000MOQ: 1 Set -
Mini Cnc Router 0609/wood Cnc Router 0609/0609 Cnc RouterUS$ 1,999 - 4,600MOQ: 1 Set
-
Router CNC, CNC Wood Router, Multi Head CNC Router CNC Wood Engraving Machine DT2040DUS$ 7,500 - 14,000MOQ: 1 Set
-
Good Sale, CNC Router, CNC Cutting Machine Price DT2040US$ 6,000 - 13,500MOQ: 1 Set
-
CNC ROUTER Engraver Drilling and Milling Machine, CNC Machine, Cnc Engraving Machine Price DT1325ATCUS$ 13,000 - 29,000MOQ: 1 Set
Condition
New
CNC or Not
CNC
Place of Origin
Shandong, China
Brand Name
DragonTech
Model Number
DT1325ATC
Voltage
380V
Certification
CE
Warranty
1.5year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
CE StandardHeavy bed lathe and steel gantry
9kw HSD ATC spindle
YASKAWA servo system

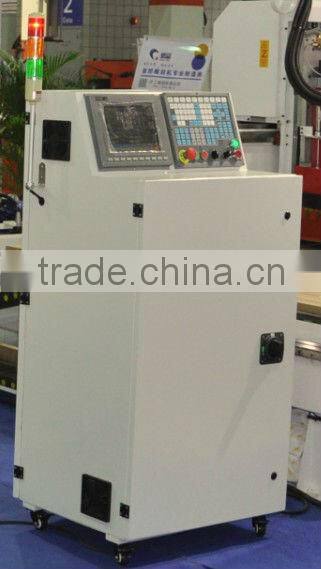

SYNTEC control system
Specifications:
1. The lathe structure is hard steel frame, reliable, high precision, durable.
2. Taiwan ball screw ensures the high precision of the machine.
3. The machine adopts Taiwian Hiwin linear rails with high quality wich promises the reliable of X,Y,Z.
4. HSD 9kw air cooling spindle, high precision, steady.
5. Syntec control system.
6. Japanese Panasonic servo, high speed and much more power.
7. Lubrication for X, Y, Z.
Options:
1. Spindle: Colombo spindle, chinese GS spindle
2. Gantry: aluminum gantry and steel gantry
3. Control system: Mach3 system, Ncstudio system
4. Motor:Yaskawa servo motor
5.Inverter: Yaskawa, Panasonic
6. Mist cooling system
7. Vacuum pump: Germany Becker pump, chinese copy Becker pump
| NO. | Description | Parameter |
| 1 | X, Y, Z working size | 1300x2500x200mm |
| 2 | Table size | 1470X3300mm |
| 3 | Lathe structure | Welding Steel Frame |
| 4 | X Y structure | Rack pinion, HIWIN linear Rails |
| 5 | Z structure | Ball screw, HIWIN linear Rails |
| 6 | Max. speed | 60000mm/min |
| 7 | Max. working speed | 30000mm/min |
| 8 | Spindle | 9Kw Italian HSD ATC Spindle |
| 9 | Tools | 6pcs HSD tools |
| 10 | Spindle speed | 0-24000RPM |
| 11 | Working mode | Panasonic Servo System (option: Yaskawa) |
| 12 | Working table | T-slot vacuum table (option: vacuum table) |
| 13 | Working voltage | AC380V/3Phase |
| 14 | Operating system | Syntec/ Mach3/ Ncstudio/ |

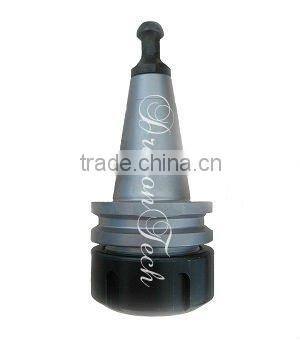

| 15 | Collet | ER32 |
| 16 | Software | Type3 |
| 17 | Packing size | 3200x1900x1900mm |
| 18 | Gross weight | 1400kgs |
