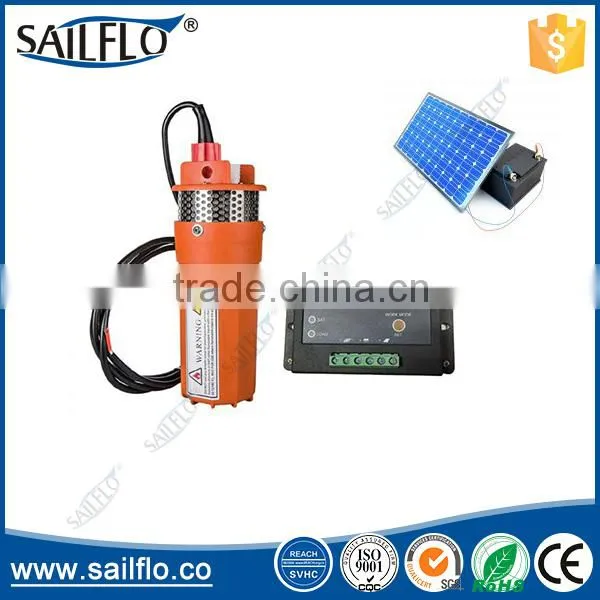

9300 6LPM 24 volt 70M Lift solar 12v dc water submerged pump
Specifications: pump included:
The solution to your remote water pumping needs.
This pump is rugged.durable and builtto last.
This pump delivers a steady 95GPH(360LPH) at its maximum depth of 230 feet (70m) when supplied with 24VDC.
Its unique water-tight power connector stops water wicking and prevents potential condensation problems.
Great for livestock watering.irrigation,pondaeration,remote homes and cabins
Features:
1. For 4" wells or larger
2. Quick disconnect with "Watertight-Gland" Design Pat Pend
3. Corrosion-proof housing with stainless-steel fastener
4. Run dry without damage
5. State of the art solid diaphragm
6. Stainless Steel Fastener
7. Pump Design: Positive Displacement 3 Chamber Diaphragm Pump
8. Motor: Permanent Magnet Thermally Protected
9. Wire Length:3M
Technical Data:
| Pump Design | Positive Displacement 3 Chamber Diaphragm Pump |
| Motor | Permanent Magnet, Thermally Protected |
| Voltage | 24VDC Nominal |
| Amps | 4.0A Maximum |
| Internal Bypass | 105-110PSI Max.(7.2-7.5 Bars) |
| Maximum Lift | 230 feet Maximum (70 Meters) |
| Maximum Submersion | 100 Feet Maximum (30 meters) |
| Outlet Port | 1/2'' (12.7mm) Barbed Fitting |
| Inlet: | 50Mesh Stainless Seel Screen |
| Materials | High Strength Engineered Plastics,Stainless Steel Fasteners |
| Typical Applications | Potable Water Well Pump |
| Model |
Volt (V) |
Flow rate (LPM) |
Max.Lift (M) |
Max.Submersible (M) |
Amps (A) |
Packing Size (mm) |
N.W/G.W ( kgs) |
| YM1240-30 | 12 | 6.0 | 70 | 30 | 4.0 | 355*130*110 | 2.9/3.0 |
| YM2440-30 | 24 | 6.0 | 70 | 30 | 8.0 | 355*130*110 | 2.9/3.0 |

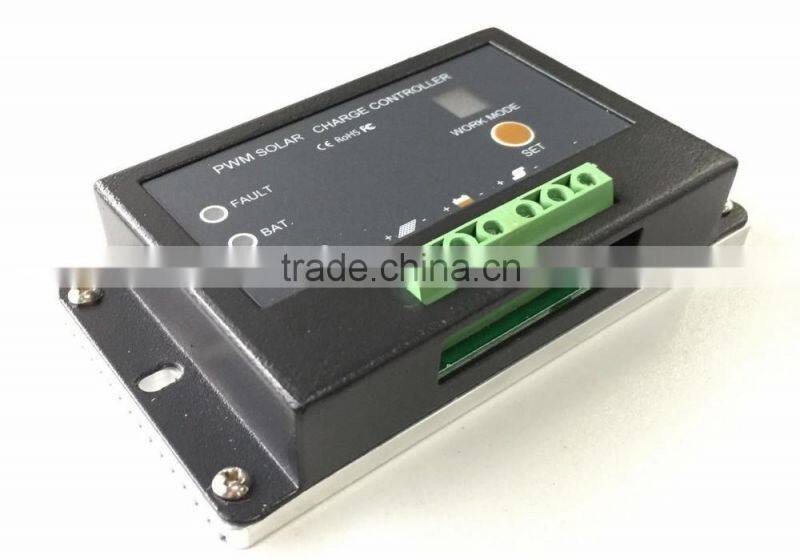

The controller function:
This controller can be use for12/24V pump automatic identification,It is designed according to the YM1240-30/2440-30 duty cycle specially.
Feature:
* Setting the pump working time: work 2.5hours, resting 30 minutes.If work with battery together, the rest time can charge the battery.When the sunshine is not good or at night, the pump can work with the battery automatically.
If you use the pump without battery, you can connect the solar panel wire to the battery button in the controller directly, it also can work in 2.5hours rest 30 minutes duty cycle
1. Q: Are you a manufacturer or trading company?
A: : We are a manufacturer that specialized in diaphragm water pump and bilge pumps, our products have abtained the SGS-CE and RoHS certificate.
2. Q:What's your products MOQ?
A: Different model has different MOQ, pls check with salesman.
3. Q: How can I get some samples?
A: Usually we can’t offer free sample, pls pay the sample and express fee, the sample costing can be deducted in your first large order.
4 Q: What's your delivery time?
A: 1.The samples can be sent to you within 3-5days.
2.The batch order can be shipped to you within 5-15days after order confirmation
5 : Q:What's your warranty & after service policy?
A: 12 Months for all products, and some products warranty is 24months. Usually offer 1% spare parts free to you
6 Q: How many qty so I can get your OEM service with myself brand name?
A: Different Models have different MOQ requirement, pls consult our salesman.
7 Q: What's the payment can you accept?
A:Usually we accept T/T ,Western Union, PayPal and Alipay, also RMB transfer in China mainland.
Remark:
The wholesales price usd125/set including the pump+ controller
