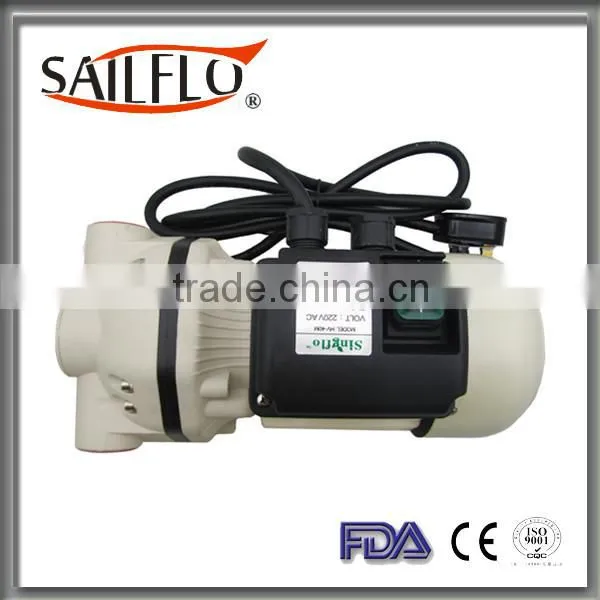

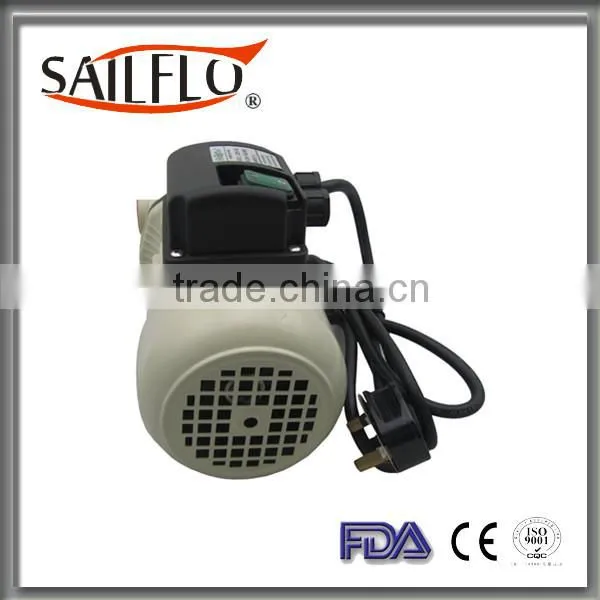

220v Ad blue pump with automatic switch

Name: 220v Ad blue pump with automatic switch
Brand: SAILFLO
Availability: InStock

FOB Price

US$ 40 - 90 / Piece

1 Piece(Min. Order)

Port XIAMEN NINGBO FUZHOU
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	SAILFLO
Model Number	HY30	Theory	Jet Pump
Structure	Diaphragm Pump	Usage	Water
Power	Electric	Standard or Nonstandard	Standard
Fuel	Other, electric	Pressure	Low Pressure
Application	Other, IBC

Product Description

Product Application

■ Permanent magnet and continuous duty

■ Built-in pressure switch automatically starts and stops

Pump when faucets is opened and closed

■ Self-priming so pump can be located above water tank

■ Runs dry for extended periods of time without damage

■ Hold excellent motor keep stable temperature of pump

body

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Model	Volts dc / ac	Open Flow gpm (lpm)	Pressure Shut Off	Amps (A)	Speed (rpm)	N.W / G.W (kg)
HV-30A	12 Vdc	30-35	40 psi (2.8 bar)	15	2800	4 / 4.4
HV-30B	24 Vdc	30-35	40 psi (2.8 bar)	7.5	2800	4 / 4.4
HV-30S	115 Vac	30	40 psi (2.8 bar)	4	3400	6 / 6.5
HV-30M	230 Vac	30	40 psi (2.8 bar)	1.5	2900	6 / 6.5
HV-40S	115 Vac	40	40 psi (2.8 bar)	4.2	3400	6 / 6.5
HV-40M	230 Vac	40	40 psi (2.8 bar)	1.8	2900	6 / 6.5
HV-50S	115 Vac	50	40 psi (2.8 bar)	4.5	3400	6 / 6.5
HV-50M	230 Vac	50	40 psi (2.8 bar)	2	2900	6 / 6.5

Main Features

■ Self priming: More than 3 meters
■ Port Size: Hose tail connection 3/4"
■ Pressure max: 40PSI (2.8Bar)
■ Diaphragm Material: Vition
■ Check Valve Made: Vition
■ Voltage: 12V,24V DC115V,220V,230VA C
■ POWER : ON/OFF SWITCH
■ Body Material(DC): Polypropylene
■ Body Material(AC): Aluminium
■ Liquid of application: Water, Oil, Urea, Adblue

Certifications

Detailed Images

Machine Parts

Name:Ad blue pump

Brand: Sailflo

Name: Ad blue pump
Brand: Sailflo

A:I B C SYSTEM: AC Voltage adblue pump, metering, automatic nozzles, 7.5meters EPDM
hoses

Brand: Sailflo
B: Easy kit:Adblue pump (AC voltage, 7.5meters EPDM hoses, automatic nozzles)

Name: Easy kit
Brand: Sailflo
Easy kit: Adblue pump(AC voltage, 7.5meters EPDM hose & manual nozzles

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	288 (L) * 178 (W) * 171 (D)
Weight	4.5kg
Packaging Details	Size: 11.3" L x 7" W x 6.7" H (288 x 178 x 171 mm)
