Help CenterEdible Tube Ice Making Machine With Economic Packing System
Related Products
-
Vegetable Refrigerator Fruit and Food Storage Cold RoomUS$ 1 - 100,000MOQ: 1 Set -
8 Tons Large Capacity R404a Refrigerant Flake Ice Machine for Food ProcessingUS$ 1 - 100,000MOQ: 1 Set
-
8 Tons Large Capacity Flake Ice Machine for Food ProcessingUS$ 1 - 100,000MOQ: 1 Set
-
for Vegetable Fruit and Food Storage Cold Room for SaleUS$ 1 - 100,000MOQ: 1 Set
-
3 Tons Edible Tube Ice Making Machine With Economic Packing SystemUS$ 10,000 - 100,000MOQ: 1 Set
Specifications
1 Name: Tube Ice Machine2 Material: SUS304
3 Widely Used: Bar, Wiskey, Restraunt, Drinks
4 Tube Ice: Cylinder with hole

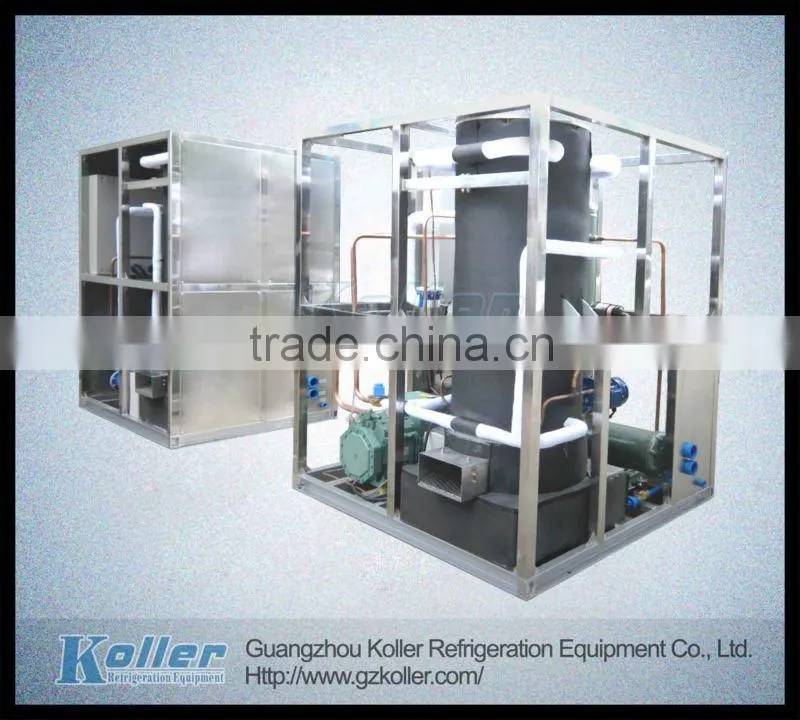

CE-Approved commercial used edible tube ice machine For Asia TV30
Product Features:
1. Harvest ice way: Hot gas defrost

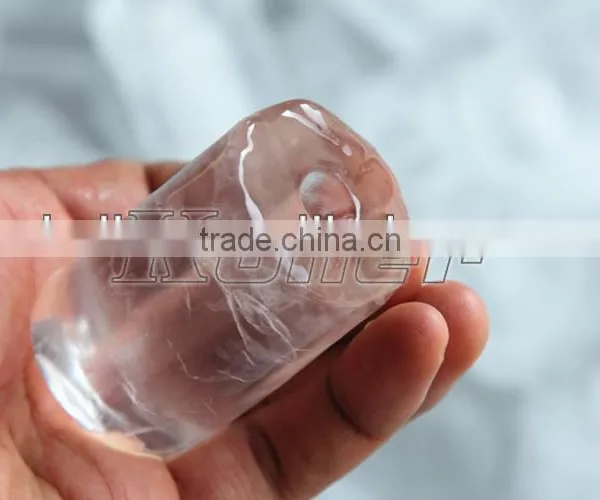

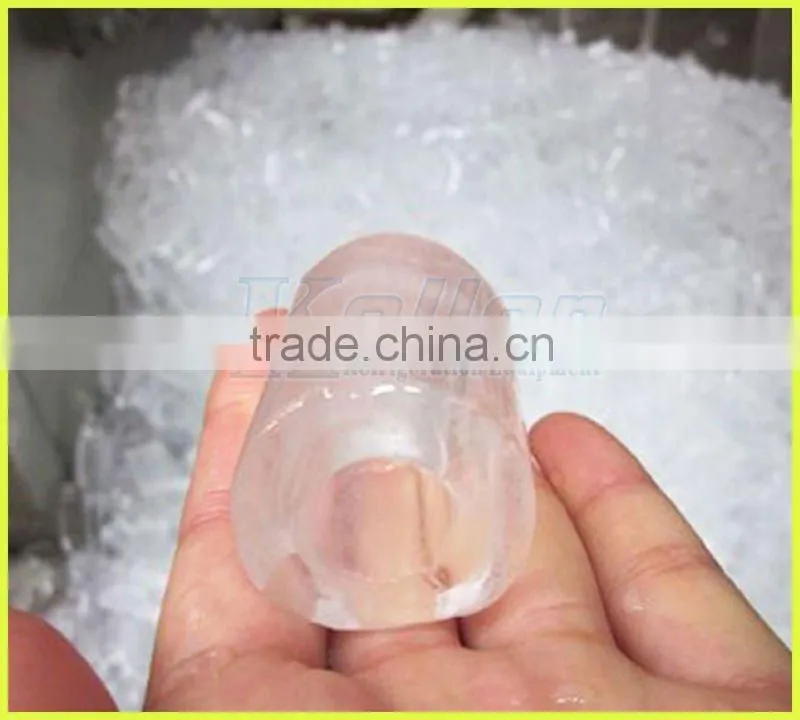

2. Ice tube Size: 28mm, or 34mm in diameter; hollow and transparent ice.
3. Evaporator: tube vessel, its top and bottom part was welded with quality joining.

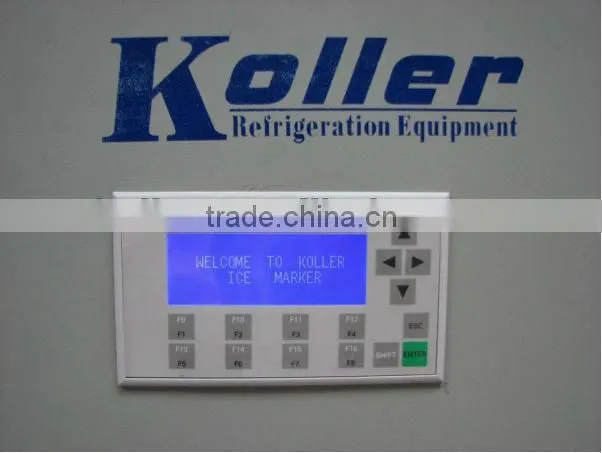

4. PLC program Logic Controller, which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.
5. Rotating Driver Ice Cutter: stainless steel 304 Ice Cutter Blade run by medium speed gear motor.
6. Install according to the operation manual and CD, Supply failure alarming system, and no requirement of skilled workers, high durability, and minimum maintenance.

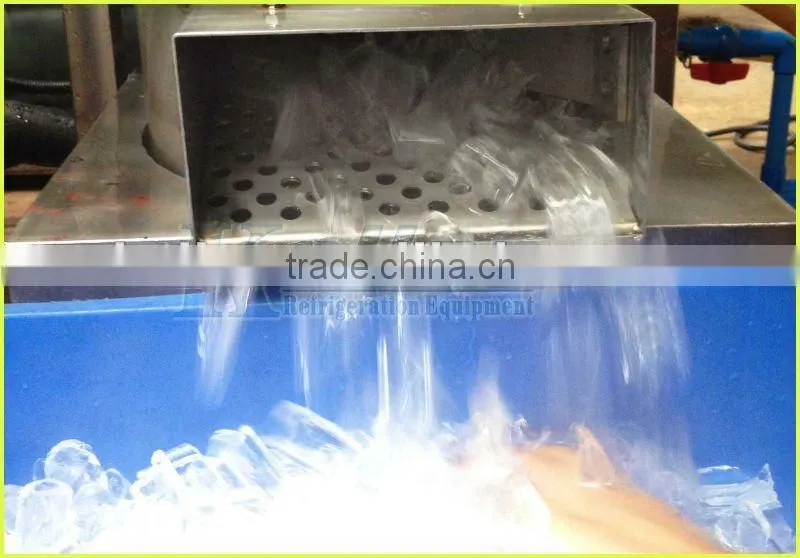

7. Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags.
Main Components for tube ice machine:
Item |
Name of Components |
Brand Name |
Original Country |
1 |
Compressor |
BITZER/REFCOMP |
Germany/Italy |
2 |
Ice Maker Evaporator Grid |
KOLLER |
China |
3 |
Water cooled condenser |
KOLLER |
|
4 |
Refrigeration components |
DANFOSS/CASTAL |
Denmark/Italy |
5 |
PLC Program control |
SIEMENS |
Germany |
6 |
Electrical components |
LG (LS) |
South Korea |
Installation:
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2). Installing by Koller engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
(5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.

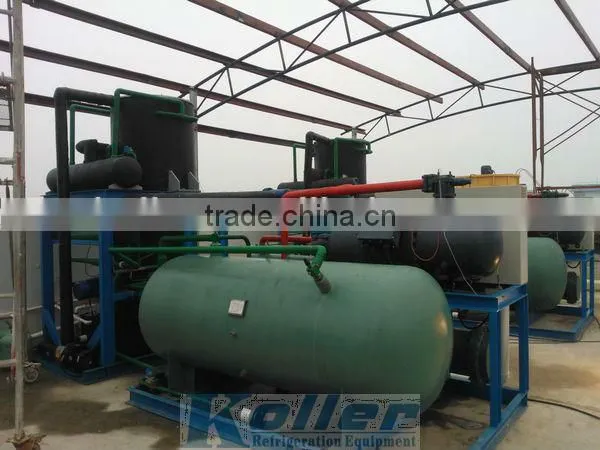

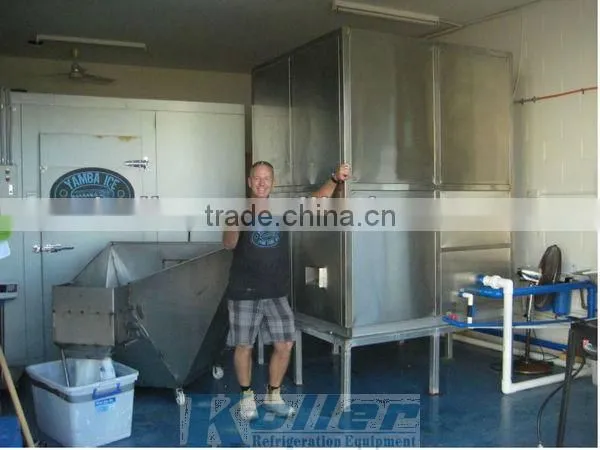

Project Case
Some Certificates:
