Specifications
Tube ice machine:1.Stainless steel 304 material
2.PLC program central control
3.For daily using, vegetable fresh-keeping
Based On Specialized Knowledge Pursuing Superiority

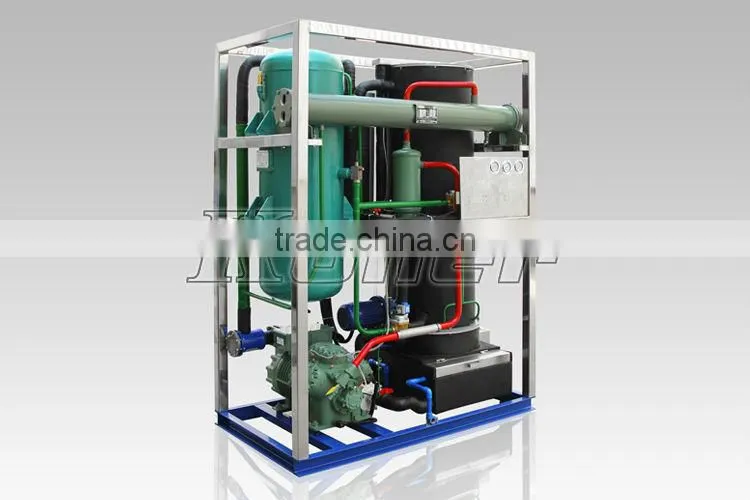

TV50 Tube Ice Machine
Product Features:
1. Harvest ice way: Hot gas defrost
2. Ice tube Size: 20mm, 28mm, 34mm or 40mm in diameter; hollow and transparent ice.
3. Evaporator: tube vessel, its top and bottom part was welded with quality joining.
4. PLC program Logic Controller, which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.
5. Rotating Driver Ice Cutter: stainless steel 304 Ice Cutter Blade run by medium speed gear motor.
6. Install according to the operation manual and CD, Supply failure alarming system, and no requirement of skilled workers, high durability, and minimum maintenance.
7. Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags.
Main Components for tube ice machine:
Item |
Name of Components |
Brand Name |
Original Country |
1 |
Compressor |
BITZER/COPELAND |
Germany/US |
2 |
Ice Maker Evaporator Grid |
KOLLER |
China |
3 |
Water cooled condenser |
KOLLER |
|
4 |
Refrigeration components |
DANFOSS/CASTAL |
Denmark/Italy |
5 |
PLC Program control |
SIEMENS |
Germany |
6 |
Electrical components |
LG (LS) |
South Korea |
Technical information:
|
TV10 |
TV20 |
TV30 |
TV50 |
TV100 |
|
Ice Capacity (kg/24hours) |
1000 |
2000 |
3000 |
5000 |
10000 |
|
Compressor Power (KW) |
3 |
6 |
9 |
18.75 |
37.5 |
Cutting Motor(KW) |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
|
Dimension (L*W*H) (mm) |
1640*1380*2010 |
1550*910*2010 |
1680*950*2450 |
1790*1080*2450 |
2100*1830*2500 |
Cooling way |
water cooling |
Air cooling |
Air/Water cooling |
Water cooling |
Water cooling |
Supply Power Form: 380~420V, 50Hz, 3P or 220~240V, 60Hz, 3P.
Cooling System:Water-cooled system or Air-cooled system.
Guarantee Period:
During 12 months after selling, maintenance and parts free of charge.
Water-cooled TV50 tube ice machine with water-cooling tower pictures:
Installation:
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2). Installing by Koller engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
(5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.
Tube Ice
Why choose us?
So far, we have exported ice machines to more than 150 countries in the world
Our clients is widely-spread in over 150 countries like Malaysia, Philippine, Indonesia, Vietnam, Papua New Guinea, Australia, Fiji, French Polynesia, South Korea, Cyprus, Greece, Belgium, Croatia, Ireland, UK, Jordan, Iran, Syria, Saudi Arabia, Bahrain, Lebanon, Sudan, Nigeria, Angola, Congo, Guinea, Guinea Bissau, Ghana, Cote D'Ivoire, South Africa, Mozambique, Tanzania, Venezuela, Surinam, Chile, Haiti and so on.
Excellent Brand of Chinese Ice Machine Industry.
The Drafting Committee of National Ice Machine Industry Standard.
Produce & Academic Research Strategy Cooperating Partner with Tsinghua University.
Independent after-sales department, 10 engineers are ready to service abroad.
Welcome your visit to our Koller company!
And please contact us to know more. We are always online at your service. It is our great pleasure to offer our best quality, competitive price and best service to you!
