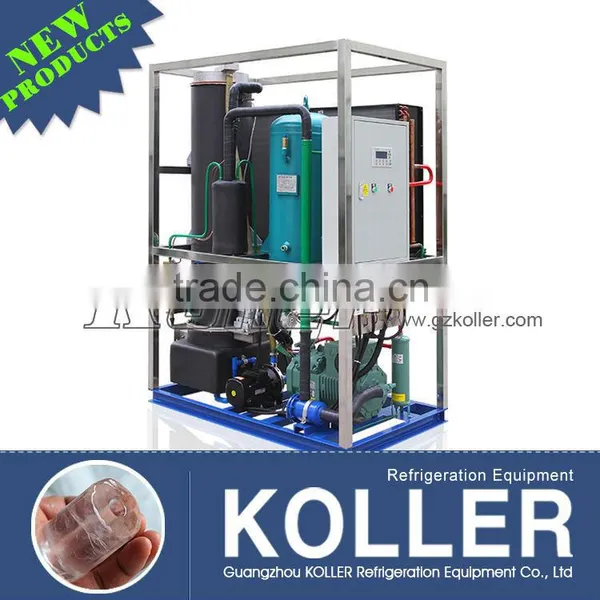

Transparent Tube Ice Machine with PLC System(2tons/day)
Basic parameter
No. |
Name |
Technical Data |
|
1 |
Daily capacity |
1 tons/24h |
|
2 |
Material for framework |
Stainless steel 304 |
|
3 |
Material for evaporator |
Stainless steel 304 |
|
4 |
Tube ice size |
28 mm or 34mm in diameter |
|
5 |
Compressor |
Brand name |
Semi-hermetic, Bitzer compressor |
Horse power |
4 HP (3 KW) |
||
Quantity |
1 set |
||
6 |
Measurement |
Before packing |
1600mm(L)*1350mm(W)*2010mm(H) |
Power issues for ice tube machine TV10 | |||
1 |
Compressor power |
3 Kw |
|
2 |
Circulated water pump power |
0.75 KW |
|
3 |
Ice cutter motor power |
0.37 KW |
|
4 |
Cooling fan motor |
0.36 KW |
|
5 |
Running Voltage |
220V 3P 60Hz or 380 V 3P 50Hz |
|
6 |
Running Ampere for different refrigerant |
21.5A [R404a] 20A [R22] |
|
|
Power consumption: 80~85 KW*H making 1Ton ice; Water consumption: 1 Ton water can make 1Ton ice. | |||

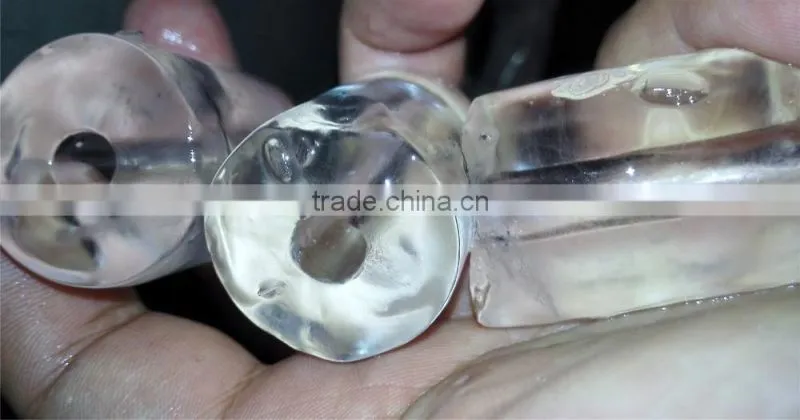

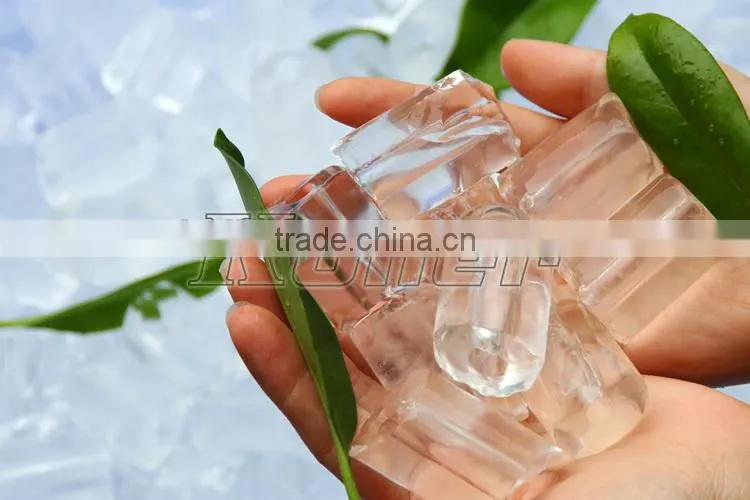

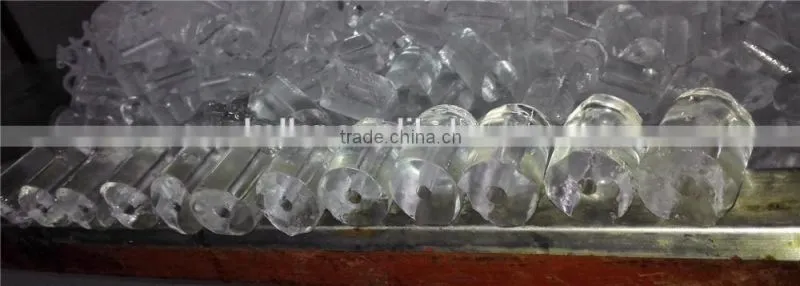

Ice tube diameter: 28mm or 34mm

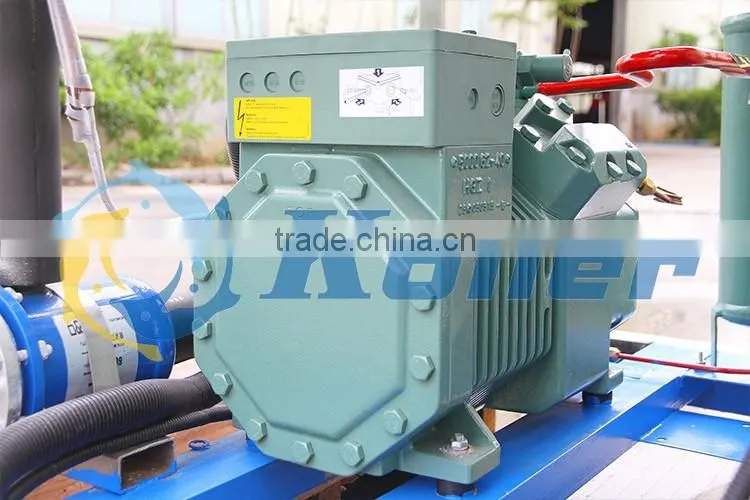

With Germany Bitzer compressor

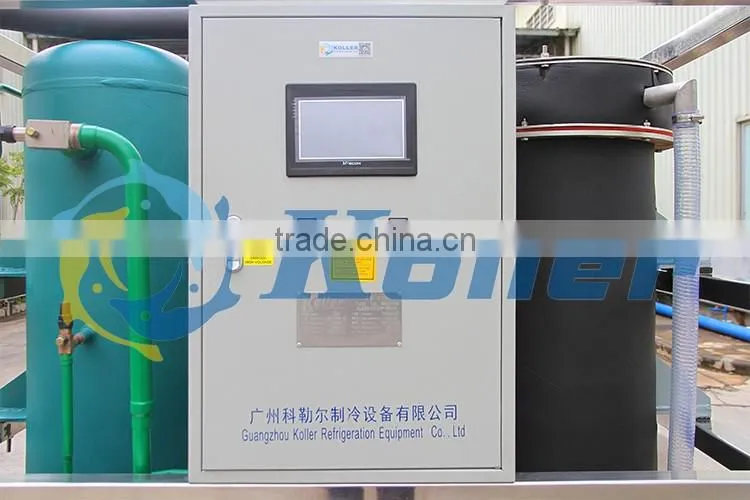

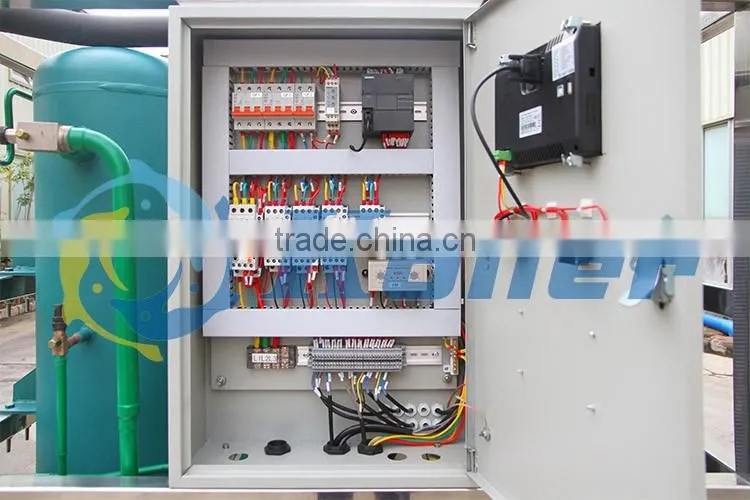

Germany SIEMENS PLC controlling system
With touch screen design
Terms of Payment:
T/T. 50% of total value as advanced payment, the 50% balance should be paid before shipping.
Installation:
We will test and install the machine before shipping; you need to be ready for connecting the water pipes and power. The operation manual and CD are provided to guide the installation. Meanwhile, if the buyer needs us to send engineer for installation in your place, the buyer affords the tickets, accommodation and food for the engineer, free of charge within 3 days for installation.
Warranty period:
12 months for the machine after delivery. The spare parts are provided with machine free of charge.

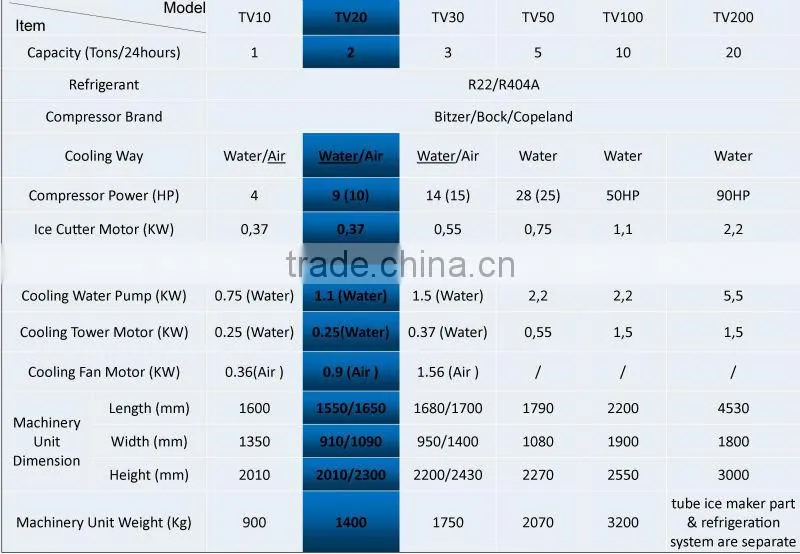

Other capacity
