Compact Design

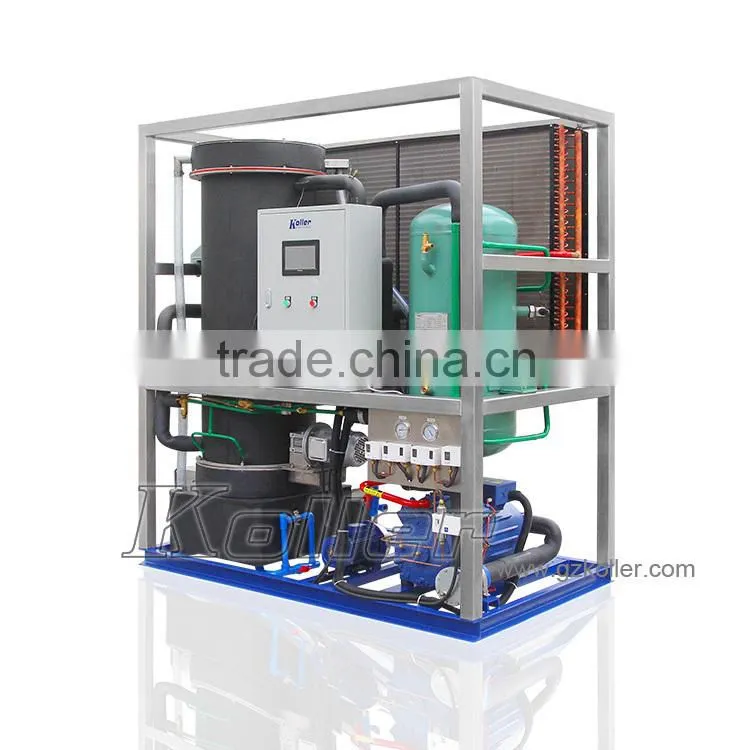

Air Cooled Type Tube Ice Making Machine 3 Tons Per Day
1. Working condition |
|
|
|
|
|
1. Max. Ambient temp. |
+40℃ |
|
2.Max relative humidity |
85% |
|
3.Supply water temp |
21℃ |
|
4.Condenser temp |
40℃ |
|
5. Evaporating temp. |
-15℃ |
|
6.Power supply |
380V 3P 50Hz or 220V 3P 60Hz |
|
7.Refrigerant |
R404a, Eco-friendly or R22 |
|
8.Compressor type |
Semi-hermetic piston compressor |
|
9.Cooling system |
Air cooling condenser |
|
2. Basic parameter |
|
No. |
Name |
Technical Data |
|
1 |
Daily capacity |
3 tons/24h |
|
2 |
Material for framework |
Stainless steel 304 |
|
3 |
Material for evaporator |
Stainless steel 304 |
|
4 |
Tube ice size |
28mm or 34 mm in diameter |
|
5 |
Compressor |
Brand name |
Semi-hermetic, Bitzer or Bock compressor |
Horse power |
9 HP |
||
Quantity |
1 set |
||
6 |
Measurement |
Before packing |
1650mm(L)*1090mm(W)*2300mm(H) |
Power issues for ice tube machine TV30 | |||
1 |
Compressor power |
9 HP |
|
2 |
Circulated water pump power |
0.75 KW |
|
3 |
Ice cutter motor power |
0.37 KW |
|
4 |
Cooling fan motor |
0.9 KW |
|
5 |
Running Voltage |
380V 3P 50Hz or 220V 3P 60Hz |
|
6 |
Running Ampere |
35.5A [R404a] |
|
Note:The above data is just for your reference and is subjected to final design.

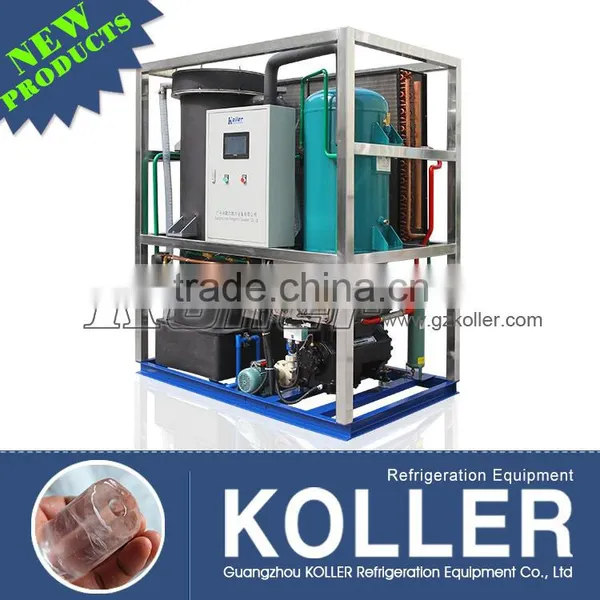

TV30 tube ice machine is all in one design: every part has been well connected, you give need give it a power and ice making water supply, and then it can be put into production.

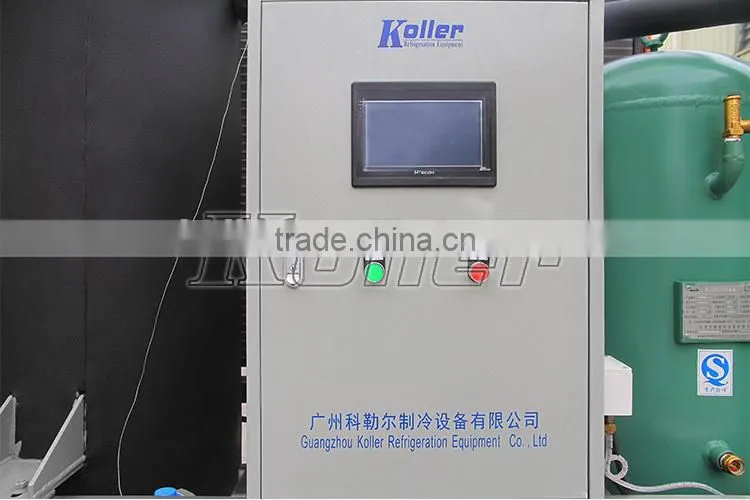

Controlling system:
Germany SIEMENS PLC+ Touch screen
Ice bin design for Ice storage/packing:
The ice bin designed with a screw system, and controlled by the motor, when you need ice, need just step on the pedal swith, then ice can be dischraged.
Very convenient for ice plant ice packing needs.
Ice storage:
We can also provide you a cold room for the packed ice tube preserve
The cold room volume will be decided according to the tube ice machine's daily capacity.
Terms of Payment: T/T. 50% of total value as advanced payment, the 50% balance should be paid before shipping.
Installation: We will test and install the machine before shipping; you need to be ready for connecting the water pipes and power. The operation manual and CD are provided to guide the installation. Meanwhile, if the buyer needs us to send engineer for installation in your place, the buyer affords the tickets, accommodation and food for the engineer, free of charge within 3 days for installation.
Warranty period: 12 months for the machine after delivery. The spare parts are provided with machine free of charge.
Notice:
To have a ice tube plant, except the ice tube machine/ice bin /cold room, the most essential is the power and water supply at the install place.
First,
as our ice tube machine should run under the three phase industrial voltage, in most Latin American contry, the power form is 220V,60Hz,3P
Second,
The water supply, to make the ice tube for human consumption, will need a clean water source
Please leave your inquiry to us, we will give you more specifications.
