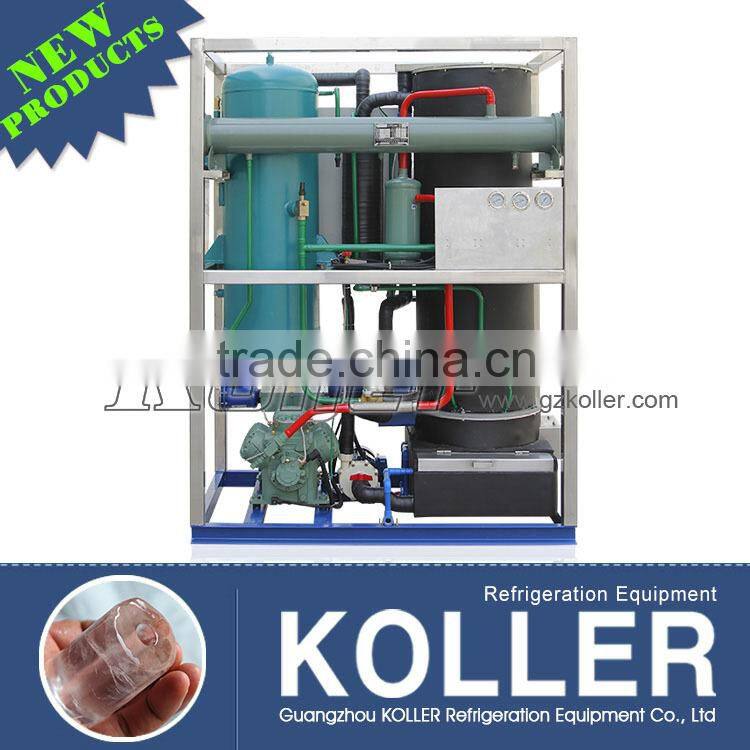

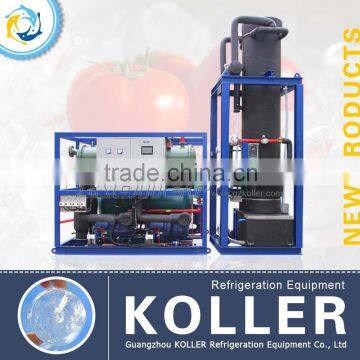

CE Approved 5 Tons Tube Ice Maker with PLC Program Controller
Koller ice tube machine structure and ice making theory
Koller TV series tube ice machine is a type ice machine, which produces cylinder shape ice with a hole in the middle; it adopts flooded evaporator model, which improves ice making efficiency and capacity. Meanwhile, compact structure design can save installation space. Ice thickness and hollow part size can be adjusted according to customer requirements. Under PLC program control system to work automatically, the machine has high capacity, low-power consumption and minimal maintenance.
The mainframe adopts SUS304 stainless steel. It can put the food directly into the production room which cover a small area, low production cost, high frozen efficiency, save energy, short installation period and easy to operate.
The ice is quite thick and transparent, beautiful, long storage, not easy to melt, fine permeability.
Main application: daily using, vegetable fresh-keeping, pelagic fishery fresh-keeping, chemical processing, building projects and other places need to use ice.
Technical Parameter:
| ||||||||
TV10 |
TV20 |
TV30 |
TV50 |
TV100 |
TV200 |
|||
Capacity (Tons/24hours) |
1 |
2 |
3 |
5 |
10 |
20 |
||
Refrigerant |
R22/R404A |
|||||||
Compressor Brand |
Bitzer/Bock/Copeland |
|||||||
Cooling Way |
Air |
Air |
Water |
Water |
Water |
Water |
||
Compressor Power (HP) |
4 HP |
9 HP |
14 HP |
28 |
50HP |
90HP |
||
|
Ice Cutter Motor (KW) |
0.37 |
0.37 |
0.55 |
0.75 |
1.1 |
2.2 |
||
Circulating Water Pump (KW) |
0.55 |
0.75 |
1.1 |
1.5 |
1.5 |
3 |
||
Cooling Water Pump (KW) |
1.5 |
2.2 |
2.2 |
5.5 |
||||
Cooling Tower Motor (KW) |
0.37 |
0.55 |
1.5 |
1.5 |
||||
Cooling Fan Motor (KW) |
0.36 |
0.9 |
/ |
/ |
/ |
|||
Machinery Unit Dimension |
Length (mm) |
1600 |
1550 |
1700 |
1790 |
2200 |
4530 |
|
Width (mm) |
1350 |
910 |
1400 |
1080 |
1900 |
1800 |
||
Height (mm) |
2010 |
2010 |
2430 |
2270 |
2550 |
3000 |
||
Machinery Unit Weight (Kg) |
900 |
1400 |
1750 |
2070 |
3200 |
Seperated | ||
Refrigerant : R22/R404A;
Supply Power: 380V~420V, 50Hz/, 3P; 220V~240V/380V, 60Hz, 3P; 440V~480V, 60Hz, 3P;
Working Conditions: Input Water Temp: 21℃; Evaporating Temp: -15℃; Condensing Temp: 40℃;
(Notice: the actual ice production will be changed with input water temp and ambient temp.)
Koller reserve the final explanation to the products technique parameter, model and specifications can be subject to change without notice.
1, Main Components
Item |
Name of Components |
Brand Name |
Original Country |
1 |
Compressor |
BITZER/BOCK |
Germany |
2 |
Ice Maker Evaporator Grid |
KOLLER |
China |
3 |
Water cooled condenser |
KOLLER |
|
4 |
Refrigeration components |
DANFOSS/CASTAL |
Demark/Italy |
5 |
PLC Program control |
SIMENS |
Germany |
6 |
Electrical components |
LG (LS) |
South Korea |
2. Supply Power Form:
Germany Imported GEA BOCK compressor for 380V, 50Hz, 3P ;
Germany BITZER compressor for 220V, 60Hz, 3P.
3. Cooling System: Water cooled system. The cooling tower should be install outside
4. Controlling System: Germany SIEMENS PLC + Touch screen
Ice bin design for Ice storage/packing:
The ice bin designed with a screw system, and controlled by the motor, when you need ice, need just step on the pedal swith, then ice can be dischraged.
Very convenient for ice plant ice packing needs.
Ice storage:
We can also provide you a cold room for the packed ice tube preserve
The cold room volume will be decided according to the tube ice machine's daily capacity.
Terms of Payment: T/T. 50% of total value as advanced payment, the 50% balance should be paid before shipping.
Installation: We will test and install the machine before shipping; you need to be ready for connecting the water pipes and power. The operation manual and CD are provided to guide the installation. Meanwhile, if the buyer needs us to send engineer for installation in your place, the buyer affords the tickets, accommodation and food for the engineer, free of charge within 3 days for installation.
Warranty period: 12 months for the machine after delivery. The spare parts are provided with machine free of charge.
Notice:
To have a ice tube plant, except the ice tube machine/ice bin /cold room, the most essential is the power and water supply at the install place.
First,
as our ice tube machine should run under the three phase industrial voltage, in most Latin American contry, the power form is 220V,60Hz,3P
Second,
The water supply, to make the ice tube for human consumption, will need a clean water source
Please leave your inquiry to us, we will give you more specifications.
