CV1000 |
CV2000 |
CV3000 |
CV5000 |
CV10000 |
|
Ice Capacity (kg/24hours) |
1000 |
2000 |
3000 |
5000 |
10000 |
|
Compressor Power (KW) |
3.00 |
6.00 |
9.00 |
18.75 |
37.50 |
|
Cutting Motor (KW) |
0.75 |
0.75 |
1.1 |
1.1 |
1.5 |
|
Dimension (L*W*H) (mm) |
1680*1200*1960 |
1730*1520*2040 |
2100*1930*2030 |
3060*1920*2020 |
5880*2050*2100 |
Cooling way |
Air/Water cooling |
Air/Water cooling |
Water cooling |
Water cooling |
Water cooling |
1. FOOD STANDARD. As we use SUS304 for the frame and outer shell plate and use Nickel-plate Brass material for producing ice maker (ice grids). The whole processing of cube ice reaches the international standard for food security.
2. Low power consumption. To produce 1 tons cube ice, only consum70-75KW.H. for the Auto control with PLC, not only make the operation with much joy, but also with lower enery cousumption .
3. Labor saving: whit the PLC and ice bin, the machine can produce ice cube automatilcally, and we can packing the ice cubes easily with the semi automatic packing system.
4. Saving space. The design of our whole cube ice machine is optimized and compact.
5. Longer service life span: the SUS material can not only give the ice a good environment, but also ensure itself a longer service life.
With our unparalleled design of the water cycling system, we solved tube`s white problem ,and the transparent is ensured.
The thickness can be adjusted as you need,
Widely used in fishery or cool drinks. It is the best choice for bars, hotel, restaurant .
there are 2 cube size may just ask for your needs :22mm *22mm *22mm &29mm *29mm* 22mm

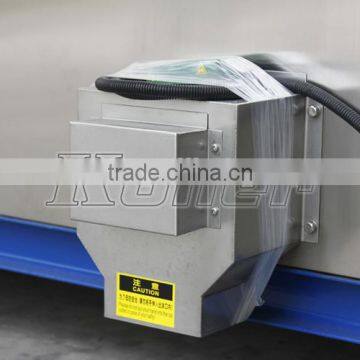

ice discharge screw system.not only for ice discharge, but also can dispense the ice cubes
the sealing machine , also designed with a pedal bar, the bag can be easily sealed. and then you can preserved the ice cubes into a cold room or sell it directly.
Installation:
Installing by Koller engineers:We can send our engineer to assist the installation and provide technical support and train your workers
You can also Installing by yourself: we can provide the step video for you till you can make a profit with CV5000. To connect the three part, what you should do is just give it a power supplier and connect the pipes between the cooling tower and the condensor.and give the cycling pump a clean water source.
Guarantee Period
During 12 months after selling, maintenance and parts free of charge.Even Guarantee Period is due, we will keep in touch with you, for we are here , we won`t let the machine stop running.
Project case:
Our Machine have been widely adpoted by ice plants and other projects all over the world.
