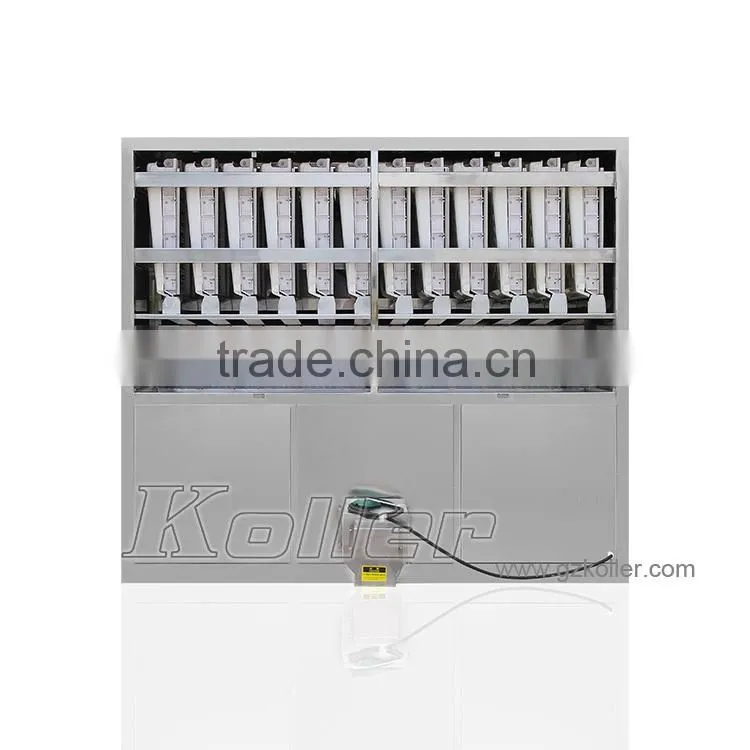

Cube Ice Making Machine(3tons/day) for Hotels CV3000

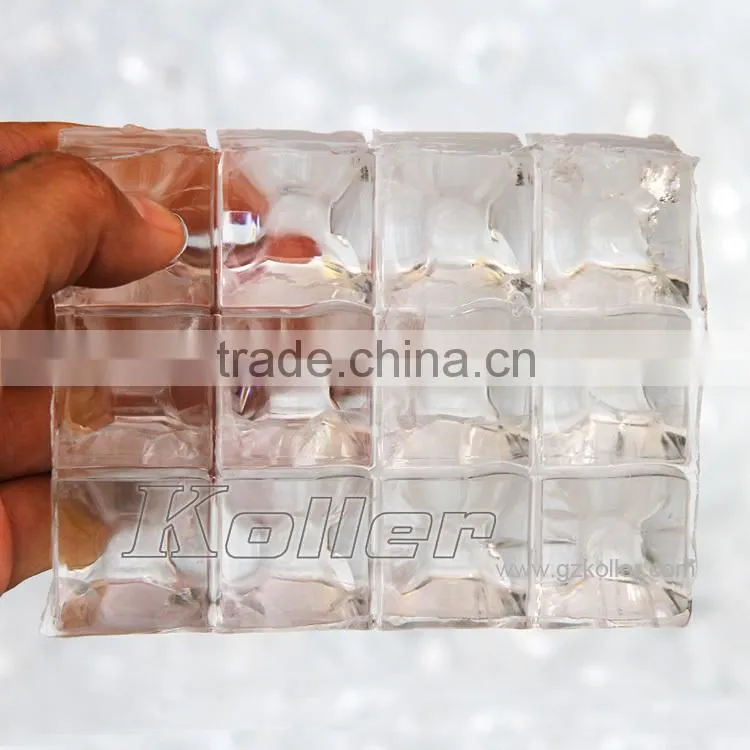

1. Cool Ice Cubes.
The ice cubes are totally edible for drinking, will bring a cool summer in the hot season.
cube ice size:22mm*22mm*22mm or 29mm*29mm*22mm
2. CV3000 cube ice machine specification:

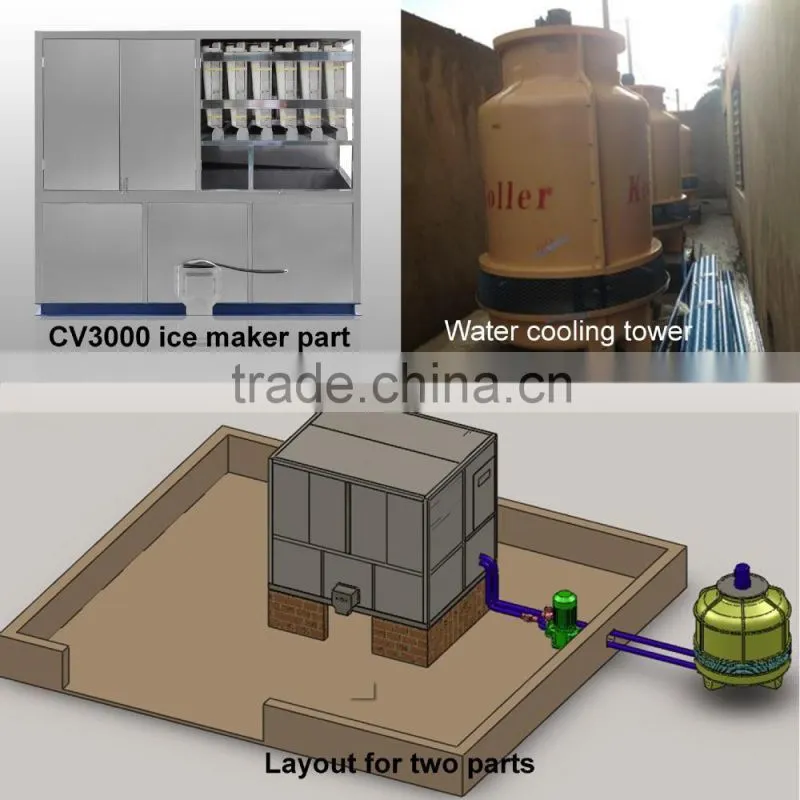

- Machinery unit: 2080mm*1920mm*2030mm
- Cooling tower: 1830mm*1830mm*2035mm
3. Product Description

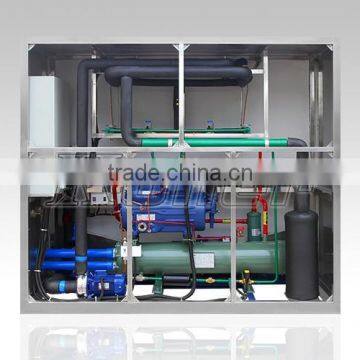

- Reasonable design for the framework structure withstainless steel 304, save space, and easy to install;
- Greatly save energy, only 80-85KW*H are consumed to produce one-ton ice;
- Equipped with Siemens PLC central program control, which allows multiple functions such as automatic machine start and shut down; ice stopping production when the ice bins are full, Automatic water making up;
- Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags;

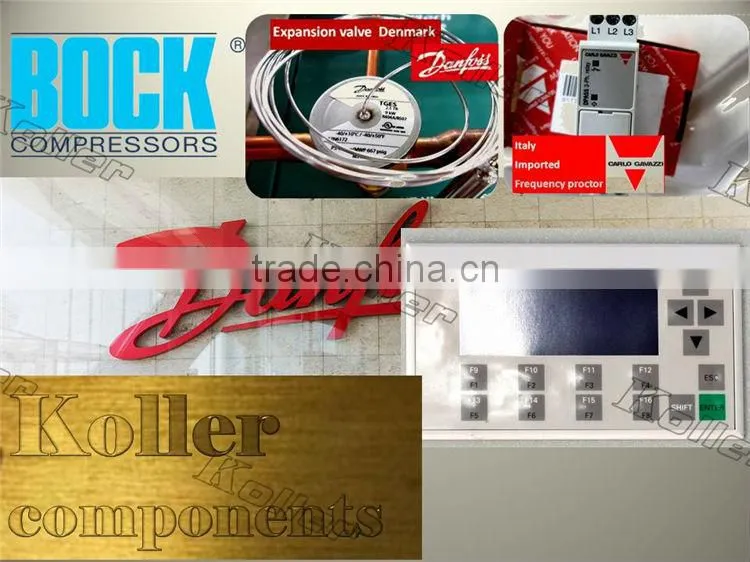

- Adopts the world's famous brand components, which will grantee the best refrigeration effect and working condition.
Item |
Name of Components |
Brand Name |
Original Country |
1 |
Compressor |
BITZER |
Germany |
2 |

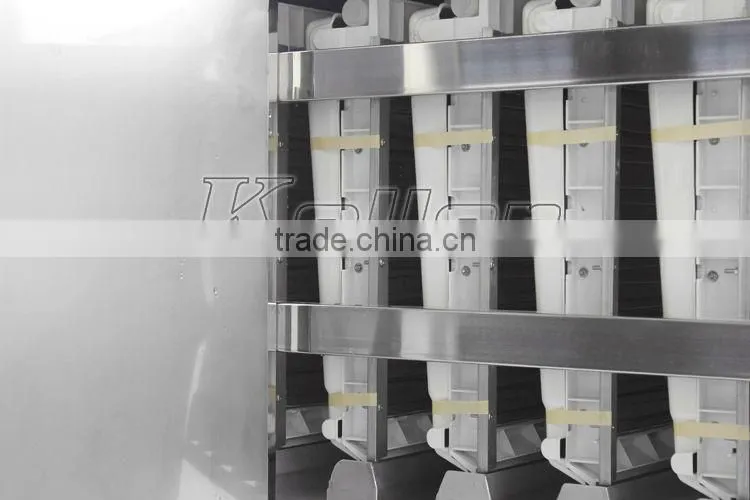

Ice Maker Evaporator Grid |
KOLLER |
China |
3 |
Water cooled condenser |
KOLLER |
|
4 |
Refrigeration components |
DANFOSS/CASTAL |
Demark/Italy |
5 |
PLC Program control |
SIMENS |
Germany |
6 |
Electrical components |
LG (LS) |
South Korea |
Packing system:We offer Stainless steel Digital Scale and sealing Machine to pack the cube ice.
Working condition for ice block machine:
Max. Ambient Temp |
+40°C |
Max Relative Humidity |
85% |
Supply water temp |
21°C |
Power supply |
380V 50/60HZ 3P or 220V 60HZ 3P |
Refrigerant |
R22/R404a |
Compressor type |
Semi-hermetic piston |
Cooling system |
Water cooling condenser |
1. Each set is wrapped in plywood case.
2. We will install and test the machine for you before shipping, so that you just need to connect the water pipes and power. All necessary parts for installation are offered free of charge when delivery.

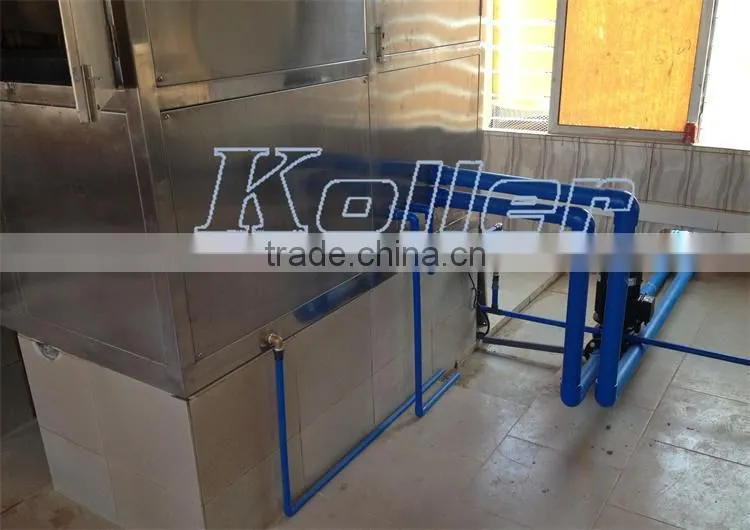

4. Installation for cube ice machine:
1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by Koller engineers:
- (1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
- (2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared. Meanwhile, we will provide you a Tool List with the machine when delivery.
- (3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
- (4) 2~ 3 workers are required to assist the installation for big project.
- (5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.
5.Warranty:
- 12 months warranty after delivery.
- Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
- Over 10 engineers available to service machinery overseas.
- Free spare parts replacement within warranty period.
- Beyond guarantee period, we will charge market price for spare parts.
6. Why choose us?
- So far, we have exported ice machines to 150 countries in the world.
Our clients is widely-spread in over 150 countries like Malaysia, Philippine, Indonesia, Vietnam, Papua New Guinea, Australia, Fiji, French Polynesia, South Korea, Cyprus, Greece, Belgium, Croatia, Ireland, UK, Jordan, Iran, Syria, Saudi Arabia, Bahrain, Lebanon, Sudan, Nigeria, Angola, Congo, Guinea, Guinea Bissau, Ghana, Cote D'Ivoire, South Africa, Mozambique, Tanzania, Venezuela, Surinam, Chile, Haiti and so on.
- Excellent Brand of Chinese Ice Machine Industry.
- The Drafting Committee of National Ice Machine Industry Standard.
- Produce & Academic Research Strategy Cooperating Partner with Tsinghua University.
- Independent after-sales department, 8 engineers are ready to service abroad.
