Koller Hot sale 2 tons per day cube ice machine for cooling drinks
Dear friend,
To create your own ice making business, it not easy.
But with our cube ice machine , it is possible,
because it`s different patent design.
We can provide you a investment plan for you, if you don`t
know where to start with.
Ice cube machine

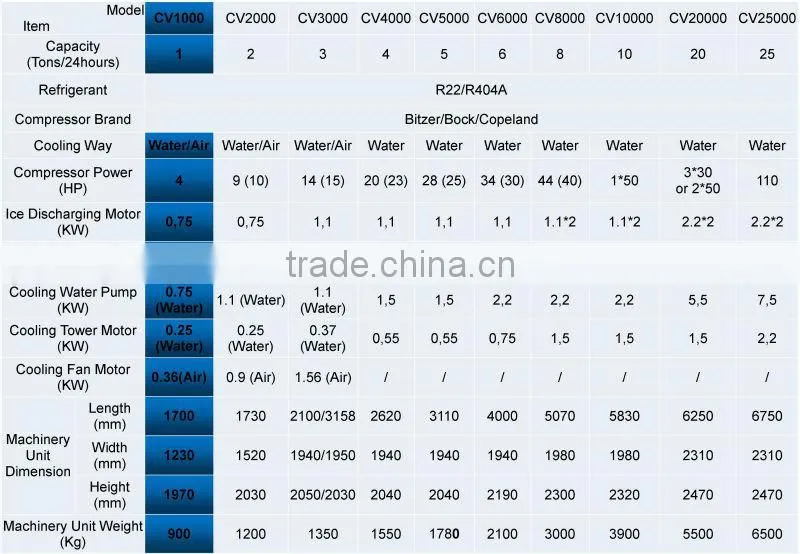

Capacity: from 1 ton to 25 tons per day.
Production place: Guangzhou China
Ice feature: cubic /transparent/ even thickness
Application: bars /hotel/beverage store/supermarket
Service life: more than10 years with good maintenance
Standard voltage: 380V/50Hz/3P, 220V/60Hz/3P
Refrigerant: R22 or R404a

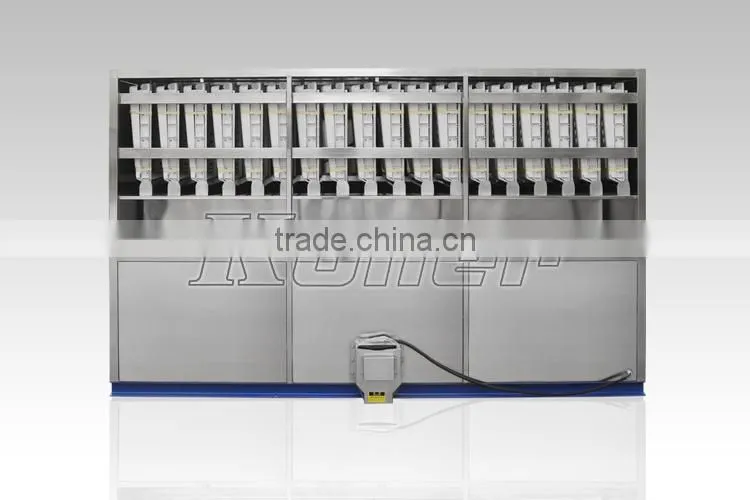

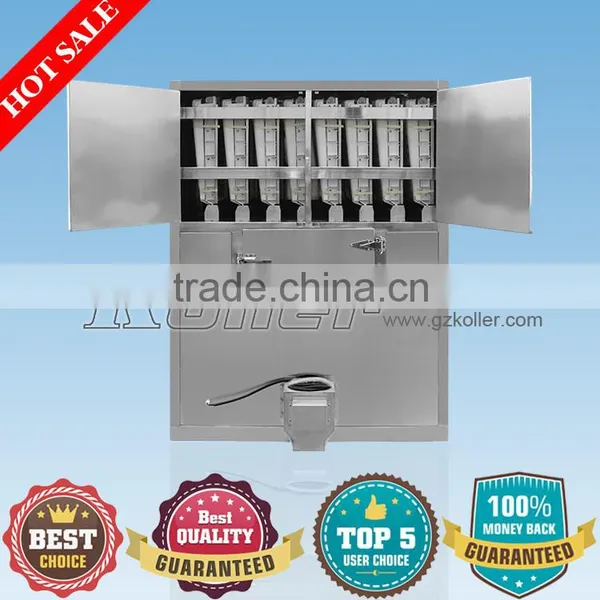

CV2000 cube ice machine
Capacity :2 ton per day

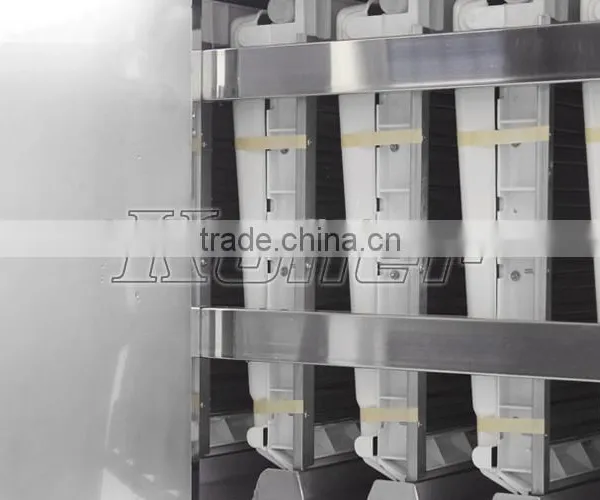

Ice grids : 18 pcs
Cube size: 22*22*22mm or29*29*22mm
Ice making time: 20 or 23 min per shift
Cooling way: water cooling
Material :SUS 304
Compressor: Bitzer/Copeland
Working condition for ice block machine:
Max. Ambient Temp |
+40°C |
Max Relative Humidity |
85% |
Supply water temp |
21°C |
Power supply |
380V 50/60HZ 3P or 220V 60HZ 3P |
Refrigerant |
R22/R404a |
Compressor type |
Semi-hermetic piston |
Cooling system |
Water cooling condenser |
Koller ice cube machine highlights
1.The capacity 100% reached is under run condition far above the international standard(water temp:16 ℃,ambient temp:21℃).
our standard is :water temp:21 ℃,ambient temp:25 ℃.

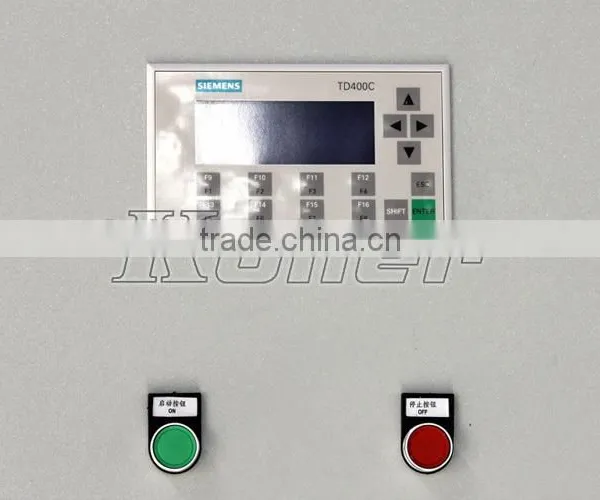

2.Siemens PLC control, from the ice making to ice falling, can be accomplished automatically.
3.Semi-automatic ice packing system, save you time and labor
4.Stainless steel 304, ensure you both the sanitary and longer service life to be more than 10 years.
5.Compact design, take your little place.
6.Fast harvest, only 20 to 23 min , can harvest the delicious ice cubes
7.Thickness adjusted easily , through the water supply box, the thickness can be adjust along the float ball level.
Item |
Name of Components |
Brand Name |
Original Country |
1 |
Compressor |
BITZER |
Germany |
2 |

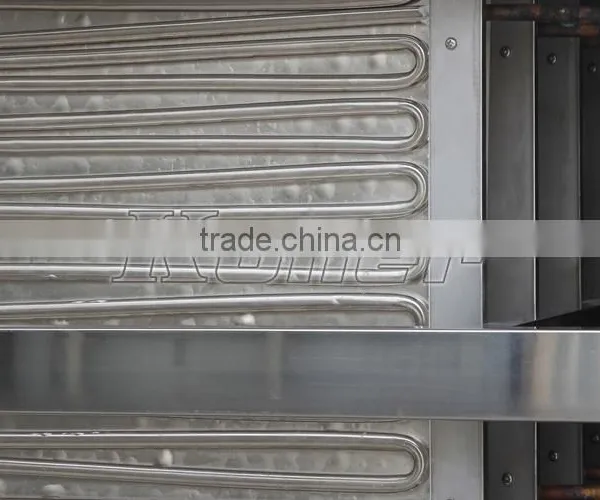

Ice Maker Evaporator Grid |
KOLLER |
China |
3 |
Water cooled condenser |
KOLLER |
China |
4 |
Refrigeration components |
DANFOSS/CASTAL |
Demark/Italy |
5 |
PLC Program control |
SIMENS |
Germany |
6 |
Electrical components |
LG (LS) |
South Korea |
With our unparalleled design of the water cycling system, we solved cube`s white problem ,and the transparent is ensured.
It is the best choice for bars, hotel, restaurant .

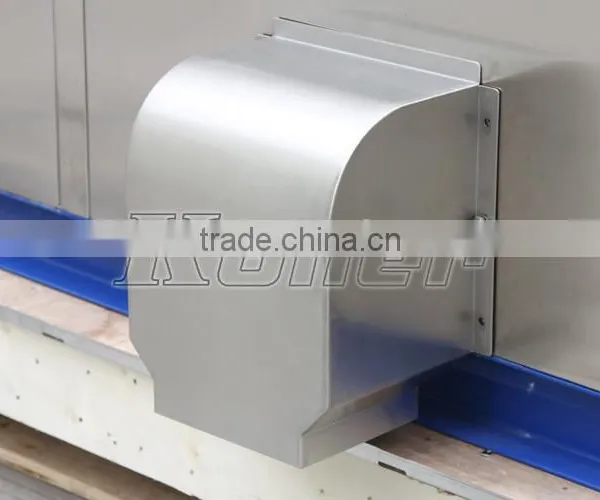

Ice discharge screw system. Not only for ice discharge, but also can dispense the ice cubes.
to make a distinction between the little capacity ice cube machine, this equipment can be greatly save both labor and time for the ice packing.
Free installation service
Installing by Koller engineers: We can send our engineer to assist the installation and provide technical support and train your workers
You can also Installing by yourself: we can provide the step video for you till you can make a profit with CV5000. To connect the three part, what you should do is just give it a power supplier and connect the pipes between the cooling tower and the condenser. and give the cycling pump a clean water source.
Guarantee Period
During 12 months after selling, maintenance and parts free of charge. Even Guarantee Period is due, we will keep in touch with you, for we are here , we won`t let the machine stop running.
Why choose us?
- So far, we have exported ice machines to 150 countries in the world.
Our clients is widely-spread in over 150 countries like Malaysia, Philippine, Indonesia, Vietnam, Papua New Guinea, Australia, Fiji, French Polynesia, South Korea, Cyprus, Greece, Belgium, Croatia, Ireland, UK, Jordan, Iran, Syria, Saudi Arabia, Bahrain, Lebanon, Sudan, Nigeria, Angola, Congo, Guinea, Guinea Bissau, Ghana, Cote D'Ivoire, South Africa, Mozambique, Tanzania, Venezuela, Surinam, Chile, Haiti and so on.
- Excellent Brand of Chinese Ice Machine Industry.
- The Drafting Committee of National Ice Machine Industry Standard.
- Produce & Academic Research Strategy Cooperating Partner with Tsinghua University.
- Independent after-sales department, 8 engineers are ready to service abroad.
FAQ:
1. How to choose a true manufactuerer among hundreds of suppliers?
Step 1: A good supplier should be at least 5 years history and have export/import business at least 3 years. We are 6 year gold supplier in alibaba and specialized in ice machine export since 2004.
Step 2: Request your suppliers to provide their certification of corresponding machines such as CE, ISO9001, UL and so on, it wil help you tell that they are ture manufacturer, trading company or SOHO.
Step 3: Ask supplier to provide more pictures about their facotry and products with their company logo on it. Don't define a manufactuerer with simple picture, they can download some picturers on the internet and claim it is their machines. If the suppliers only show pictures without any logo on it, just pass them.
Step4: If possible and you are willing to, visit the factory and see the workshop.
2. What is the power consumption to produce 1 ton ice?
75-80KWH to produce 1 ton ice blocks.
3. Can your ice maker work with 220V, 50Hz, single phase power?
No, all our ice block machines adopt 3 phases industrial power, such as 380V, 50/60Hz, 3 phases or 220V, 60Hz, 3 phases supply power.
4. Would inlet water temp affect production?
Yes. Our standard input water temperature for the ice block machine is 21 degree, higher the inlet water temperarature, less the capacity.
