Specifications
1,Min. Order: 1 Set2,FOB Price: US $1-100000 / Set
3,Payment Terms: L/C,T/T,Western Union
4,Supply Ability: 50 Sets/month
Ice Block Machine MB200Koller MB Series ice block machines are new-type desiged with high efficiency and stable capacity, performing well in Tropical Area such as Africa, Middle East, and Oceania. The ice block machine adopts separate design for the compressor unit and water tank part and cooling tower, which is easy to install and maintain. Meanwhile you just need to connect the water pipes and power lines.

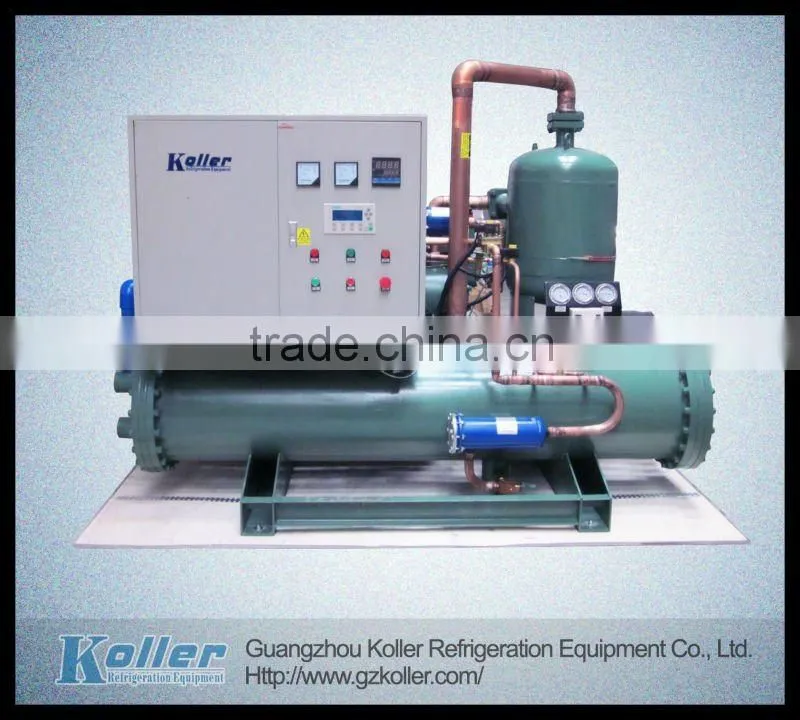

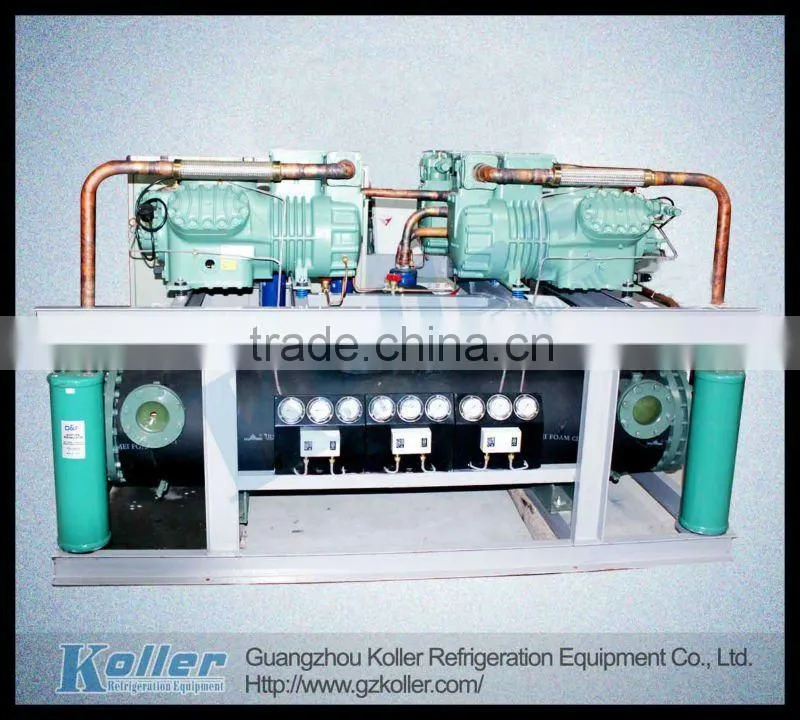

MB200 block ice machinery unit: 2260mm * 1350mm*1330mm;

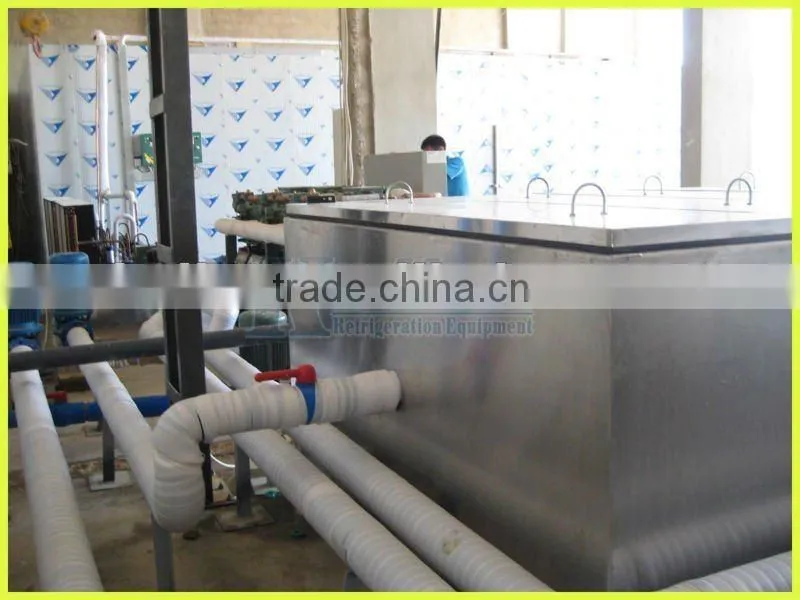

MB200 Water tank: 9380mm* 1770mm*1380mm;

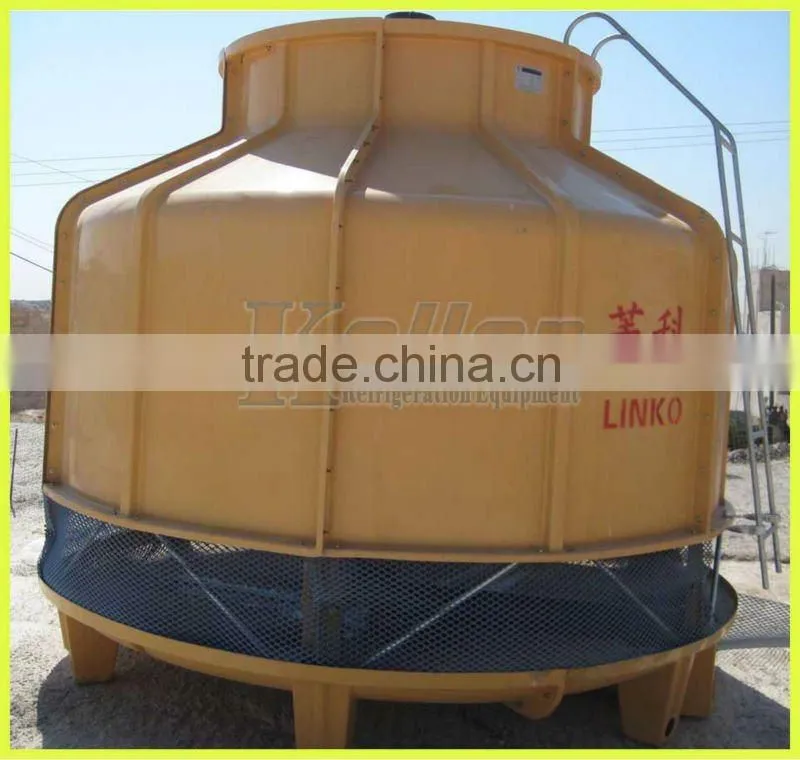

MB200 Cooling tower: 2145mm*2145mm*2035mm.
Model |
Capacity tons/24hours |
Compressor Power (KW) |
Compressor Brand |
Total Power (KW) |
Cooling way |
Outer Dimension |
MB10 |
1 |
4.5 |
Manevrop/Bitzer/ Refcomp |
6 |
Air/water Cooling |
Main unit and water tanK: 2820*1480*1040 |
MB20 |
2 |
8.1 |
Manevorp/Bitzer/ Refcomp |
11 |
Air/water cooling |
main unit:1630*720*1530 Water Tank: 2300*1430*1090 |
MB30 |
3 |
11.1 |
Bitzer/Refcomp/ Copeland |
14 |
Air/Water cooling |
Main unit: 1660*860*1450 water tank: 2460*1550*970 |
MB40 |
4 |
17.2 |
Bitzer/Refcomp/ Copeland |
22.5 |
water cooling |
Main unit: 1630*730*1520 water tank:4000*1356*900 |
MB50 |
5 |
22.1 |
Bitzer/Refcomp/ Copeland |
31 |
water cooling |
main unit:1630*830*1520 water tank:3700*1450*1100 |
MB60 |
6 |
23.5 |
Bitzer/Refcomp/ Copeland |
32 |
water cooling |
main unit:1750*900*1700 water tank:3100*1630*1420 |
MB80 |
8 |
31.4 |
Bitzer/Refcomp/ Copeland |
45 |
water cooling |
main unit: 2000*850*1300 water tank:5200*1850*1100 |
MB100 |
10 |
44.2 |
Bitzer/Refcomp/ Copeland |
58 |
water cooling |
main unit: 2300*1750*1300 water tank: 6000*1750*1300 |
MB150 |
15 |
62.5 |
Bitzer/Refcomp/ Copeland |
78 |
water cooling |
main unit:2300*1750*1300 water tank:8000*2100*1200 |
MB200 |
20 |
84.6 |
Bitzer/Refcomp/ Copeland |
96 |
water cooling |
main unit:2260*1350*1330 water tank: 9380*1770*1380 |
MB250 |
25 |
102 |
Bitzer/Refcomp/ Copeland/Hanbell |
125 |
water cooling |
main unit:2300*1500*1680 water tank: (8250*1980*1350)*2 |
MB300 |
30 |
112 |
Bitzer/Refcomp/ Copeland/Hanbell |
150 |
water cooling |
main unit:2260*1800*1480 water tank:(8770*1770*1125)*2 |
MB350 |
35 |
136 |
Bitzer/Refcomp/ Coepland/Hanbell |
190 |
water cooling |
main unit:2260*1800*1480 water tank:(9000*2100*1200)*3 |
MB800 |
80 |
262 |
Bitzer/Refcomp Copeland/Hanbell |
251 |
water cooling |
main unit:5500*2000*2000 water tank:(11600*2080*1400)*3 |
MB1000 |
100 |
328 |
Bitzer/Refcomp Copeland/Hanbell |
390 |
water cooling |
main unit:5500*2000*2000 water tank:(10000*2080*1400)*4 |
1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by Koller engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
(2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
(5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.
Guarantee Period:
Maintenance and parts are free of charge within 12 months after selling
