Product Details
| Condition: | New | Capacity: | 2 tons/day | Place of Origin: | Guangdong, China |
| Brand Name: | Koller | Model Number: | MB20 2 Tons Block Ice Making Machine | Ice Shape: | Ice Block |
| Voltage: | 380V or 220V | Power(W): | 9000W | Dimension(L*W*H): | 2450*1010*960mm |
| Weight: | 900kg | Certification: | Other, CE, CE, ISO9001, SGS, BV | Warranty: | 12 Months |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

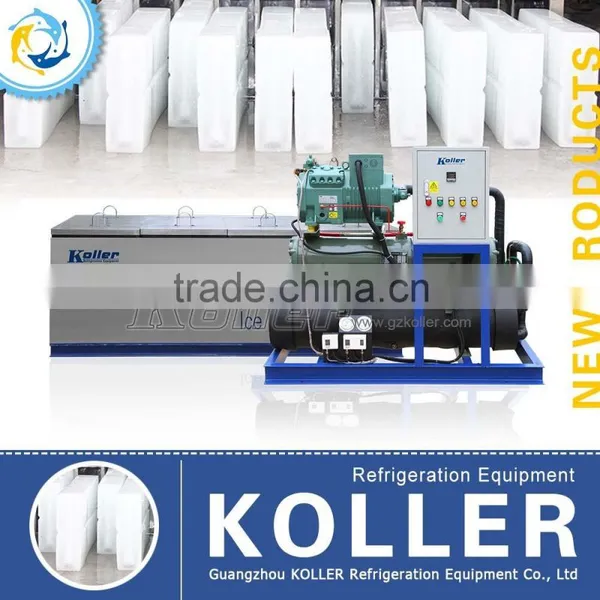

Industrial Ice Block Maker Machine For Cooling Foods (MB20)
Koller MB series ice block making machines have the following types of ice blocks: 5 kg/PC, 10kg/PC, 15kg/PC, 20kg/PC, 25kg/PC, 30kg/PC, 50kg/PC , 100kg/PC . Meanwhile, we also can produce in compliance with the customers' requirements.
1.Industrial ice block making machine structure: Compressor unit, ice making pool and cooling tower-water cooled system(air condenser-air cooled system).It is easy to install, just need to connect the water pipes between the three parts, and supply the power wire to the machine
2. Weight of ice:5kg..10kg..20kg….. also can be done as customers’ requirement.

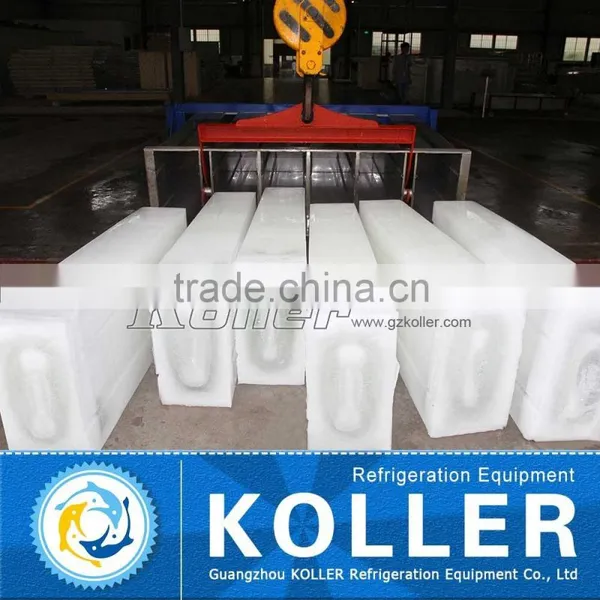

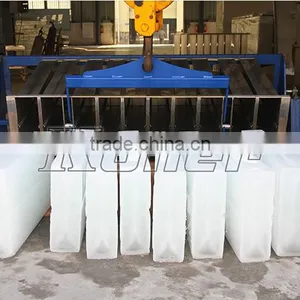

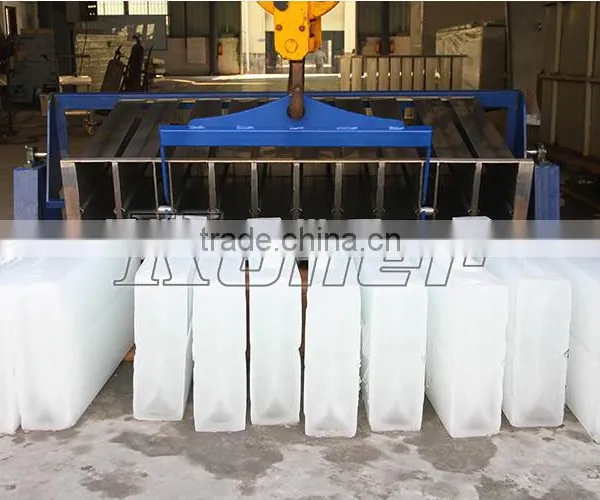

Standard Ice Block Size:
| Ice Size(kg) | Ice Dimension(mm) |
| 5 | 80*160*500 |
| 10 | 100*200*610 |
| 15 | 100*300*610 |
| 15 | 120*255*610 |
| 20 | 120*300*750 |
| 25 | 120*350*750 |
| 25 | 150*300*750 |
| 30 | 150*300*950 |
| 50 | 150*450*1000 |
| 100 | 220*550*1100 |
Small Capacity Solid Ice Block Making Machine
Model | Capacity tons/24hours | Compressor Power (KW) | Compressor Brand | Total Power (KW) | Cooling way | Outer Dimension |
MB10 | 1 | 4.5 | Manevrop/Bitzer/ Refcomp | 6 | Air/water Cooling | Main unit and water tanK: 2820*1480*1040 |
MB20 | 2 | 8.1 | Manevorp/Bitzer/ Refcomp | 11 | Air/water cooling | main unit:1630*720*1530 Water Tank: 2300*1430*1090 |
MB30 | 3 | 11.1 | Bitzer/Refcomp/ Copeland | 14 | Air/Water cooling | Main unit: 1660*860*1450 water tank: 2460*1550*970 |
MB40 | 4 | 17.2 | Bitzer/Refcomp/ Copeland | 22.5 | water cooling | Main unit: 1630*730*1520 water tank:4000*1356*900 |
MB50 | 5 | 22.1 | Bitzer/Refcomp/ Copeland | 31 | water cooling | main unit:1630*830*1520 water tank:3700*1450*1100 |
MB60 | 6 | 23.5 | Bitzer/Refcomp/ Copeland | 32 | water cooling | main unit:1750*900*1700 water tank:3100*1630*1420 |
MB80 | 8 | 31.4 | Bitzer/Refcomp/ Copeland | 45 | water cooling | main unit: 2000*850*1300 water tank:5200*1850*1100 |
MB100 | 10 | 44.2 | Bitzer/Refcomp/ Copeland | 58 | water cooling | main unit: 2300*1750*1300 water tank: 6000*1750*1300 |
MB150 | 15 | 62.5 | Bitzer/Refcomp/ Copeland | 78 | water cooling | main unit:2300*1750*1300 water tank:8000*2100*1200 |
MB200 | 20 | 84.6 | Bitzer/Refcomp/ Copeland | 96 | water cooling | main unit:2260*1350*1330 water tank: 9380*1770*1380 |
MB250 | 25 | 102 | Bitzer/Refcomp/ Copeland/Hanbell | 125 | water cooling | main unit:2300*1500*1680 water tank: (8250*1980*1350)*2 |
MB300 | 30 | 112 | Bitzer/Refcomp/ Copeland/Hanbell | 150 | water cooling | main unit:2260*1800*1480 water tank:(8770*1770*1125)*2 |
MB350 | 35 | 136 | Bitzer/Refcomp/ Coepland/Hanbell | 190 | water cooling | main unit:2260*1800*1480 water tank:(9000*2100*1200)*3 |
MB800 | 80 | 262 | Bitzer/Refcomp Copeland/Hanbell | 251 | water cooling | main unit:5500*2000*2000 water tank:(11600*2080*1400)*3 |
MB1000 | 100 | 328 | Bitzer/Refcomp Copeland/Hanbell | 390 | water cooling | main unit:5500*2000*2000 water tank:(10000*2080*1400)*4 |
- 12 months warranty after delivery.
- Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
- Over 10 engineers available to service machinery overseas.
- Free spare parts replacement within warranty period.
- Beyond guarantee period, we will charge market price for spare parts.
5.Why choose us?
- So far, we have exported ice machines to 150 countries in the world.
- Excellent Brand of Chinese Ice Machine Industry.
- The Drafting Committee of National Ice Machine Industry Standard.
- Produce & Academic Research Strategy Cooperating Partner with Tsinghua University.
- Independent after-sales department, 8 engineers are ready to service abroad.
