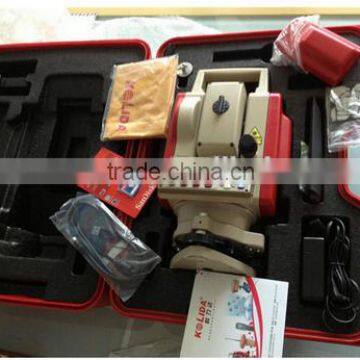

Kolida total station KTS442RLC, total station survey instrument
KTS442RLC
Large memery
Convenient data management
Easily operation on data adding, deleting, modifying, transferring.Total station can be recognized as a flash memory disk by computer.
Long distance measurement
With prism 5Km~10Km.Without prism 350m-400m (optimal).
Is there any target that you can not put prism on? Now use refletorless laser!
Abundant surveying programs
Various of surveying programs onboard:angle offset, angle repetition, dual-distance offset, 3-D coordinate measurement, remote Elevation, Missing line, staking-out, road design, area calculation, volume calculation and reference line.
Absolute encoding disc
Never to manually rotate EDM to do angle initialization.Don’t fear about suddenly power-off. Absolute encoding, absolute accurate.
Long time operation
Two pcs of rechargeable batteries. Battery life can support 8 hours distance measurement or 24 hours continuously angle measurement.
| Angle Measurement |
| Minimum Reading:1” /5” Selectable |
| Accuracy: 2” / 5” Optional |
| Compensation: Dual-axis Compensator |
| Distance Measurement |
| Single Prism: 5.0km |
| Triple Prism: 8-10km |
| Mini Prism: 800m |
| Accuracy (with Prism): 2mm+2ppm |
| No Prism: 350m |
| Accuracy (no Prism): 5mm+3ppm |
| Data Storage & Communication |
| Internal Memory: 2M/24000 point |
| External Memory: SD Card (up to 2G) Optional |
| Communication Port: RS-232, Mini USB |
| General |
| Dimension (L x W x H): 160mm x 150mm x 330mm |
| Weight: 5.8kg (including battery) |
| Laser Plummet: Standard |
| Working Temp.: -20℃ to +50℃ |
| Water/ Dust Proof: IP55 |
| Operation Time : 10 Hours |
