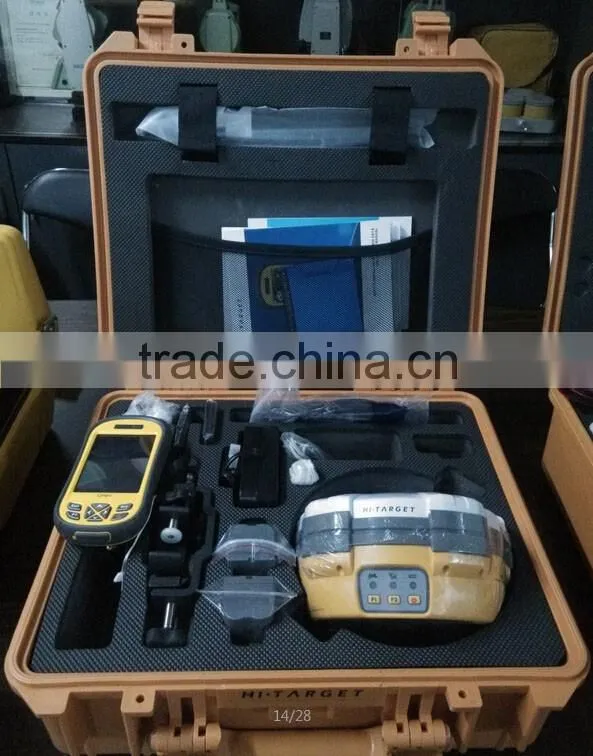

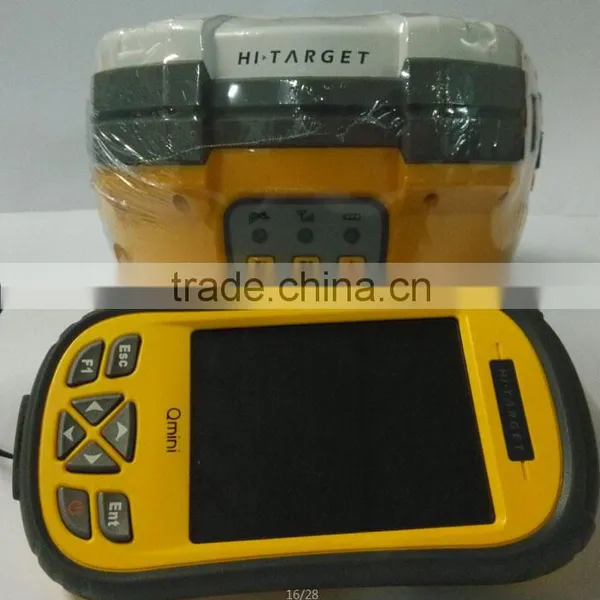

HI-TARGET V30 RTK
Technical specification of integrated intelligent static GPS
♦Signal tracking GPS: L1 C/A,L2E, L2C, L5
♦GLONASS: L1 C/A, L1 P, L2 C/A (restricted to GLONASS M) and L2 P
♦GALILEO: (upgrade)
♦SBAS: WAAS, MSAS, EGNOS
♦Module technology PCC Maxwell 6 advanced custom measurement GNSS technology
♦Extremely low-noise GNSS carrier phase measurements Accuracy in the range of 0.001m at 1 Hz bandwidth Mature low-elevation tracking techniques
♦Initializing time<10 s
♦Initializing reliability>99.9%
♦Positioning output1 Hz,2 Hz,5 Hz,10 Hz,20Hz and 50 Hz positioning
♦Output (10Hz default)
♦Output format ASCII: NMEA-0183 and binary: Trimble GSOF
♦Positioning accuracy Receiver accuracy
♦Static, rapid static accuracy: Horizontal: ±(2.5+1×10-6D)mm
Vertical: ±(5+1×10-6D)mm
♦Interface :Two RS-232 serial ports
Two external DC power input port(reusable)
One Bluetooth wireless communications port
One USB port supporting data download
♦Panel Key-Press and Indicator Lamps:
3 panel key-presses: 1 power key-press, 2 function key-presses,
3 indicator lamps: One monochromatic lamp for satellites,
One dual-color lamp for communications
One dual-color lamp for power
♦ Physical Specifications Memory: 64M
♦Main unit power: 2.5W
♦ Power input: 6-36 V DC
♦ Battery system: Internal dual compartment Lithium battery system, each battery capability 4400mAh working up to 15 hours for static working mode
♦ Size: φ19.5cm×10.4cm
♦Weight: 1300g (with 2 batteries inserted)
♦Environmental characteristics: Two meters water-proof, anti- 3m natural drop, completely dust-proof, IP67 grade
♦Operating temperature: -45℃~65℃, Storage temperature: -55℃~85℃
