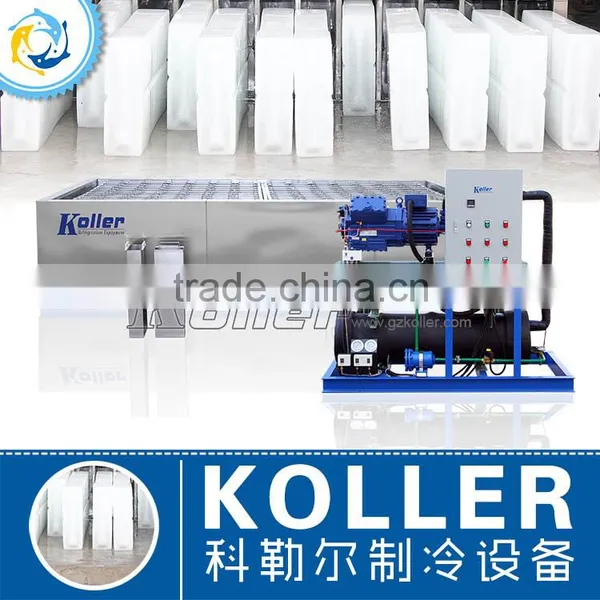

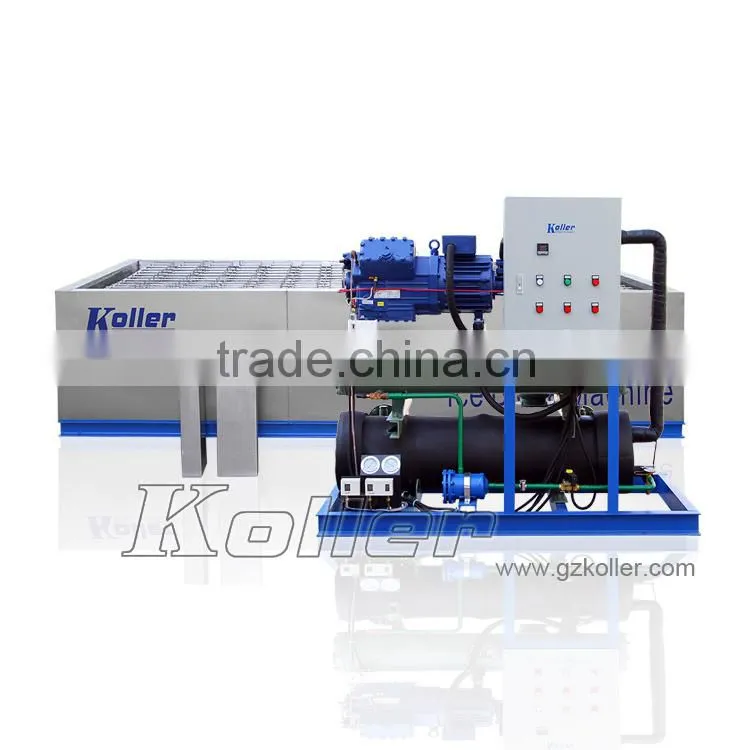

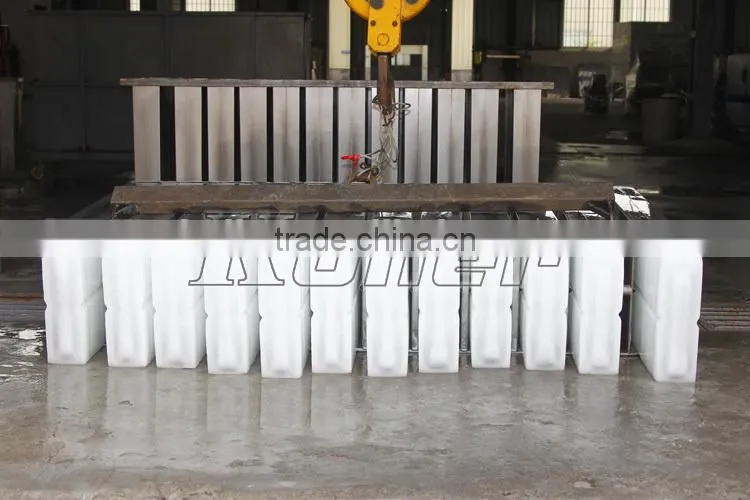

2016 5TPD block ice making machine with hard block ice for fishing plant from Guangzhou Koller MB50

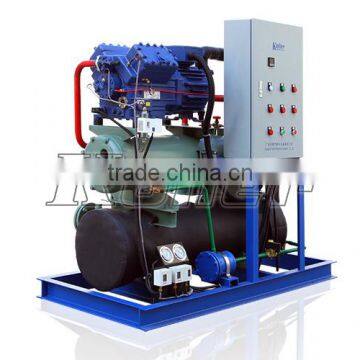

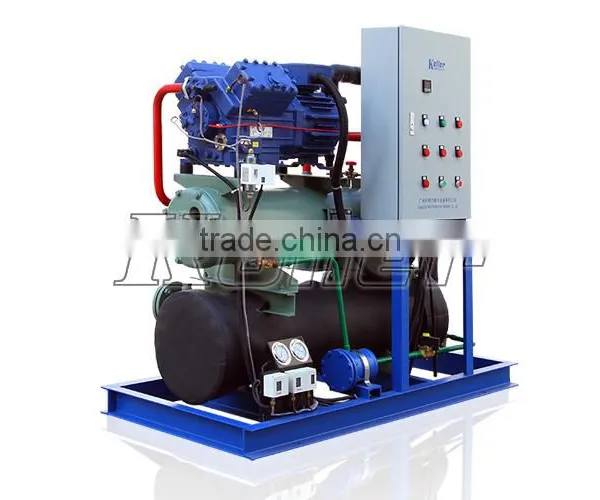

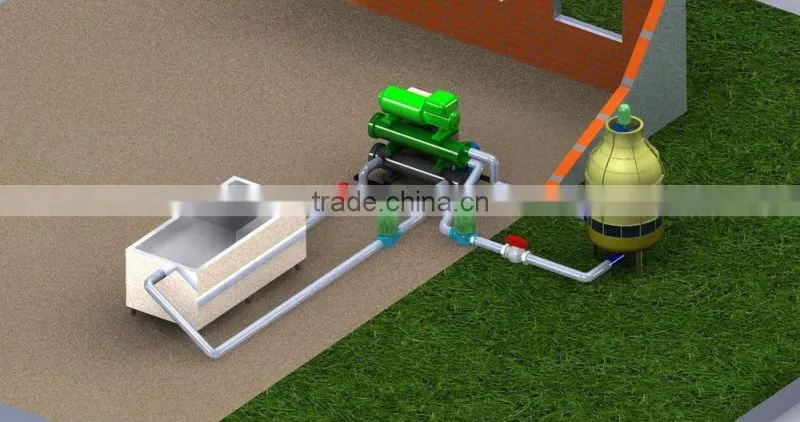

KOLLER MB Series Ice Block Machines are new-type design with high efficiency and stable capacity,perform well in Tropical area such as Africe, Middle East and Oceonia. This kind of ice block machine usesbrine water as cooling medium in making ice. So a whole set of ice block machine may consists of 2 parts:machinery unit and brine water tank.
You just need to connect it well with water and power then you can begin to make ice.
1. HIGH EFFICIENCY:
The production of our ice block machine can reach at least 80% in summer. When the environment temperature is below 23°C, the production of our ice cube machine can reach 200%.
2. Low Power Consumption:
The biggest feature of our ice block machine is lower power consumption. The power consumption of our ice block machine only reaches about 85kW.H for producing 1 ton ice cube. When the environment temperature is below 23°C, the power consumption of our ice block machine is from 70kW.H to 80kW.H.
3. Easy Operation:

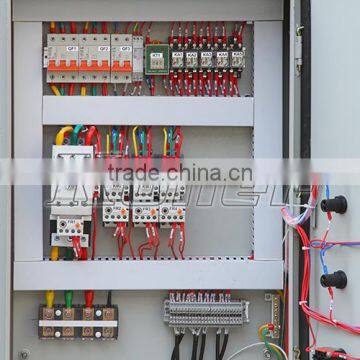

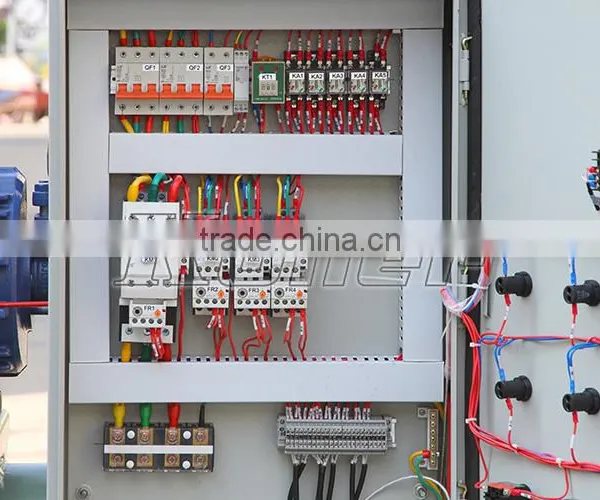

Our ice block machine has been adopted Germany Siemens PLC microcomputer controller, self-adjustment for ice thickness, self-adaptation for ambient temperature and balance between automatic ice forming and water supply. Manual operation is not required.
4. Optional Equipment:
we can also provide the related products, like ice storage room,and crane systeem, etc

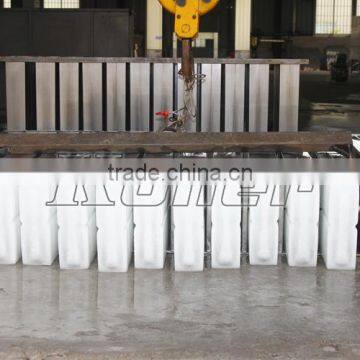

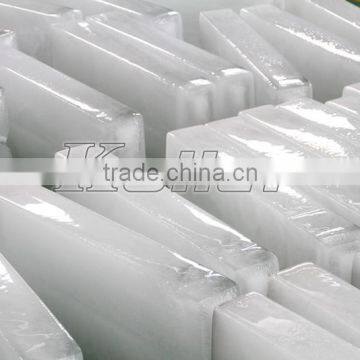

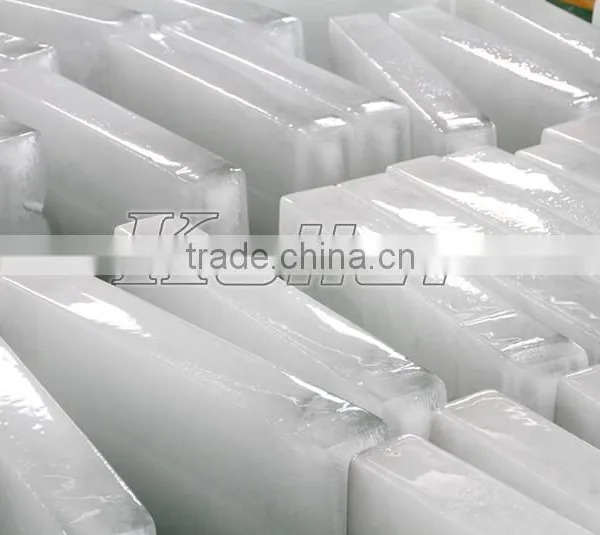

1. Ice blocks Application:
- To fishman or fishboat at the harbor.
- Wholesale to food markets, restaurants, hotels for fish, meat, vegetable storage.
- Long-distance transport truck for food storage.
- Concrete cooling in construction projects.
- To small retailers for resale.
- To end users for cooling drink, keep food fresh.

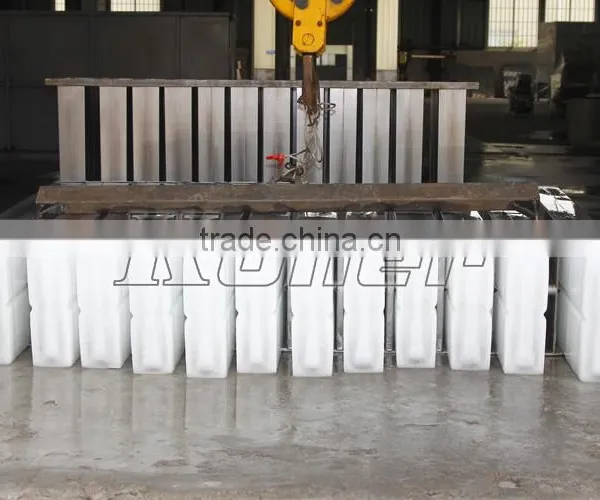

Standard Ice Block Size and Freezing Time( It can be done as customers’ requirement. )
|
Ice Size (kg)/pc |
Ice Dimension(mm) Thickness*Width*Height |
Freezing Time (hours) |
||||||||||
5 |
80*150*500 |
4.8 |
||||||||||
10 |
100*200*600 |
6 |
||||||||||
15 |
100*300*600 |
6 |
||||||||||
20 |
120*270*750 |
8 |
||||||||||
150*210*750 |
12 |
|||||||||||
25 |
120*330*750 |
8 |
||||||||||
150*200*1000 |
12 |
|||||||||||
30 |
120*300*1000 |
8 |
||||||||||
150*240*1000 |
12 |
|||||||||||
50 |
150*400*1000 |
12 |
||||||||||
100 |
250*500*1100 |
24 |
||||||||||
2. MB50 salt water tank:
3. Product Description
- Reasonable design for the ice moulds and salt water tank with stainless steel 304, save space, and easy to install;
- Greatly save energy, only 80-85KW*H are consumed to produce one-ton ice;
- Equipped with tempreature control, which allows multiple functions such as automatic machine start and shut down; ice stopping production when the ice bins are full, Automatic water making up;

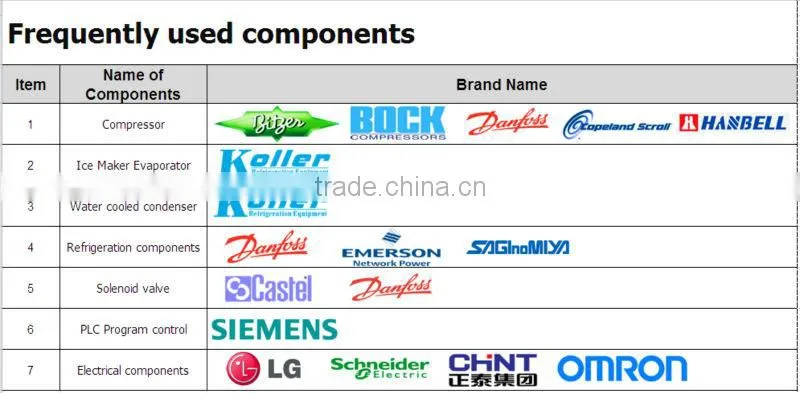

- Adopts the world's famous brand components, which will grantee the best refrigeration effect and working condition.
Working condition for ice block machine:
Max. Ambient Temp |
+40°C |
Max Relative Humidity |
85% |
Supply water temp |
21°C |
Power supply |
380V 50/60HZ 3P or 220V 60HZ 3P |
Refrigerant |
R22/R404a |

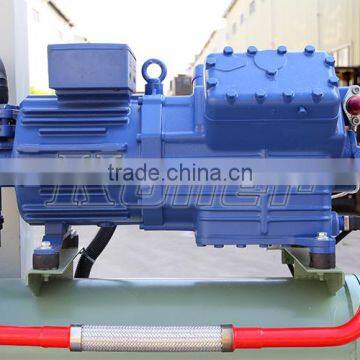

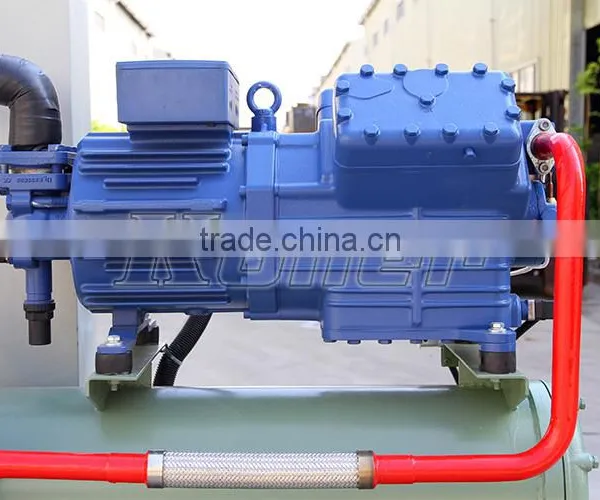

Compressor type |
Semi-hermetic piston or Screw compressor |
Cooling system |
Water cooling condenser |
4. Installation for block ice machine:
1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by Koller engineers:
- (1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
- (2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared. Meanwhile, we will provide you a Tool List with the machine when delivery.
- (3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
- (4) 2~ 3 workers are required to assist the installation for big project.
- (5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.
5.Warranty:
- 12 months warranty after delivery.
- Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
- Over 10 engineers available to service machinery overseas.
- Free spare parts replacement within warranty period.
- Beyond guarantee period, we will charge market price for spare parts.

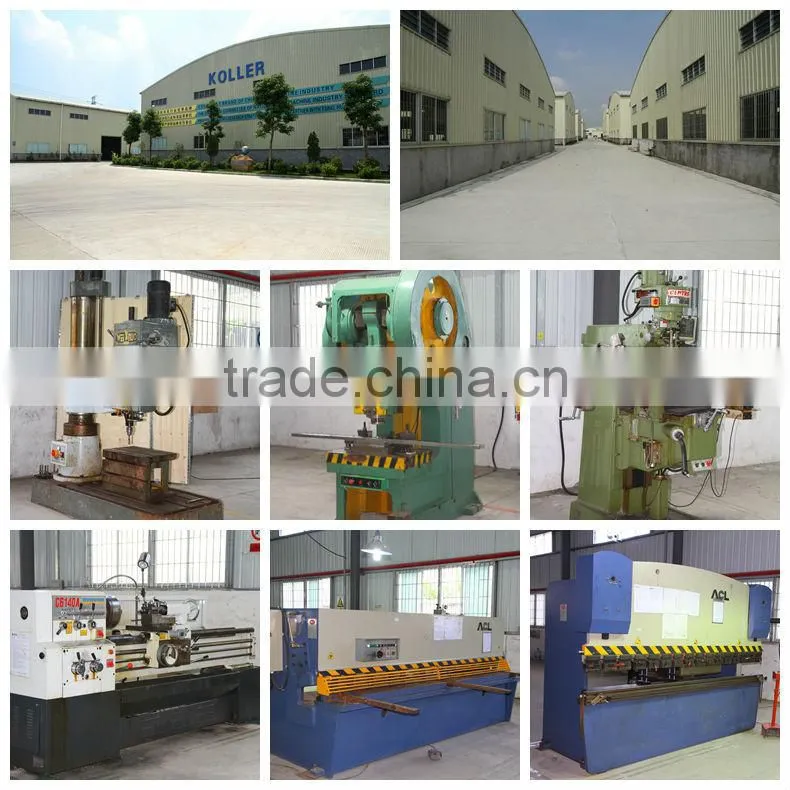

6. Why choose us?
- So far, we have exported ice machines to 150 countries in the world.
Our clients is widely-spread in over 150 countries like Malaysia, Philippine, Indonesia, Vietnam, Papua New Guinea, Australia, Fiji, French Polynesia, South Korea, Cyprus, Greece, Belgium, Croatia, Ireland, UK, Jordan, Iran, Syria, Saudi Arabia, Bahrain, Lebanon, Sudan, Nigeria, Angola, Congo, Guinea, Guinea Bissau, Ghana, Cote D'Ivoire, South Africa, Mozambique, Tanzania, Venezuela, Surinam, Chile, Haiti and so on.
- Excellent Brand of Chinese Ice Machine Industry.
- The Drafting Committee of National Ice Machine Industry Standard.
- Produce & Academic Research Strategy Cooperating Partner with Tsinghua University.
- Independent after-sales department, 8 engineers are ready to service abroad.
FAQ:
1. How to choose a true manufactuerer among hundreds of suppliers?
Step 1: A good supplier should be at least 5 years history and have export/import business at least 3 years. We are 6 year gold supplier in alibaba and specialized in ice machine export since 2004.
Step 2: Request your suppliers to provide their certification of corresponding machines such as CE, ISO9001, UL and so on, it wil help you tell that they are ture manufacturer, trading company or SOHO.
Step 3: Ask supplier to provide more pictures about their facotry and products with their company logo on it. Don't define a manufactuerer with simple picture, they can download some picturers on the internet and claim it is their machines. If the suppliers only show pictures without any logo on it, just pass them.
Step4: If possible and you are willing to, visit the factory and see the workshop.
2. What is the power consumption to produce 1 ton ice blocks?
75-80KWH to produce 1 ton ice blocks.
3. Can your ice block maker work with 220V, 50Hz, single phase power?
No, all our ice block machines adopt 3 phases industrial power, such as 380V, 50/60Hz, 3 phases or 220V, 60Hz, 3 phases supply power.
4. Would inlet water temp affect production?
Yes. Our standard input water temperature for the ice block machine is 21 degree, higher the inlet water temperarature, less the capacity.
5. Why adopt 304 stainless steel for water tank and ice cans?
We will adopt insdustrial salt water in the water tank to freeze the fresh water in the ice cans and turn them into ice blocks. As brine system has great corrosion to the machine, all material contacting salt water incluidng water tank and ice moulds is made of SUS304 stainless steel, it is the best material in anti-rust and anti-corrosion. SUS304 stainless steel is much better than galvanized steel, carbon steel (iron plate) and coated steel. If with 304 stainless steel, the machine's working life can be over 10 years under proper maintenance, while galvanized steel and carbon steel will easily corroded in 3-4 years.
