evaporator for small capacity flake ice machine

1. evaporator for small capacity flake ice machine :

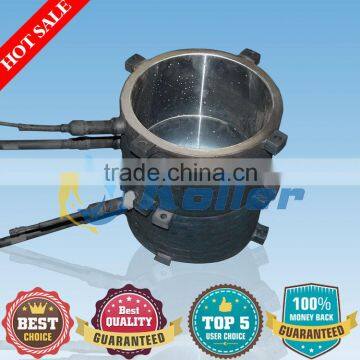

2.Koller Flake Ice Evaporator Drum Features:

        Guangzhou Koller Refrigeration Equipment Co., Ltd. is professional in producing flake ice evaporator. Its evaporator with fixed vertical design is made of SUS304 or carbon steel with high heat transfer efficiency and surface Nobelium electroplated. And the automatic protection welding equipment and annealing heat treatment furnace ensure the ice machine high quality and better performance.

        Flake ice machine evaporator are widely applied into flake ice making plant and ammonia system ice machine, etc. To realize the continuous ice making, users only need to connect the evaporator tube to the refrigeration source, convenient installation, lower cost.

3.Koller Flake Ice Evaporator Drum Main Accesories:

    (1) Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It is durable;
    (2) Spindle and other accessories: made of SUS304 material through precision machining, and conform to food hygiene standard;
    (3) Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
    (4) Evaporator size and installation direction can be customized acoording to customers requirements;
    (5) The material of evaporator wall, up and down pedestal is availabe (304 & 316).

4.Koller Flake Ice Evaporator Drum Advantages:

        Professional evaporator producing plant, various horizontal lathes are all owned in Koller company. And the 2.5m diameter verticallathe can process the single ice bucket workpiece up to 50 tons. The high-performance annealing heat treatment equipment can eliminate the welding stress with its 850℃ high temperature annealing treatment ability, which can guarantee ice bucket good material mechanics performance and prevent the evaporator inner wall from deformation forever.
        Our spiral ice blade researched & developed and produced by ourselves independently is made of high performance strong stainless steel and formed through only one time process. Its scientific structure, clean hygiene, reasonable spiral angle and accurate cylindricity make it cut ice with less resistance, no noise, vibration and balance.

5.Koller KPE Series Flake Ice Evaporator Drum Technical Parameter:

6. Application:

6.1 Brinewater flake ice machine can make ice directly from the sea water. This ice can be used in fast cooling of fish and other sea products. The fishing industry is the largest user of flake ice machines. Flake ice can lower the temperature of cleaning water and sea products, therefore it resists the growth of bacteria and keeps the seafood fresh.

6.2 . Because of its large contact and less damage with refrigerated materials, it is also applied in vegetable, fruit and meat storing and transporting.

6.3 In most cases of biosynthesis and chemosynthesis, flake ice is used to control the reaction rate and maintain the liveness. Flake ice is sanitary, clean with rapid temperature reduction effect.

6.4 Flake ice is used as the direct source of water in concrete cooling process, more than 80% in weight. Concrete will not crack if has been mixed and poured in constant and low temperature.

 7. others

How many countries in the world have your Koller machines entered?

Till now, Koller products has been exported to more than 150 countries and areas in the world, such as Philippines, Malaysia in Southeast  Asia, Saudi Arabia, Dubai in Middle East, Spain, Hungary, England in Europe, Nigeria, Benin, Congo, South Africa in Africa,  U.S.A in North America, Chile, Peru, Paraguay in South America etc.

-1.  Q: Power supply: the power can be single phase?

      No, it need the industrial supply power for the whole plant, say that 3phase power, 380~420V,50Hz, 3P or 220~240V, 60Hz, 3P.

-2. Q: If this is my first time to invest ice plants, then how should I prepare my factory?

      Water treatment to pure water è ice machine to make ice è

     digital scale and sealing machine to pack ice bags è cold room to store ice

Water treatment to make pure water:  http://preview.china.cn/product/60126862351-0/Pure_water_making_machine_for_drinking_ice_plant.html

Cold room to store ice:  http://preview.china.cn/product/60125613772-214059528/Koller_cood_storage_room_to_keep_ice.html

 Installation:

 1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts operation manual and CD are provided to guide the installation.

 2). Installing by Koller engineers:

(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.

(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.

(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.

 (4) 2~ 3 workers are required to assist the installation for big project.

(5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.

Koller  specialize in ice machine research, design, manufacture for 10 years since 2004, our products sell all over the world, and you can see many refrigeration equipments in your daily life, we produce block ice machine, tube ice machine , cube ice machine, plate ice machine , flake ice machine and cold room. Koller is one of biggest ice machine producer in China, you can buy different kinds of ice machine from us for different applications.
