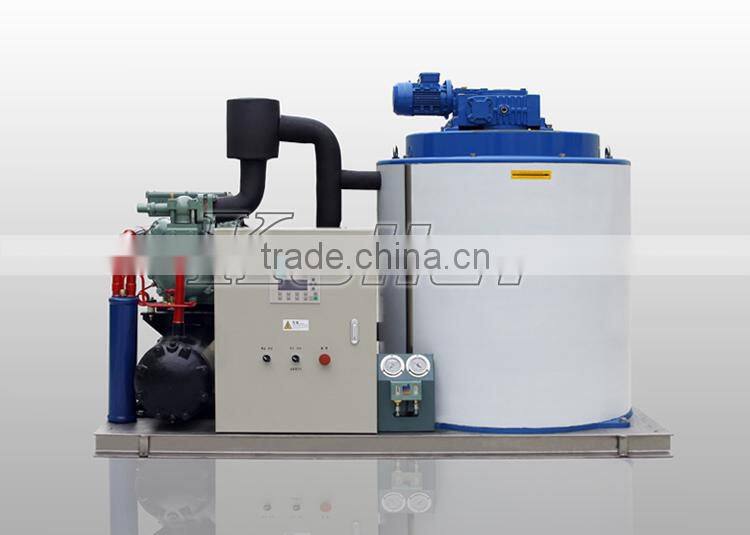

3 ton ice maker: flake ice machine for fishery

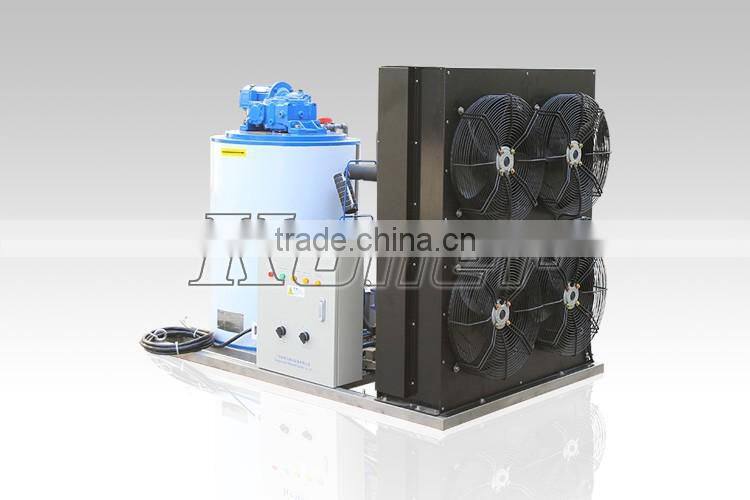

1. Flake Ice Machine

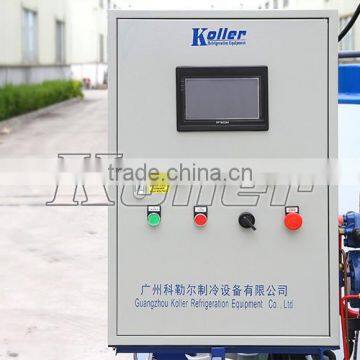

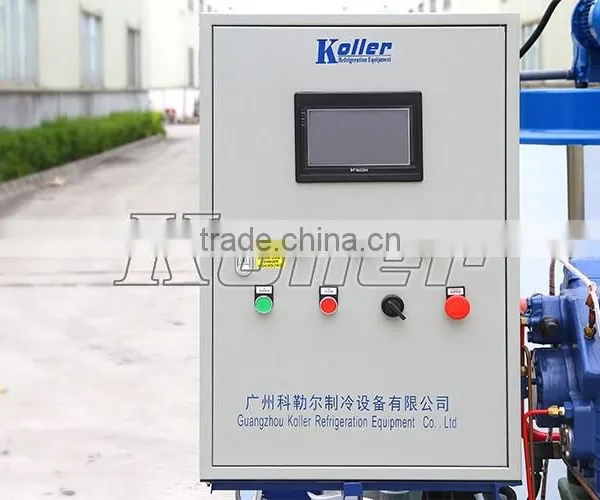

a. PLC automatic controller: all the processes are automatic, including water supplying, ice freezing and ice falling. Also PLC will start the protection program if there is anything wrong with the machine. Very intelligent.
b. space saving: integrated design, the dimension of the whole machine is 1770*1130*1480mm

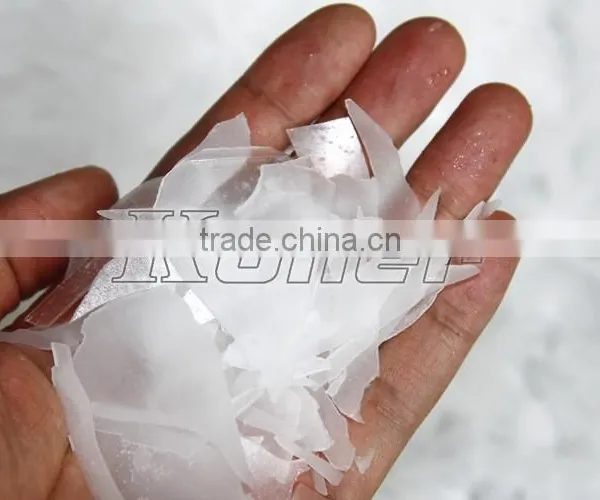

2. Flake Ice

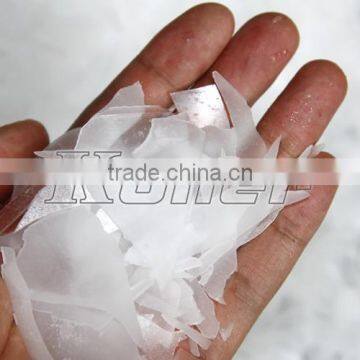

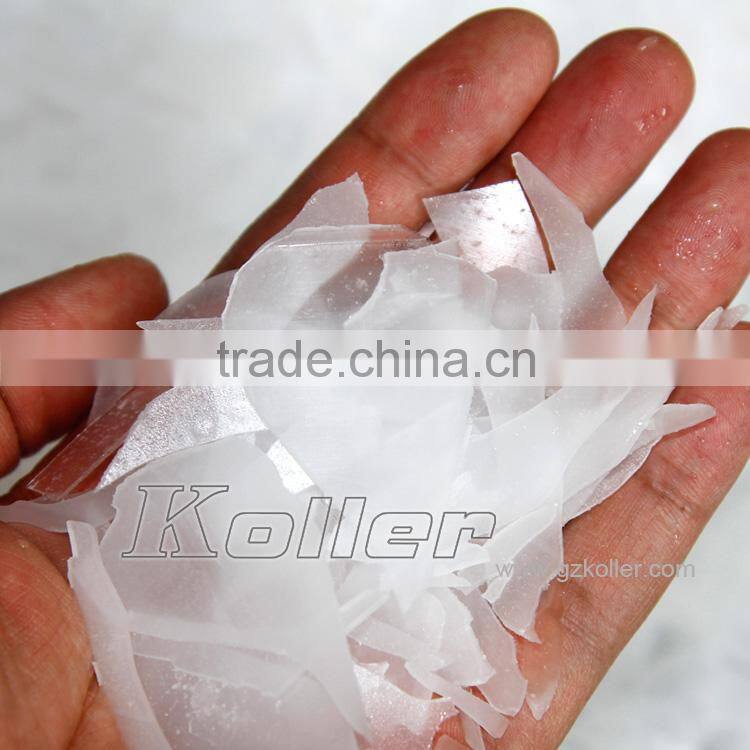

Flake ice is dry, pure, powder-less, not easy to block.Its thickness is about 1.5mm-2.2mm, without edges or corners which can produce the cooling food, fish, seafood ad other products
3. Evaporator Drum
Use stainless steel 304 or carbon steel chrominum. The scartch-style system of inside machine ensures constant running at the lowest power comsumption, exquisite welding and processing technology ensure high-efficent heat transfer and energy saving.
4. Technical Parameters
| Model | KP05 | KP10 | KP20 | KP30 | KP50 | KP80 | KP100 | KP200 |
|
Capacity (Tons/day) |
0.5 | 1 | 2 | 3 | 5 | 8 | 10 | 20 |
| Refrigerant | R22/R404a | |||||||
|

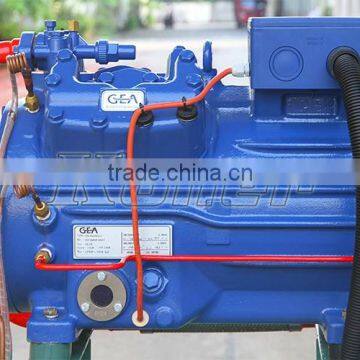

Compressor Brand |
Danfoss | Danfoss | Danfoss |
Maneurop /Bizter |
Bock /Bitzer |
Bock /Bitzer |
Bock /Bitzer |
Bock /Bitzer |
|
Compressor Power(KW) |
1.8 | 4.5 | 7.5 | 9 | 15 | 22.5 | 30 | 66.5 |
|
Motor Power (KW) |
0.37 | 0.37 | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 0.75 |
|
Circulating water pump Power(KW) |
0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.4 | 0.4 | 0.4 |
|
Cooling water pump (KW) |
/ | / | / | / | 2.2 | 4 | 4 | 5.5 |
|
Cooling fan motor(KW) |
0.11 | 0.22 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 |
| Length (mm) | 1420 | 1420 | 1770 | 1770 | 2100 | 2400 | 2800 | 3600 |
| Width (mm) | 800 | 840 | 1120 | 1130 | 1500 | 2200 | 2200 | 2200 |
| Height (mm) | 1020 | 1080 | 1220 | 1330 | 1580 | 1850 | 2020 | 2560 |
| Weight (kg) | 500 | 750 | 980 | 1100 | 1400 | 1900 | 2600 | 3600 |
| Cooling way | Air cooling | Air cooling | Air cooling |
Air cooling /water cooling |
Air cooling /water cooling |
water cooling | water cooling | water cooling |

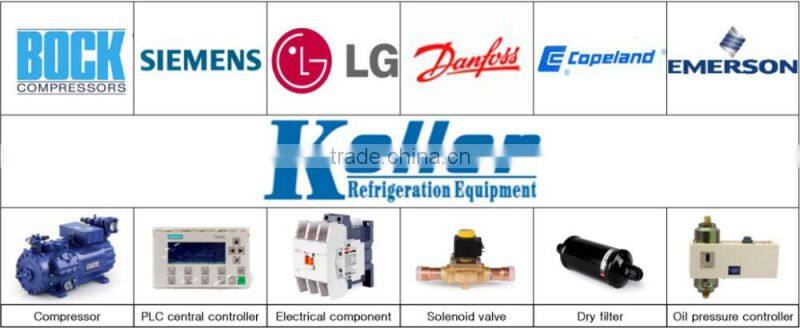

5. World Famous Brand Components
Installing by the user:
we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
Installing by Koller engineers:
We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
2~ 3 workers are required to assist the installation for big project.
Any delay due to customer’s reason, it will be charged from the 7th day, USD100/day for one person as installation fee. Free of charge for one week.
Maintenance and parts are free of charge within 12 months after selling
1. Can the machine run on the power of 1 phase?
For most of our machine, the answer is NO. Usually the power form for our machine is 380/415/440V 50Hz 3Phases or 220/380/415/440V 60Hz 3Phases. But for some small machine, 1 phase is OK.
2. Do you have CE certificate?
Yes. We have CE, SGS, IOS9001 to meet the needs of different countries.
3. Can you machine run by generator?
Yes. If the power supply of generator is stable.
