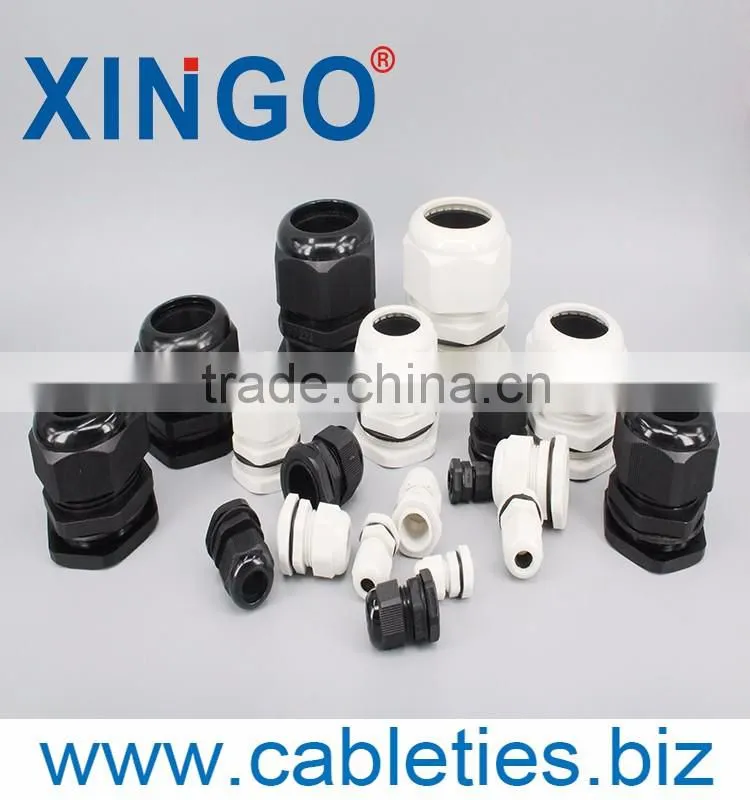

PG48 Electrical Waterproof Cable Gland

PG48 Electrical Waterproof Cable Gland thumbnail-1
PG48 Electrical Waterproof Cable Gland thumbnail-2
PG48 Electrical Waterproof Cable Gland thumbnail-3
PG48 Electrical Waterproof Cable Gland thumbnail-4
PG48 Electrical Waterproof Cable Gland photo-1

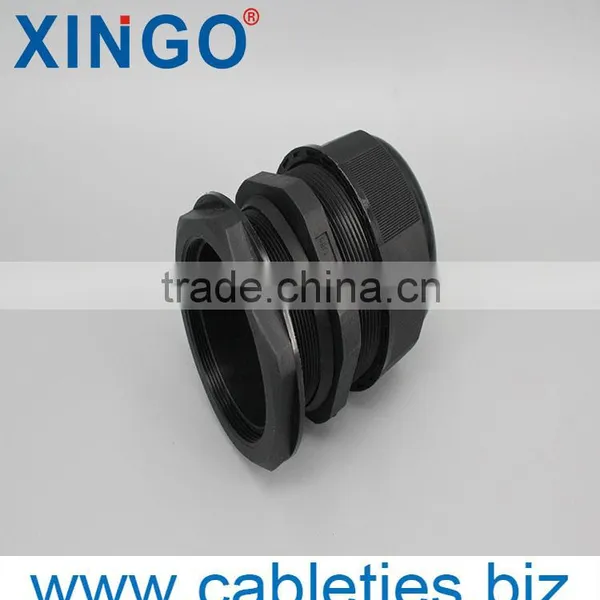

PG48 Electrical Waterproof Cable Gland photo-2

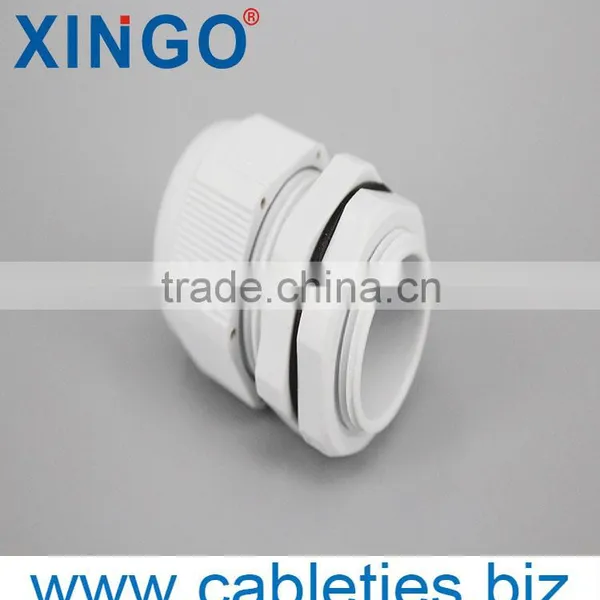

PG48 Electrical Waterproof Cable Gland photo-3

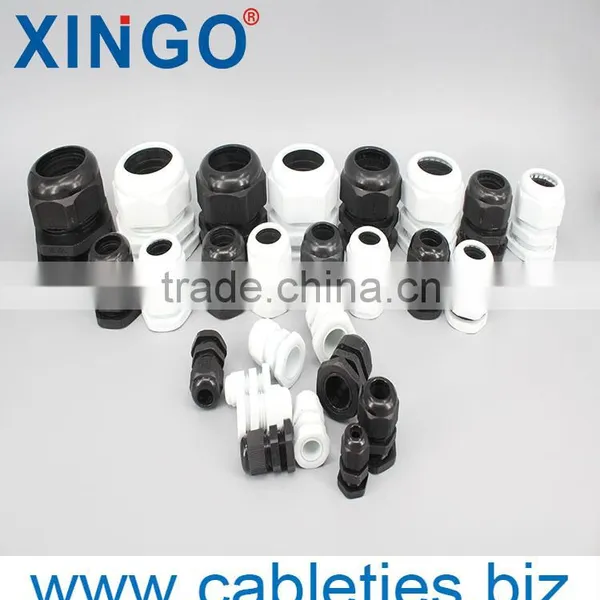

PG48 Electrical Waterproof Cable Gland photo-4
US$ 0.01 - 0.1 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
XINGO
Model Number:
XGS
Contact Supplier Request Quote Chat Now
Yueqing Xinguang Plastic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO /SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name XINGO
Model Number XGS
Protection Level IP68
Size PG7~PG63
Material Other, Nylon, Nylon or PP
Specification

M type cable glands Sample free

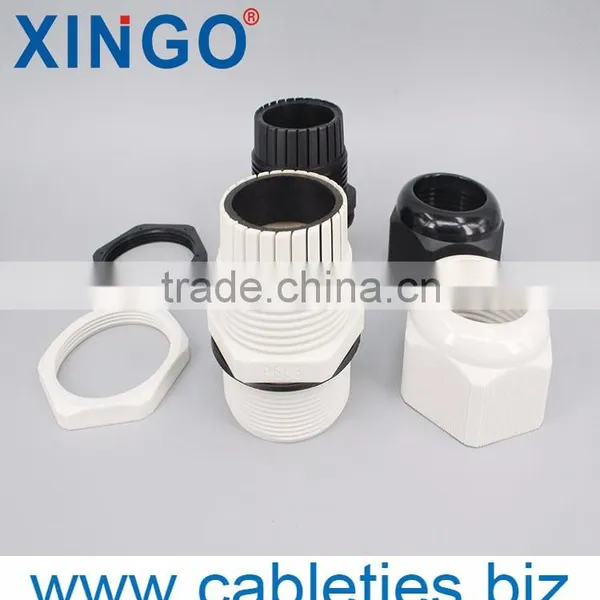

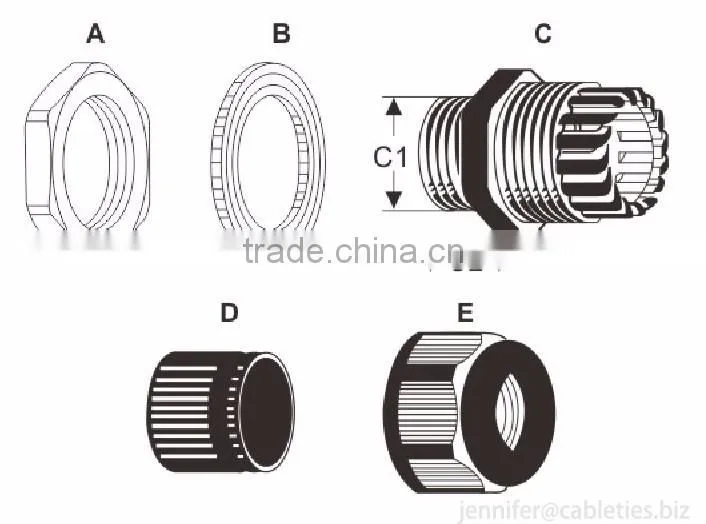

Material:UL approved nylon PA66(Flammability UL94V-2)for A,C,E parts(accept to customize flammability UL 94V-0 ).EPDM rubber for B,D parts(accept to customize resist high temperature rubber,resist strong acid/alkali,etc)
IP degree:IP68
Working temperature:-40℃ to 100℃
Feature:The special design for claw and seal nut can hold cable steady,the usage range of cable diameter wider,it’s harder to pull cable out.Resistant to salt water,weak acid,alcohol,oil,grease,etc.
Colours:Black,Grey,other color available upon request.
                    Type
                          Cable diameter （mm）
                          Thread diameter C1（mm）
                        Thread length          C2 (mm)
                               Wrench diameter （mm）
PG7
3-6.5
12.5
8
16
Standard type
PG9
4-8
15.2
8
19
PG11
5-10
18.6
8
22
 PG13.5
6-11
20.4
10
24
PG16
10-13
22.5
10
27
PG19
12-15
24
10
27
PG21
13-18
 28.3
10
33
PG25
16-21
30
11
35
PG29
18-25
37
12
42
PG36
22-32
47
14
52
PG42
32-38
54
14
60
PG48
37-44
59.3
15
64
PG63
42-50
71
28
77
PG7
2-5
12.5
8
16
Rubber ring thicken type
PG9
2-6
15.2
8
19
PG11
3-7
18.6
8
22
 PG13.5
5-9
20.4
10
24
PG16
7-12
22.5
10
27
PG19
10-13
24
10
27
PG21
9-16
 28.3
10
33
PG25
13-18
30
11
35
PG29
13-20
37
12
42
PG36
20-26
47
14
52
PG42
25-31
54
14
60
PG48
29-35
59.3
15
64
PG63
32-40
71
28
77
Detailed Images
Packing

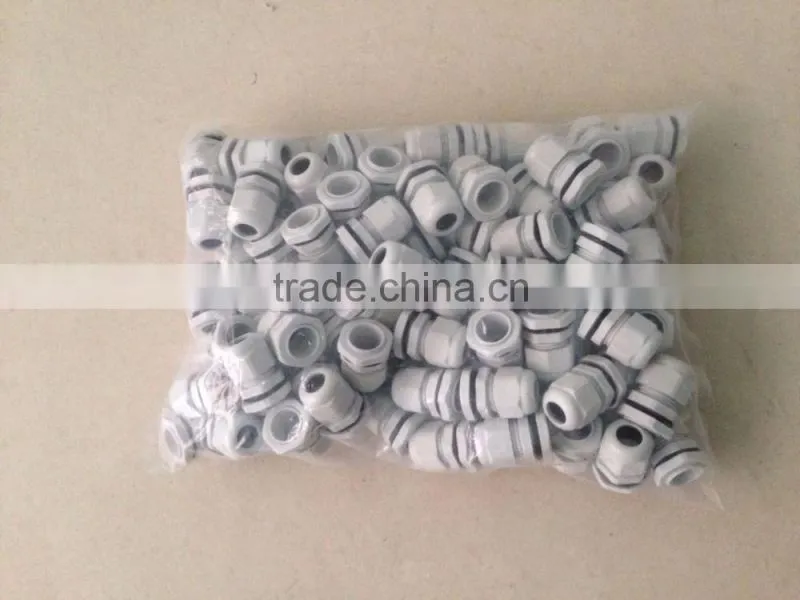

Packing:the cable ties will be packed in bag,then put into carton.this is our standard packing.


If you need packing as your design pls let us know!
