3000KG ICE BLOCK MAKER WITH SANATARY ICE BLOCKS
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Capacity:
3000kg per day
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Machine a Glace a Evaporation DirecteUS$ 10,000 - 100,000MOQ: 1 Set -
Machine a Glace a Evaporation DirecteUS$ 10,000 - 100,000MOQ: 1 Set
-
Machine a Glace a Evaporation DirecteUS$ 10,000 - 100,000MOQ: 1 Set
-
Bien Vendue Machine a Glace a Evaporation DirecteUS$ 10,000 - 100,000MOQ: 1 Set
-
Large Capacity Directly Evaporated Ice Block MachineUS$ 10,000 - 100,000MOQ: 1 Set
Condition
New
Capacity
3000kg per day
Place of Origin
Guangdong, China
Brand Name
Koller
Model Number
DK30
Ice Shape
Ice Block
Voltage
220V 60HZ 3Phase/380v,50hz,3p
Power(W)
11.25KW
Dimension(L*W*H)
3820mm*1630mm*2050mm
Weight
about 1,500kg
Certification
CE
Specifications
1. By SIEMENS PLC program system2. Stainless steel as main material 304
3. Easy control and durable
4. Easy maintenance
Direct Cooling Ice Block Maker DK301. Specifications
- ice block machine Capacity: 3000kg ice blocks per day;
- Without brine water for freezing ice;
- freezing time: 2-3hrs newest tech;
- ice block size: 10kg per piece.
2. Advantages:
Our DK series ice block machine adopt aluminum plate as ice can, the refrigerant will evaporate inside the aluminum plate so the plate can freeze ice making water quickly. This is the intergrated system, meanwhile, we design the lifting system to harvest ice blocks directly, no need hands to harvest ice blocks one by one.
3. Features:
| DK30 Block ice machine | ||
| Technical parameters | ||
| NO. | Description | Details |
| 1 | Freezing time per cycle | 2-3 hours(approx) |
| 2 | Weight of each ice block | 10kg, 80 ice moulds |
| 3 | Outdimensions | 3820mm x 1630mm x 2050mm |
| 4 | Ice making capacity | 3000kg/day |
| 5 | Evaporator for ice tank | Aluminum plate |
| 6 | Cover | SUS 304 Stainless steel |
| 7 | Compressor | Copeland |
| 8 | Refrigerant | R22/R404A |
| 9 | Condenser | Air cooler |
| 10 | water inlet temperature | 20-25°C |
| 11 | ambient operating temperature | 35-40°C |
| 12 | Control and safety devices | autormatic electic control panel box; |
| HP/LP switch with automatic reset | ||
| 13 | Cooling systerm | Copper pipes, liquid separator, |
| solenoid valve,filter and so on | ||
| 14 | Install power | 11.25KW,380-450V/3ph/50HZ |

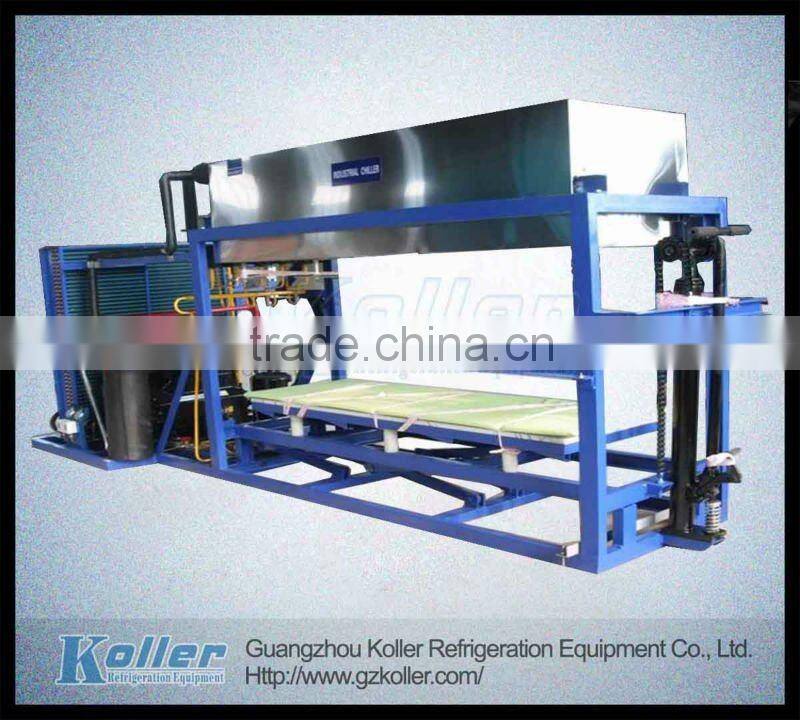

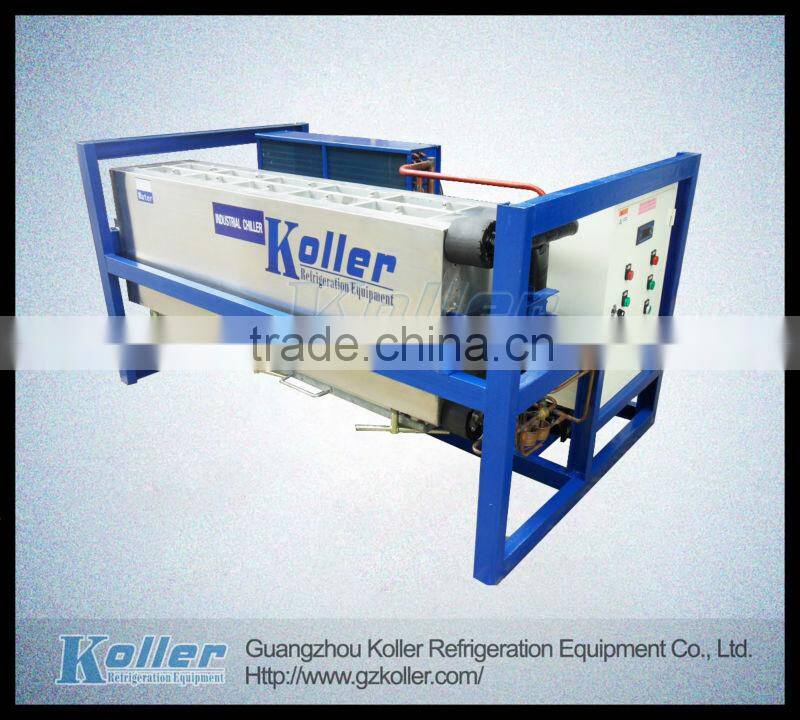

4. Pictures:
