Fast Freezing Ice Block Maker
Negotiable
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Guangzhou Port
- T/T D/P D/A Credit Card PayPal
You May Like
- New York slide valve displacement sensor 534D1251H01, maintenance of lubrication system malfunction for turbine compressor
- New shaft seal 534M0163G02, York TDSH193 compressor disassembly and maintenance parts
- 200kg Dry ice pellets making machine for dry ice production
- New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
- New slide valve potentiometer coupling 111Q0451313
- New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
Product Details
Capacity: | 1 tons capacity per day | Place of Origin: | Guangdong, China | Brand Name: | Koller |
Model Number: | DK10 | Ice Shape: | Ice Block | Certification: | CE |
Product Description
Specifications
1,Min. Order: 1 Set2,FOB Price: US $1-100000 / Set
3,Payment Terms: L/C,T/T,Western Union
4,Supply Ability: 50 Sets/month

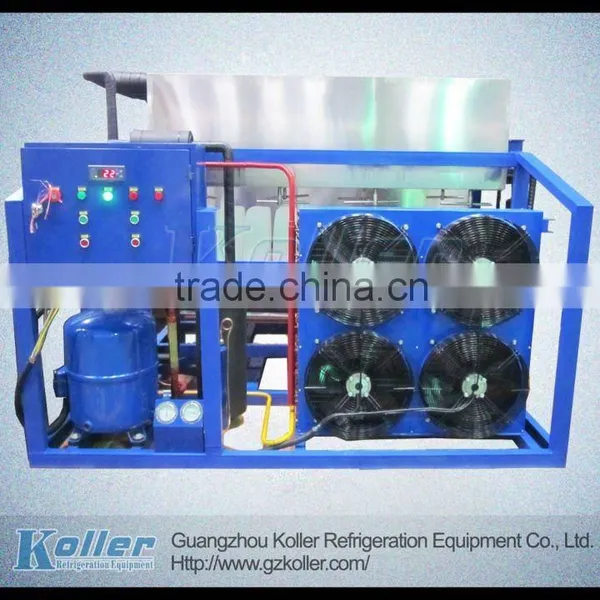

Fast Freezing Ice Block Maker DK10
1. Specifications
- ice block machine Capacity: 1000kg ice blocks per day;
- Without brine water for freezing ice;
- freezing time: 2-3hrs newest tech;
- ice block size: 5kg per piece.
2. Advantages:
Our DK series ice block machine adopt aluminum plate as ice can, the refrigerant will evaporate inside the aluminum plate so the plate can freeze ice making water quickly. This is the intergrated system, meanwhile, we design the lifting system to harvest ice blocks directly, no need hands to harvest ice blocks one by one.
3. Features:
DK10 Block ice machine | ||
Technical parameters | ||
NO. | Description | Details |
1 | Freezing time per cycle | 2-3 hours(approx) |
2 | Weight of each ice block | 5kg,11×9.3×50cm |
3 | Outdimensions | 1820×1070×1365mm |
4 | Ice making capacity | 1000kg/day |
5 | Evaporator for ice tank | Aluminum plate |
6 | Cover | Stainless steel sheet |
7 | Compressor | Copeland (ZB45KQ/ZB45KQE) |
8 | Refrigerant | R22 |
9 | Condenser | Air cooler |
10 | water inlet temperature | 20-25°C |
11 | ambient operating temperature | 35-40°C |
12 | Control and safety devices | autormatic electic control panel box; |
HP/LP switch with automatic reset | ||
13 | Cooling systerm | Copper pipes, liquid separator, |
solenoid valve,filter and so on | ||
14 | Install power | 4.5KW,380-450V/3ph/50HZ |
4. Pictures:
