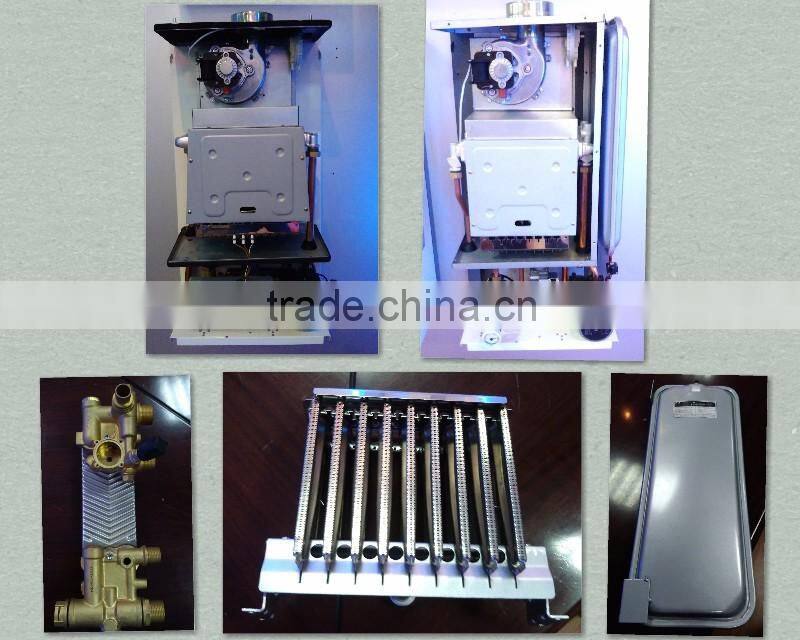

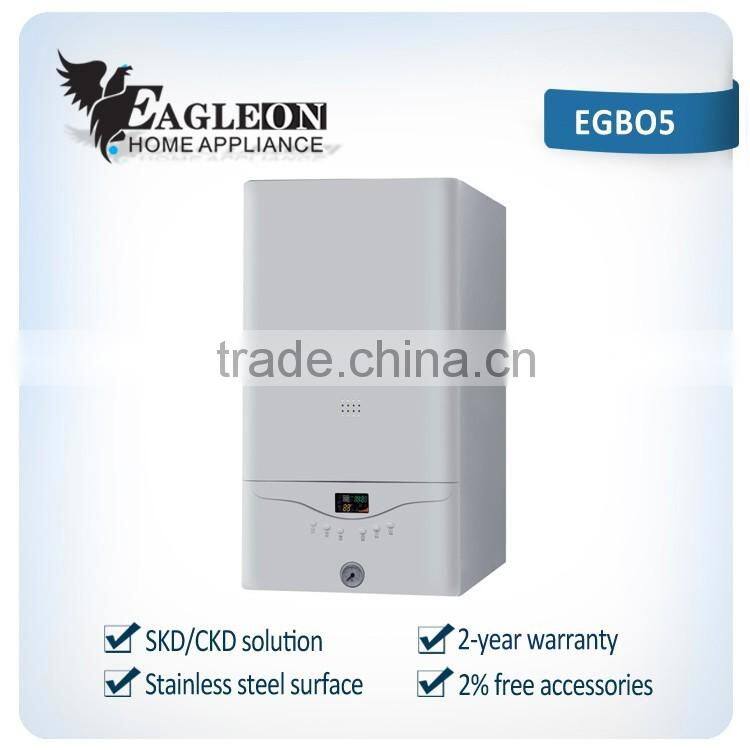

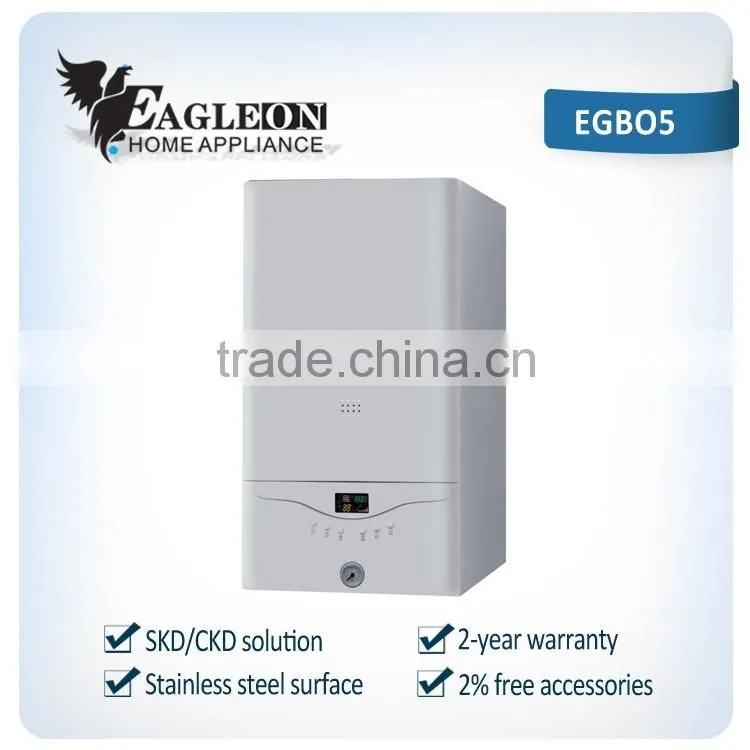

Wall mounted Gas Boiler for water heater and floor heating
Model No.: EGBO5
| Gas Boiler specification | ||||||
| Model | T | 16 kW | 20 kW | 24 kW | ||
| Gas Type | T | G20 | G20 | G20 | ||
| Rated Gas Pressure | Pa | 2000 | 2000 | 2000 | ||
| Rated Heat Input | kW | 18.12 | 22.06 | 26.37 | ||
| Rated Heat Output | kW | 16.6 | 20.34 | 24.49 | ||
| Efficiency Grade | % | 90-91% | 90-91% | 90-91% | ||
| Max. Input DHW | kW | 18 | 21.65 | 26.07 | ||
| Max. Output DHW | kW | 16.2 | 19.51 | 23.7 | ||
| Min. Input DHW | kW | 7.8 | 9.5 | 12.71 | ||
| Min. Output DHW | kW | 7 | 8.55 | 11.49 | ||
| Floor Heating | Max. Heating Temp. | ℃ | 80 | 80 | 80 | |
| Water Temp. Range (±3) | ℃ | Radiator:30-80 | Radiator:30-80 | Radiator:30-80 | ||
| Max. Water Pressure | MPa | 0.3 | 0.3 | 0.3 | ||
| Expansion Tank Capacity | L | 6 | 6 | 6 | ||
| Preset Pressure,Expansion Tank | MPa | 0.1 | 0.1 | 0.1 | ||
| Water Heating | Rated Water Production ^t=30k | L/Min | 7.1 | 9.21 | 11.18 | |
| Water Temp. Range(±3) | ℃ | 30-60 | 30-60 | 30-60 | ||
| Water Pressure Range | MPa | 0.03-0.6 | 0.03-0.6 | 0.03-0.6 | ||
| Min. Hot Water Flow | L/Min | 3 | 3 | 3 | ||
| Water Flow Limit | L/Min | 7.3 | 9 | 10 | ||
| Power Supply | V/Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | ||
| Rated Power | W | 105 | 105 | 105 | ||
| Insulation Grade | G | Ⅰ | Ⅰ | Ⅰ | ||
| Protection Grade | G | IPX4 | IPX4 | IPX4 | ||
| Pipe Connection | Gas Inlet | mm | G3/4" | G3/4" | G3/4" | |
| CHW Inlet/Outlet | mm | G3/4" | G3/4" | G3/4" | ||
| DHW Inlet/Outlet | mm | G1/2" | G1/2" | G1/2" | ||
| Air Input/Exhaust Duct | mm | φ100/φ60 | φ100/φ60 | φ100/φ60 | ||
| Pump Lift | M | 5 | 5 | 5 | ||
| Dimension(L*W*H) | mm | 740*400*255 | 740*400*295 | 740*400*295 | ||
| Packing | mm | 830*480*355 | 830*480*390 | 830*480*390 | ||
| Loading qty (20GP/40HQ) | pcs | 200/490 | 165/430 | 165/430 | ||
-
Packing : 5 layer carton box + Export standard foam + Strong polythene bag
( Normal box and color gift box optional ; Special wooden packing optional )
|
Eagleon Home Appliance Co., Ltd. is a manufacturer of Gas Oven, Gas Stove, Induction Cooker, Range Hood, Water Heater,ect.and more than 70% of the spare parts applied on each set of our product.
Besides that, we also welcome your OEM & ODM orders and provide CKD/SKD solutions for saving your shipment space.
Our goods are widely used in many countries such as Brazil, Switzerland, Germany, Ukraine, Korea, India, Pakistan, UAE, Iran and Vietnam, etc. with stylish design, better quality and professional after-sale service. |
|
|
As we are a direct supplier, our products are offered with fair prices and no middleman margins during the business transaction. We will help you make the best profits.
EAGLEON is looking forward to the opportunity for a long lasting business relationshipwith you. |
Q1. What goods does your factory made ?
We can produce kitchen appliance such as : GAS OVEN .GAS STOVE .INDUCTION COOKER .RANGE HOOD .WATER HEATER ...
Q2. Where is your main market ?
Our main Market are Middle East ,Europe, Russia, South America, Africa and so on.
Q3. Do you accept personal models ?
Yes, before producing ,please send us sample or drawing & data.
Q4. Can we mix goods in 20ft container?
Sure ,our MOQ is 100 pcs.
Q5. Can I just purchase spare parts ?
Yes ,SKD/CKD/CBU/CKD are available.
Q6. What is your payment term?
30%TT deposit in advance, 70% balance before shipment or L/C.
