Home > Manufacturing & Processing Machinery > Petroleum Equipment & Machinery > Pumping Unit > API DOUBLE HORSE HEAD PUMPING

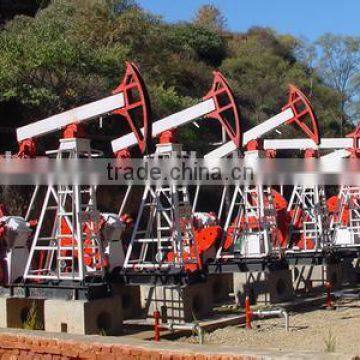

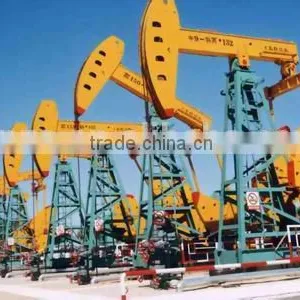

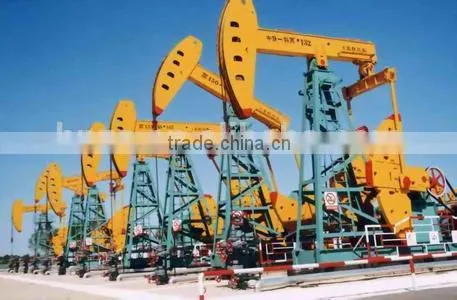

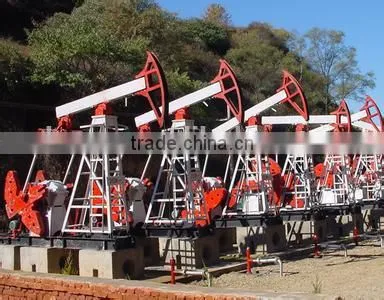

API DOUBLE HORSE HEAD PUMPING

API DOUBLE HORSE HEAD PUMPING thumbnail-3

US$ 5,000 - 50,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Henan, China

Certification:

API 11E 0065

Contact Supplier Request Quote Chat Now

Puyang Zhongshi Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao /tianjin port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Henan, China

Certification API 11E 0065

Warranty 18 minths

After-sales Service Provided Engineers available to service machinery overseas

Product Description

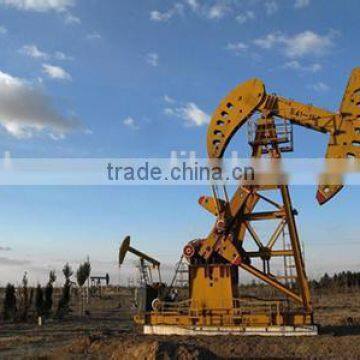

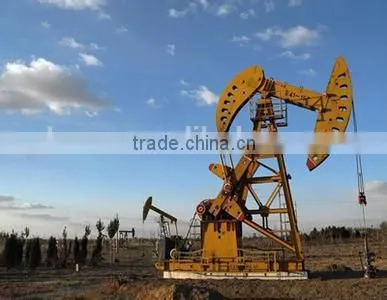

Double Horse Head Pumping Unit is China national petroleum corporation and the national key scientific and technological achievements to promote projects. Is a kind of long stroke and low speed of energy-saving products, suitable for medium and low viscosity crude oil and high water cut crude oil production.
This machine adopts variable diameter circular arc shape of beam after the arm, adopt flexible connection between beam and beam structure, not only reserve the advantages of the conventional beam pumping unit, also has a long stroke, low dynamic load, torque fluctuation is small, high efficiency, low energy consumption, stable work, easy start, etc. The machine with the same model, compared to conventional beam pumping unit stroke increases about 70%, reduce energy consumption of 20 ~ 30%, installed power lower by about 50%.
Double Horse Head Pumping Unit production strictly in accordance with API Spec 11 e or Q/SL1361-2002 standards

Main Parameters

No.	Type	Rated Capacity kN	Stroke Length m	Frequency of Stroke rpm	Reducer Rated Torque kN.m
1	CYJS3-1.5-9HB	30	1.5/1.2/0.9	6/9/12	9
2	CYJS4-1.5-9HB	40	1.5/1.2/0.9	6/9/12	9
3	CYJS5-1.8-13HB	50	1.8/1.5/1.2	6/9/12	13
4	CYJS5-2.5-18HB	50	2.5/2.0/1.5	6/9/12	18
5	CYJS6-2.5-26HB	60	2.5/2.0/1.5	6/9/12	26
6	CYJS8-2.5-26HB	80	2.5/2.0/1.5	6/9/12	26
7	CYJS8-3-37HB	80	3/2.5/2.0	6/9/12	37
8	CYJS10-5-53HB	100	3/2.5/2.0	4/5/6	53
9	CYJS12-4.2-53HB	120	4.2/3.5/2.8	4/5/6	53
10	CYS14-4.8-73HB	140	4.8/3.9/3.1	4/5/6	73

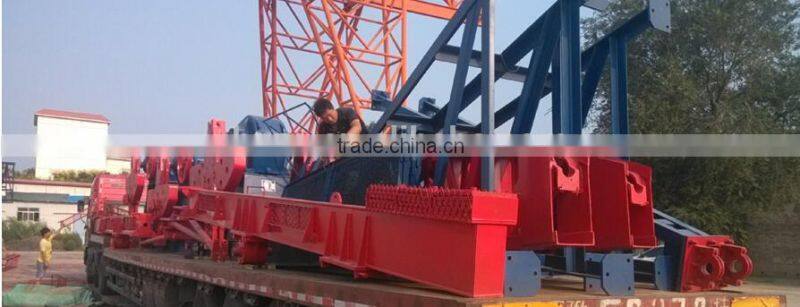

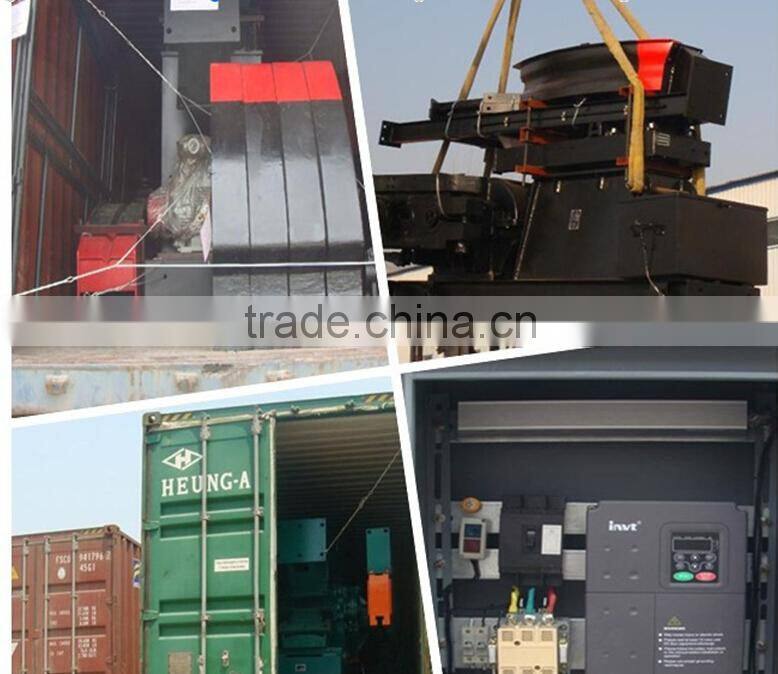

Packaging & Shipping

Company Information

The predecessor of Henan Puyang Zhongshi Group Co.,Ltd. was the 5th Machine Repairing Factory of Puyang Zhongyuan Oil field, Sinopec Corp. In 1997, after being restructured according to the modern corporate system, the factory was named Puyang Zhongshi Group Co.,Ltd.

With registered capital of 60,840,000 yuan, Puyang Zhongshi Group is composed of 9 subsidiaries, including 8 manufacturers and 1 trade company. Zhongshi Group covers an area of 200,000 sq.m, including workshop area of 50,000 sq.m. Various kinds of production equipment values 38,600,000 yuan. It has a strong mechanical processing capability.

Our leading products are pumping unit , wellhead (X-mas tree), tubing pump & sucker rod pump, cementing accessories, down-hole tools,casing centralizer, drilling solid control series,float collar, pressure vessel ,camping house, air cannon, belt feeder ,float shoe and so on. They are mainly supplied to Central Asia, Southeast Asia, Africa and Middle East and many other countries.

Zhongshi Group has been the Tier One internet service provider of Sinopec. We passed ISO9001 quality management system certification and got approved to use API monograms on its oil machineries. So far, we have attained API 5CT, API 10D, API 11AX, API 11E and more are applying for.

With strong technical backup, reliable product quality, advanced marketing regime and good service system, this company wins popularity and recognition of vast consumers home and abroad.
