Specifications

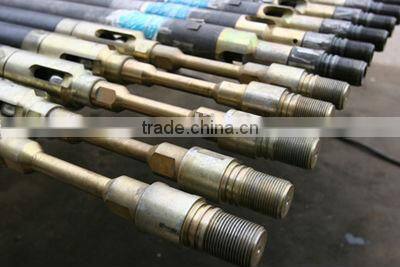

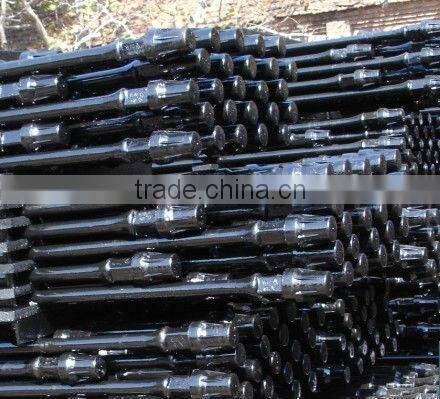

Sucker Rod1.Size:3/4-1-1/8"
2.Grade:C,D,HL,K
3.Coupling:T,SH/FS
4.Length:2,4,6,8,10,25FT
specifications:
sucker rod/ drill sucker rod
Technology parameter
| Size | Rod D.(in) | Thread D.(in) | Length of pin(mm) | Length of wrench(mm) | Width of Wrench (mm) | Length of rod(ft) |
| 5/8 | 5/8 | 15/16 | 31.75 | ≥ 31.8 | 22.20 | 2 / 4 /6 / 8 /10/25/30 |
| 3/4 | 3/4 | 1-1/16 | 36.50 | ≥ 31.8 | 25.40 | 2 / 4 /6 / 8 /10/25/30 |
| 7/8 | 7/8 | 1-3/16 | 41.28 | ≥ 31.8 | 25.40 | 2 / 4 /6 / 8 /10/25/30 |
1 |
1 | 1-3/8 | 47.63 | ≥38.1 | 33.30 | 2 / 4 /6 / 8 /10/25/30 |
| 1-1/8 | 1-1/8 | 1-9/16 | 53.98 | ≥41.3 | 38.10 | 2 / 4 /6 / 8 /10/25/30 |
why choose us
1. Description :
Sucker rod is one of the important equipment in oil field. It is among our leading products absorbing technical essence from home and abroad in accordance with API SPEC 11B, SY/T5029, applying the advanced technology in market and special material developed and anti-corrosion sucker rod, cooperating with international leading manufacturer to produce several sorts of sucker rod.
2. Features:
♦ Grade C sucker rod is made from fine carbon steel. It is featured by mid-strength, good plasticity, toughness, corrosion resistance. It is suitable for sour medium environment where it is not susceptible to sulphuric stress cracking.
♦ Grade D sucker rod is made from fine alloy steel, featured by high strength, better plasticity and long service life after heat treatment. This product is suitable for no-corrosion or light-corrosion environment oil-well widely.
♦ Grade HL and HY sucker rods are super-high strength sucker rod, having the same size and main parameter as grade D sucker rod, but their strength is capable to reach 966~1195Mpa. Grade HL, HY sucker rods are suitable for the deep oil-well or big-pump capacity oil-well.
♦ And grade K, KD and KH sucker rod are made from fine Cr-Ni-Mo alloy steel containing different amount of Ni. They possess more powerful anti-corrosion function. The products are suitable for strong corrosion oil-well, with depth of shallow, middle and deep respectively.
3. Oilfield Operating principle:
4. Welcome to our factory!!!
5. Our product range:
♦ pumping unit/ tubing pump/ sucker rod/ X-mas tree/ casing head/ casing pipe/ tubing pipe/ drill pipe/ polished rod/ coupling
♦ production packer/ water flow regulator/ tubing anchor/ safety joint/ screen pipe/ sand screen
♦ float collar/ float shoe/ casing centraliser/ stop collar/ cementing head/ stage collar/ cement basket/ cementing plug
♦ air cannon/ diesel fuel tank/ water jacket heater/ multifunction pressure vessel/ air tank
♦ mud tank/ shale shaker/ vacuum degasser/ desilter/ desander/ gas-luiquid separater/ mud gun/ centrifuge/ sand pump/ slurry agitator/ shear pump/ cyclone mixing device
♦ container house/ color steel sandwich panel house
♦ belt feeder
