Help CenterAPI Standard Drilling Polished Rod
Related Products
Specifications

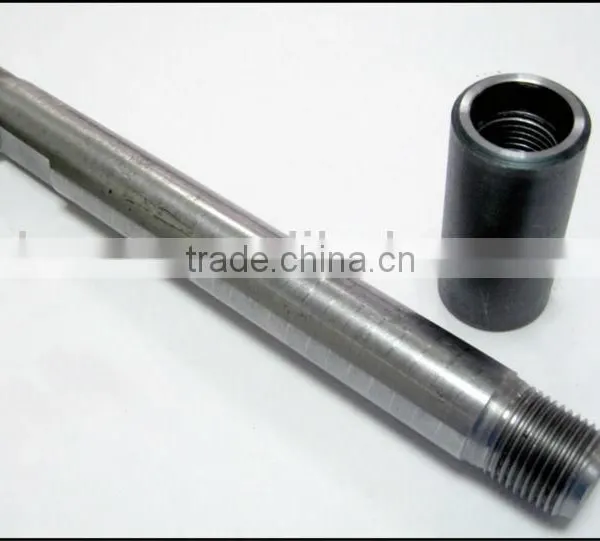

API standard drilling polished rod1) Material: Carbon Steel
2) Standard: API Spec 11B
3) Grade: H,D
specifications:
polished rod/ api polished rod/ drilling polished rod for oilfield
Technology parameter
Name |
Size |
Grade |
Mechanical properties |
Length (m)
|
|||
|
Rel (MPa) |
Rm (MPa) |
A (%) |
Z (%) |
||||
Polished rod-upset on one end |
φ25 φ29 φ32 φ38 |
H |
≥795 |
965~1195 |
≥ 10 |
≥ 45 |
6.00 8.00 9.50 10.00 |
D |
≥ 590 |
795~965 |
≥ 10 |
≥ 50 |
|||
Polished rod-normal type |
φ25 φ29 φ32 φ38 |
H |
≥795 |
965~1195 |
≥ 10 |
≥ 45 |
|
D |
≥ 590 |
795~965 |
≥ 10 |
≥ 50 |
|||
Polished rod-metal spray |
φ32 φ38 |
H |
≥795 |
965~1195 |
≥ 10 |
≥ 45 |
6.00 8.00 9.14 |
why choose us
1. Description :
2. Features:
♦ They are all designed in accordance with API Spec 11B
♦ They are all manufactured through cold-drawing, rolled threading, and surface grinding, etc.
♦ It has high strength, good toughness, smooth surface and long lifetime etc.
3. Welcome to our factory!!!
4. Our product range:
♦ pumping unit/ tubing pump/ sucker rod/ X-mas tree/ casing head/ casing pipe/ tubing pipe/ drill pipe/ polished rod/ coupling
♦ production packer/ water flow regulator/ tubing anchor/ safety joint/ screen pipe/ sand screen
♦ float collar/ float shoe/ casing centraliser/ stop collar/ cementing head/ stage collar/ cement basket/ cementing plug
♦ air cannon/ diesel fuel tank/ water jacket heater/ multifunction pressure vessel/ air tank
♦ mud tank/ shale shaker/ vacuum degasser/ desilter/ desander/ gas-luiquid separater/ mud gun/ centrifuge/ sand pump/ slurry agitator/ shear pump/ cyclone mixing device
♦ container house/ color steel sandwich panel house
♦ belt feeder
5. API certificate:
We are on contact now, all you have to do is sending me a call or an enquiry, you will get reply in 12 hours!
