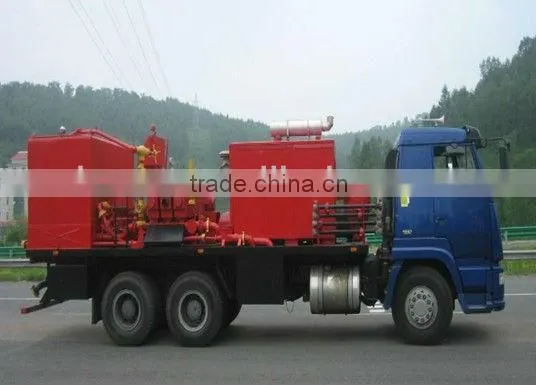

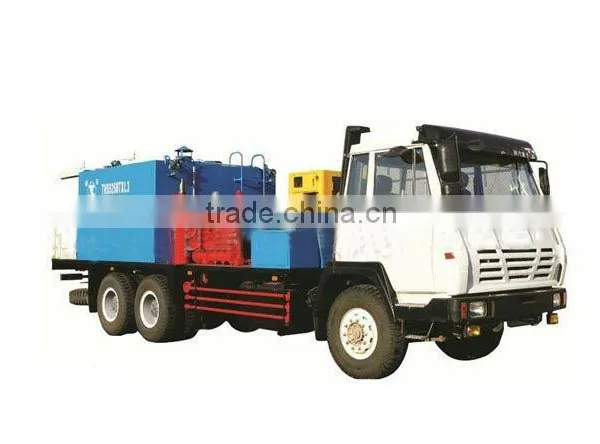

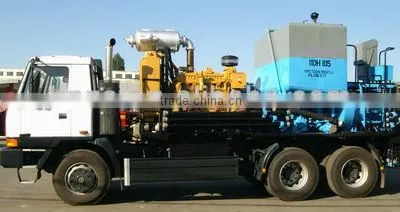

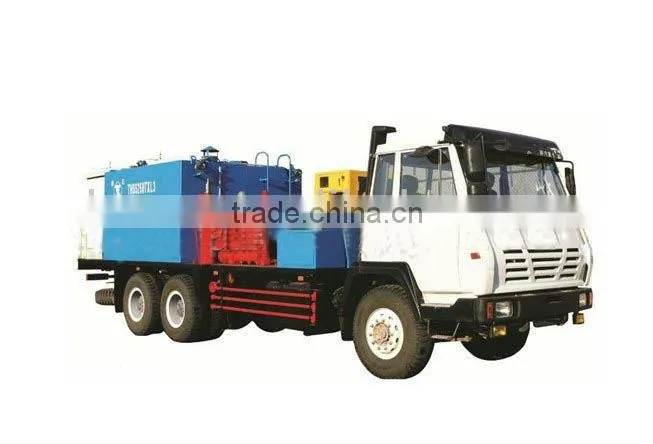

Help CenterWell Flushing & Dewaxing Unit
Related Products
Specifications
Well Flushing & Dewaxing Unit1. ISO, 9001-2000
2. excellent service, fast reply
3. best quality
specifications:
Well Flushing
Technology parameter
1. The Max. lifting load : 10112lbs(in Min. drum spooling diameter).
2. The Max. operation depth of Recovery : 8200ft (2500m)
3. Depth of oil bailer submergence: 350m
4. Operation speed: 11.25ft/s(3.43m/s )(in Max. drum spooling diameter)
4ft /s (1.22m/s )(in Min. drum spooling diameter)
5. Derrick height: 45.93ft ( 14m) (from ground to bottom of crown block)
6. The Max. load :26966 IBS
7. Dip angle : 5°
8. Diameter of brake rim×width: φ34.25inch×7.48inch
9. Wrap angle of brake strap: 345°
10. Engine power: 340HP/2200r/min
11. Working pressure of hydraulic system: 12Mpa
12. Model of master hydraulic pump: CB-F40C-FL
13. Working pressure of pneumatic system: 0.8Mpa
14. Volume of air drum : 98L
15.Overall Dimension (L×B×H)ft : 46.57×8.2×12.79 (move state)
16.Gross Weight: 52910lbs
why choose us
1. Description :
This is the best oil bailing and recovery truck you can find on Chinese market. It is mainly used in oil pumping operation of margin oil well and stripper oil well ,it is applicable in oil pumping operation with well depth within 2500m, it is also can be used in dredging ,through well operations and so on.
2. Welcome to our factory!!!
3. Our product range:
♦ pumping unit/ tubing pump/ sucker rod/ X-mas tree/ casing head/ casing pipe/ tubing pipe/ drill pipe/ polished rod/ coupling
♦ production packer/ water flow regulator/ tubing anchor/ safety joint/ screen pipe/ sand screen
♦ float collar/ float shoe/ casing centraliser/ stop collar/ cementing head/ stage collar/ cement basket/ cementing plug
♦ air cannon/ diesel fuel tank/ water jacket heater/ multifunction pressure vessel/ air tank
♦ mud tank/ shale shaker/ vacuum degasser/ desilter/ desander/ gas-luiquid separater/ mud gun/ centrifuge/ sand pump/ slurry agitator/ shear pump/ cyclone mixing device
♦ container house/ color steel sandwich panel house
♦ belt feeder
We are on contact now, all you have to do is sending me an enquiry or a call, you will get reply in 12 hours!
Sharpay's here waiting for you!
My skype: sharpay0308
TEL: 0086-151-3628-6271
